High Quality Cheap Mast Lifting for Sale

Product Description

High quality cheap mast lifting for sale
Product Description

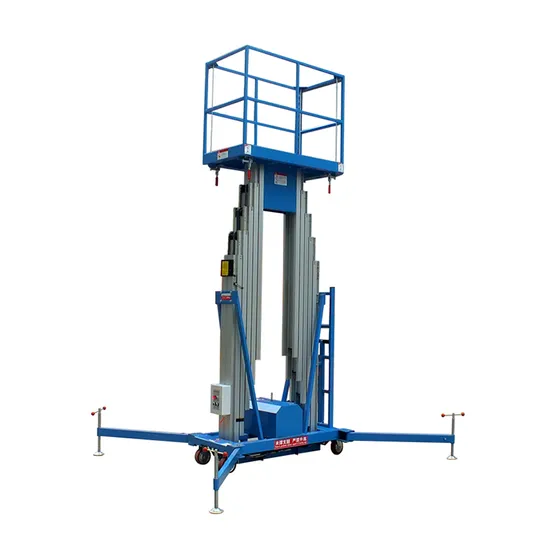

Mast aluminum lift:
1.Sucker leveling legs and level indicators make sure solid and stable ground support.
2.The special process ensures that the offset angle of the mast is very small, running smoother and safer.
3.Equipped with emergency stop device, users could stop lifting when the equipment is faulty.
4.Equipped with an emergency down device, the platform could be down to the lowest position when the lift losing power.
5.The maximum pressure capacity of the fuel pipe is greater than the maximum output pressure of the hydraulic system to prevent the oil pipe from bursting.
6.The hydraulic system is equipped with the overload protection device to prevent excessive pressure and to avoid the danger of a sudden drop in the platform after the pipe bursts.
7.The electric control module is equipped with leakage protection to avoid the danger of leakage due to equipment leakage.

	Platform height(m)	Platform working height(m)	Rated load(Kg)	Platform size (mm)	Voltage (V/HZ)	Power (Kw)	Duality (kg)	Dimensions (mm)
Single mast	4	5.7	100	600*600	AC220/50HZ	0.75	250	1280*800*1750
	8	9.7	100	600*600	AC220/50HZ	0.75	300	1280*800*1980
	10	11.7	100	600*600	AC220/50HZ	1.1	340	1360*900*2100
Double mast	4	5.7	200	1100*600	AC220/50HZ	1.5	380	1300*900*1750
	8	9.7	200	1150*600	AC220/50HZ	1.5	550	1360*900*2000
	10	11.7	200	1350*600	AC220/50HZ	1.5	600	1560*970*1900
	12	13.7	200	1450*600	AC220/50HZ	1.5	700	1.66*0.97*2000
	14	15.7	200	1450*600	AC220/50HZ	1.5	800	1660*1100*2350
Three mast	12	13.7	200	1570*900	AC220/50HZ	2.2	900	2100*1250*2000
	14	15.7	200	1570*900	AC220/50HZ	2.2	1000	2100*1250*2350
	16	17.7	200	1570*900	AC220/50HZ	2.2	1000	2100*1250*2650

Packaging & Shipping
1. Packaging:
Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
Company Information
Our Services
1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
