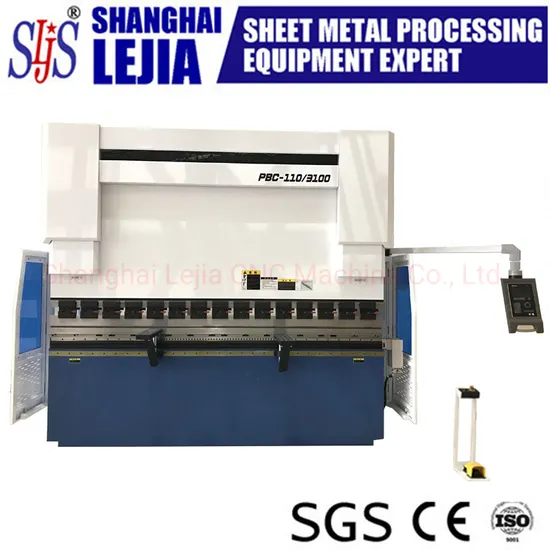

One-Way Servo Pump CNC Press Brake Bending Machine Pbc-160t/4100mm

Product Description

Product Description

Name:CNC Press brake

Model:PBC-160/4100-4S

Technical specification
No.	Name		Specification	Unit
			PBC-160/4100-4S
1	Normal pressure		1600	kN
2	Length of worktable		4100	mm
3	Thickness of worktable		80	mm
4	Distance between uprights		3600	mm
5	Ram Y axis stroke		265	mm
6	Die setting height		585	mm
7	Throat depth		410	mm
8	CNC axis		4S(Y1,Y2,X,R,S)
9	Ram Y axis speed	Approach	160	mm/s
		Working	14	mm/s
		Return	150	mm/s
10	Back gauge X axis	Stroke	500
		sheet metal size	0-950	mm
		Max.speed	400	mm/s
		Repeat positioning accuracy	0.03	mm
11	Ram repeat positioning accuracy		0.01	mm
11	Overall dimension	L	4630	mm
		W	1600	mm
		H	3025	mm
12	Power supply		12	kW
13	Weight		12300	kg

Y1,Y2---Control ram movement
X---Control back gauge front and rear movement
R-- Control back gauge up and down movement
S--- WILA mechanical compensation crowning system

Machine structure
1,Outline feature
	New rigid design, finite element optimization analysis, to minimize the impact of bending deformation on the quality of the workpiece.
	The use of high frequency response proportional valve, high dynamic response performance to ensure that the machine at high speed 200mm / s stable operation, while greatly enhance the Y1 and Y2 running synchronization accuracy, and to achieve high bending processing efficiency.
The use of differential pressure balance system, the hydraulic system overflow in advance control, effective control of the hydraulic system temperature rise, the hydraulic system temperature rise than the conventional pressureless balance system of the bending machine reduced by about 10 ºC, the oil temperature decreased hydraulic failure, Long-term use of machine tools to stabilize. High dynamic response hydraulic compensation system, not only to ensure the accuracy of conventional bending the accuracy of the workpiece, and the accuracy of sheet bending can also be effectively controlled. One-way servo pump control technology, not only can achieve more than 40% energy saving, hydraulic oil system can also be reduced to extend the life of hydraulic components, sealing components, reducing the frequency of replacement of hydraulic oil, reducing the cost of customers And maintenance costs.
2,Frame
Complete steel plate welded structure, good anti-vibration. Taking off inner-stress by tempering, good stability Machine body is machined with once clamping for all machining surface from Spain five faces machining center, which assure parallelism and verticality between/among surface of the machine body. Outfit with "C" is at throat, as deformation compensation on throat, directly measuring the distance between upper tool and low die, assuring the precision of work piece.
3,Ram strecture
Upper stroke design for bending, low noise, stable operating situation slider thickening, widening, bending deformation will be reduced to a minimum; unique dual-track structure (as shown below), slider running more smoothly; universal mold mounting surface, can meet the maximum clamping requirements of the mold; The lower part of the slider is equipped with scale, metric and imperial double scale display, easy for the operator to change the tools and find the center for bending.
4,Hydraulic system
Using the most advanced closed-loop electro-hydraulic servo synchronization control system, and integrated high-frequency ring valve control technology, can achieve high-speed, high precision, high efficiency performance; Hydraulic control system sets imported Germany HOERBIGER company, with proportional valve pressure balance function, reduce oil temperature, improve the stability of the hydraulic system; Y1, Y2 can be programmed separately, can work in the partial load state, but also cone-shaped bending; bottom dead center has a pressure time, programmable, to ensure that the accuracy of different parts; has a slow return control function, the operator can better control the workpiece; Imported linear optical reader,guiding system,positioning system and hydraulic balancing system with high precision, which all can permit the processing work piece of full length or with eccentric.

	Special treatment about the cylinder--rough treatment--hardening--inner grinding--inner Float boring, make the inner side of the cylinder with high precision and wear resistant Pipe fitting and seals of hydraulic system is SKF brand which imported from Austria, good quality and high performance Hydraulic connector are imported from Europe and America;,with good quality Overload overflow protection is outfitted to hydraulic system, which can assure no leakage. Oil level can be read or seen directly Being able to work continuously under rated load and hydraulic system shall have no any leakage, stable working, high precision positioning
5,Back gauge
	Good for work piece needing multiple steps of bending with high precision requirement The speed of back gauge is fastest,and high precision. X,R axis of back gauge is moved with ball screw, guided by linear guide, and driven by digital AC servo-motor. (Optional) Z1, Z2 axis two blocks move left and right along the linear guide automatically, easy to operate, high precision; Back gauge beam is tank structure,with good enough mechanical strength and rigidity Particular finger-stop design, enlarge the range of back gauge.
6,Electrical system
Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability Equip with movable food panel,convenient operating,emergency stop
7,WILA Mechanical Crowning Compensation
WILLA mechanical crowning system integrated in the table,the high-precision crowning system is automatic adjustable via CNC controller.Point-focal adjustment options with precise basic setting for accurate bending angels
8. CNC control system standard is DELEM DA58 (2D graphic display and 2D programming)
optional: DELEM 66T .
9. Others:
Standard have step-adjusted front support, with a rotating function, to avoid the workpiece when bending (see below) Foot switch, the bottom plate equipped with wheel, move more convenient
10. Lasersafe Safety Guard: LaszerSafe safe protection LG-005

10. Lasersafe Safety Guard: LaszerSafe safe protection LG-005

List of main commercial components

No.	Name	Supplier
1	CNC controller	DELEM from Holland
2	Servo motor	Delta
3	Servo drive	Delta
4	Pump servo motor	PHASE from Italy
5	Hydraulic system	HOERBIGER,Germany
6	High pressure gear pump	ECKERLE,Germany
7	High pressure Filter	HYDAC,Germany
8	Optical Linear scale	,Italy
9	Slide-in oil pipe joint	VOSS,Germany
10	Linear guide	HIWIN/PMI,Taiwan
	Ball screw
11	Seals of oil cylinder	SKF,Swizerlands
12	Proximity switch	CONTRINEX,Swizerlands
13	Single/double air switch	SIEMENS,Germany
14	AC contactor
15	Button	SCHNEIDER,France
16	Terminal	WAGO/Phoenix,Germany
17	Oil tube connector	EMB,Germany

Optional parts:
