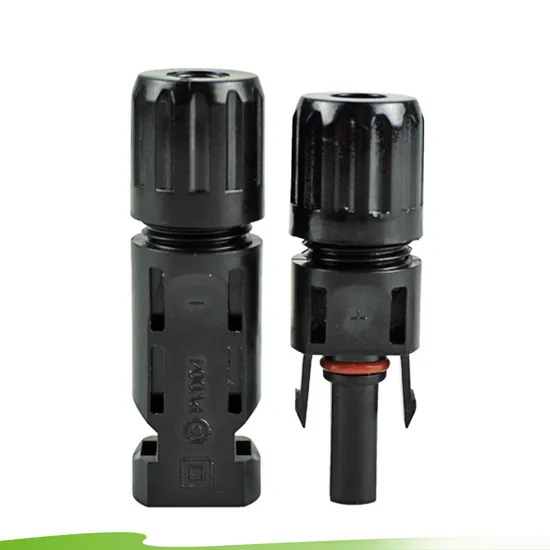

Gada IP67 Waterproof 1000VDC 30A PV Solar Connector Male Female Mount Plug for Solar Panel

Product Description

Product DescriptionThe existence of MC4 photovoltaic connectors has become very simple for crucial parts such as the connection in photovoltaic power plants, core combiner boxes, and inverters.
Photovoltaic systems operate in extreme temperature changes of extreme heat and cold for a long time. The MC4 connector must be able to maintain stable operating performance in such harsh environments. Not only should it be resistant to high temperatures and moisture, but it should also achieve safety protection on the touch and high current carrying capacity when current passes through. In addition to the above requirements, low contact resistance is also a relatively important consideration.
MC is the abbreviation for Multi Contact, while 4 is the size standard for the diameter of the metal core. They are combined together, which is our commonly used MC4 photovoltaic linker, and it completely achieved true plug and play with its debut in 2002. With the continuous updates of technology, the entire MC4 series is currently very mature and can meet the needs of users at different levels.

Technical data
Type	GDPV004/GDPV005/TX/YX
Test standards	IEC 62852
Rated voltage Ue	1000/1500V DC
Protection Degree	IP67
Contact Resistance	≤0.5mΩ
Rated current	30A
Ambient Temperature	-40ºC~+85ºC
Flame Class	UL94 V-0

Detailed Photos
Thickened copper core
Copper galvanized material, open type core Waterproof rating IP67
Dustproof, waterproof, moistureproof, strong stability, High quality sealed waterproof ring
The product adopts high quality waterproof ring, waterproof and dustproof, waterproof grade IP67 PPO material
The product is made of PPO material, which is highly heat resistant, low combustible point, and Wear-resistant, durable, anti-corrosion and other features Double protection from electric shock
Can be closed and closed with load, double protection Operating ambient temperature
Low temperature shall not be lower than -45ºC High temperature shall not be higher than +85ºC
Certifications
Company Profile
ABOUT GANDIANCarrying the mission of "not letting down every share of electricity and letting electricity do its best", Gandian Lightning Protection Electrical Co., Ltd. emerged as the times require, and over 10 years have passed. Gandian Lightning Protection Electrical Co., Ltd. has developed into a professional lightning protection technology company that integrates product research and development, manufacturing, and overall electrical product solutions
Our company has a factory area of over 30000 square meters and currently employs over 200 people; Since its establishment, our company's spirit of pioneering and enterprising has continued. Our team has been committed to the development and improvement of new energy electrical products, as well as the updating and improvement of existing products.
Through continuous reform and innovation, the company develops its own brand, adheres to the path of technological innovation, and deeply understands that technology and innovation are the driving force for our sustainable development.
Our company attaches great importance to technological research and development, and strives to build an automated electrical equipment and digital production line base that enhances traditional industries through automation, gathering a highly skilled technical team; Committed to building a professional electrical laboratory. Ensuring the stability and innovation of Gandian products. Manufacturing Technique
Professional Electrical Equipment LaboratoryOur company attaches great importance to technological research and development, and strives to build an automated electrical equipment and digital production line base that enhances traditional industries through automation, gathering a highly skilled technical team; Committed to building a professional lightning protection electrical laboratory. Ensuring the stability and innovation of Gandian products.
---Lightning Impact Test Room: Conduct various waveform impact tests on lightning protection devices, such as 8/20, 10/350, and 1.2/50us;
---SPD safety laboratory: Conduct thermal stability and TOV fault tests, with a test current of 1A-300A;
---Environmental laboratory: salt spray, vibration, high and low temperature tests;
---Physical and chemical laboratory: material metallographic analysis, spectral analysis, RoHs analysis;
---Low voltage test room: leakage marking index, withstand voltage test, flame retardant level;
---Mechanics laboratory: pendulum impact, tensile force, pressure, torsion, hardness, and transportation vibration tests.
Specialized production process technologyOur company independently develops multiple advanced automatic production and processing lines, plastic injection molding lines,hardware stamping lines, and multiple assembly lines; Integrating automatic equipment such as automatic gluing, automatic soldering, automatic film pressing, transfer printing, laser marking, automatic detection and uploading of data, and automatic sealing and packaging into one; Form a fully automated production line, create a process technology that conforms to Gandian Lightning Protection's own technology, lean production management, and rigorous craftsmanship spirit, which runs through everylink of our production and manufacturing. Carefully control every production process, strictly implement every standard specification, and achieve controllable and traceable quality of each product. Recommend Products
