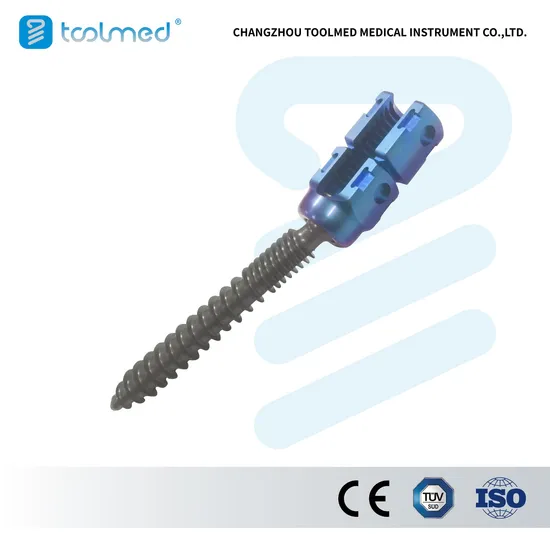

Reduction Polyaxial Pedicle Screw, Atlas™ 5.5 Posterior Thoracolumbar Spinal System, Titanium, Orthopedic Surgical Trauma Implant for Spine Surgery

Product Description

Reduction Polyaxial Pedicle Screw, Atlas™ 5.5 Posterior Thoracolumbar Spinal System, Titanium,
Orthopedic Surgical Trauma Implant for Spine Surgery
Features & Benefits :
1. StarDrive recess provides an improved torque transmission to the set screw
2. Extended tabs with notches on both sides, facilitatingthe tab removaland providing break-off surface
3. Duallead thread form foroptimized bone purchase
4. The screw tip facilitates the insertion into the pedicle and realizes the bicortical fixation.
5. The variable angle ofpolyaxial pedicle screwis 44°, to facilitate theplacement of pediclescrew and rod.
6. Low profile screw headmakes the base wel -stackedto reduce the stimulatin andharm to the body.
7. Different screw size withdifferent colors for easyidentifying duringoperation.
Size Description

Product Name	Specification	Material
ATLAS™ 5.5 Polyaxial Pedicle Screw	4.5x30/35/40/45 mm	T
	5.0x30/35/40/45/50/55 mm	T
	5.5x30/35/40/45/50/55 mm	T
	6.0x35/40/45/50/55 mm	T
	6.5x35/40/45/50/55 mm	T
	7.0x35/40/45/50 mm	T
ATLAS™ 5.5 Reduction Polyaxial Pedicle Screw	5.0x30/35/40/45 mm	T
	5.5x35/40/45/50 mm	T
	6.0x35/40/45/50 mm	T
	6.5x35/40/45/50 mm	T
	7.0x35/40/45/50 mm	T
ATLAS™ 5.5 Monoaxial Pedicle Screw	5.0x30/35/40/45 mm	T
	5.5x35/40/45/50 mm	T
	6.0x35/40/45/50 mm	T
	6.5x35/40/45/50 mm	T
	7.0x35/40/45/50 mm	T
ATLAS™ 5.5 Reduction Monoaxial Pedicle Screw	5.0x30/35/40/45 mm	T
	5.5x35/40/45/50 mm	T
	6.0x35/40/45/50 mm	T
	6.5x35/40/45/50 mm	T
	7.0x35/40/45/50 mm	T
ATLAS™ 5.5 Crosslink, II	5.5x60/70/80 mm	T
ATLAS™ 5.5mm Rod, Straight	5.5x50/60/70/80/90/100/110/120/130/140/150/160 180/200/210/220/240/250/260/300/350/400/500 mm	T
ATLAS™ 5.5 Set Screw	5.5	T
