ME906E 4G LTE module good price

Product Description

Product Description

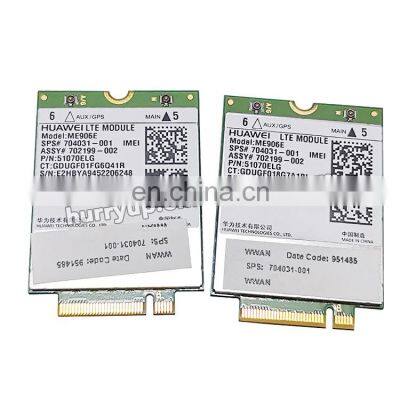

DescriptionGeneral Features ME906E 4G Wireless Module is a LTE module with NGFF interface, supporting LTE (FDD) B1/B2/B3/B5/B7/B8/B20, Penta-band DC-HSPA+/HSPA+/HSPA/WCDMA for Europe/Asia network coverage.It has low power consumption, support for Global Navigation Satellite System (GNSS, GLONASS) and European carrier certifications enabling easier and more flexible design and integration into end devices. * GPRS/EDGE: Multi-slot Class 12 * WCDMA PS: UL (384 kbps)/ DL (384 kbps) * DC-HSPA+ :UL (5.76 Mbps)/DL (42 Mbps) * LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3) Specifications: * LTE (FDD) B1/B2/B3/B5/B7/B8/B20 * Quad-band DC-HSPA+/HSPA+/HSPA/UMTS 2100/1900/900/850 MHz * Quad-band EDGE/ GPRS/GSM 1900/1800/900/850 MHz * GNSS GPS L1: 1575.42 MHz Glonass L1: 1602 MHz * Receive diversity DC-HSPA+/HSPA+/HSPA/UMTS 2100/1900/900/850 MHz MIMO HSPA+/DC-HSPA+ DL 2*2 MIMO LTE: DL 2*2 MIMO * Max. transmitter power WCDMA/HSPA+:+24dBm (Power Class 3)GSM/GPRS 1900MHz/1800MHz: +30dBm (Power Class 1)GSM/GPRS 900M/850MHz: +33dBm (Power Class 4)EDGE 1900MHz/1800MHz: +26dBm (Power Class E2)EDGE 900M/850MHz: +27dBm (Power Class E2)LTE:Accorded with 3GPP TS 36.101 R8 Class 3(23dBm) * Control via AT commands 3GPP TS 27.007 and TS 27.005 extended AT command* SIM card supply voltage 1.8V/3.0 V UICC (SIM/UICC/UIM), ISIM supported* Supply voltage range 3.135V~4.4V (3.3 V recommended)* Temperature range Normal operation: -10°C to +55°CExtended operation: -20°C to +70°CStorage: -40°C to +85°C* Humidity: 5% - 95%* Dimensions: 42 mm x 30 mm x 2.3 mm* Weight: <6g* OS: Windows 7 / Windows 8 / Android 4.0Interfaces:* Antenna interfaces x 2* NGFF Socket 2- USB 2.0 interface high speed- Power supply- UICC interfaceApprovals & Certifications:* CE* FCC* GCF* RoHS Compliant/ Halogen free* Operator TA: Vodafone, Telefonica, Telstra, TMOAdditional Features:* GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass* SIM Hotswap* IPV6* BodySAR* Ultrabook feature support(ACT,QC, WiFi Offload , DPTF)* Tunable AntennaME096V:ME096JWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
