China Factory Price 23L Laboratory Specific Paper Pulping Machine
| US$3,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XD-23 380v
Cutter Material
Stainless Steel
Drive
Electric
Object
Paper Bamboo Fiber
Type
Flying Knife and Bottom Knife Polishing
Slurry Capacity
23L
Slurry Tank Capacity
45L
Quantity of Slurry
200g-700gabsolute Dry Pulp (Torn Into 25mm * 25mm
Fly to The Roller
Diameter * Length * 194mm * 155mm
Voltage
380V
Power
750W
External Dimensions
1410*460*1480mm
Water Source Condition
Both Intermittent and Continuous Water Sources Are
Weight
280kg
Accessory
Bath Roll Knives Strap Made of Stainless Steel
Transport Package
Export Wooden Box Packaging
Specification
1410*760*1480mm
Trademark
XINGDIAN
Origin
China
Packaging & Delivery
Package Size
141.00cm * 76.00cm * 148.00cm
Package Gross Weight
380.000kg
Product Description

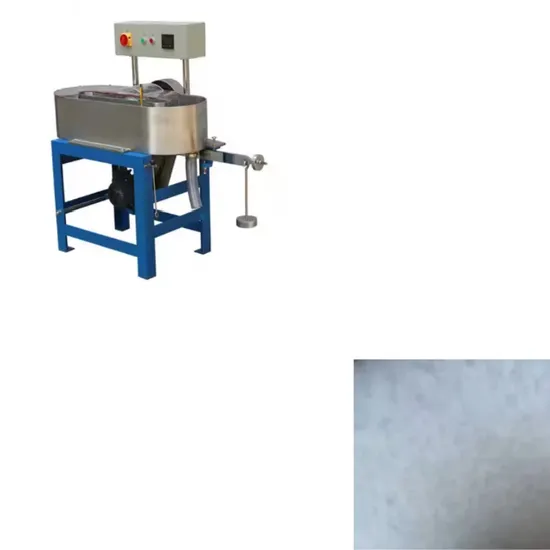

Product Description23 Liters Automatically Paper-making Valley beater
The 23 liter pulping machine cuts, damages, rubs, splits, moistens, and refines various textile fiber slurries through the mechanical action of the knife roller and bed plate. The pulping machine is widely used for pulping various plant fibers, synthetic fibers, coal textile fibers, and glass fibers This model can change the heavy thallium pressure, beating time, and automatically control the beating time to obtain different experimental results.
Principle: The pulp, which has been measured and has a specified concentration, is beaten between the flying blade and the bottom blade of the Valley beater. During the beating process, samples are taken at regular intervals and the free degree of the pulp is measured.
Standard pulping: Take 360 grams of dry pulp, soak it in 23 liters of water, tear it into small pieces of 25x25mm, pour it into a pulping basin, and test the pulp's free degree every 15 minutes (sulfite pulp) or 20 minutes (kraft pulp) until it meets the requirements. Product Parameters
| Model Number | XD-23 |
| Product name | beating engine |
| Quantity of slurry | 200g-700g dry pulp (torn into 25mm * 25mm small pieces) |
| knife drum | Diameter * Length * 194mm * 155mm |
| Advantage | Efficient and precise |
| power | 750w/380v |
| weight | 280kg |
