Factory Promotion 2t 5t 10t 3m 4m Customized Cargo Elevator Hydraulic Platform Freight Floor Fixed Scissor Lift Table

Product Description

Product Description

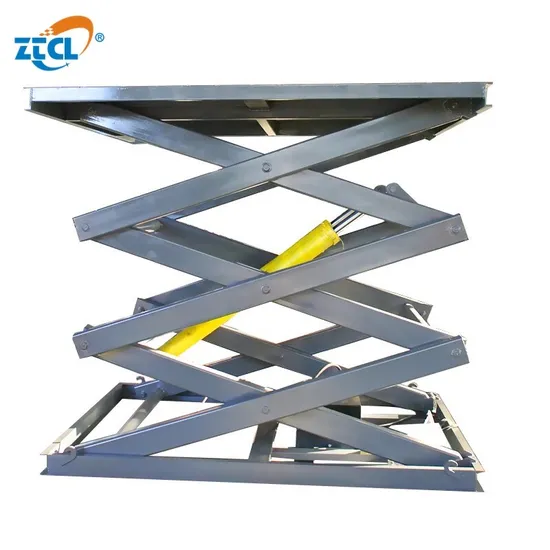

ZTCL Stationary hydraulic lift platforms is the specialist hydraulic lifting platform products for transporting goods between floors of a building. It is mainly used in upper and lower cargo transport between various working levels; the car lift in three-dimensional garage and underground garage storey in a building and so on.
Products Hydraulic System Settings the fall and overload protection device, each floor and lift both can set the operate buttons, can achieve more control.
The work surface can be set to operate buttons, multi-point control. Firm production structure, carrying capacity, stable lifting, easy maintenance and installation, it is the economical and practical ideal cargo transportation equipment which can alternative lift between the low floors.
According to the installation environment and use requirements of lifts, choose the different alternative configurations to achieve better using effect.
Product Parameters

Model	Lift height(M)	Lading capcity(KG	Platform size(mm)	Power(kw)
ZTSJG0.5-3	3.0	500	2000*1500	2.2
ZTSJG1.0-3.5	3.5	1000	2000*1500	3.0
ZTSJG2.0-4	4.0	2000	2000*1500	3.0
ZTSJG3.0-4.5	4.5	3000	2000*1500	3.0
ZTSJG0.5-7.5	7.5	500	1200*1200	1.5
ZTSJG1.0-7.5	7.5	1000	1800*1400	2.2
ZTSJG2.0-7.5	7.5	2000	2000*1500	3.0

Detailed Photos
Our Advantages
1. Surface treatment: shot blasting paint, with anti-corrosion function.
2. The high quality pump station makes the scissor lift platform lift very smooth.
3.Anti-pinch scissors design; The kingpin roller adopts self-lubricating design to prolong the service life.
4. Heavy duty cylinder with drainage system and check valve to prevent lifting platform from falling in case of hose rupture.
5. Pressure reducing valve to prevent overload operation; Flow control valve, adjustable descent speed.
6. Aluminum safety sensors are installed under the platform to prevent it from being caught when falling.
7. Comply with American standard ANSI/ASME and European standard EN1570.
8. Safety gap between scissors to prevent damage during operation.
9. The simple structure makes it easier to operate and maintain.
10. Park at the exact location.
Safely Device:Reliable
1.Overload protection : Hydraulic unit with overload protection device. If overload, the hydraulic station automatically relief pressure and stop running.
2.Emergency Stop : The lift can be stopped immediately in case of any emergency.
3.Emergency Lowering : The platform can be lowered down manually in case of power failure.
4.Explosion-proof valve: The hydraulic system is equipped with explosion-proof valves, which can prevent the sudden drop of the platform if the oil pipe breaks.
5.Safe sensor: When the platform declines, if it touch anything, it will be stopped, so ti can protect goods or operators
Product show
Customer feedback

Packaging & Shipping

FAQ
Q1. What about the delivery time?
Answer: It usually takes about 10 working days after we receive the deposit.
Q2. What kind of payment do you support?
Answer: T/T, L/C, West Union, T/T is usually.
Q3. How to proceed an order for the lift?
Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical.
Q4. How to transfer the lift machine?
Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container.
Q5. Is it OK to print my LOGO on the lift?
Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q6. How can I get the after-sales service?
Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.
