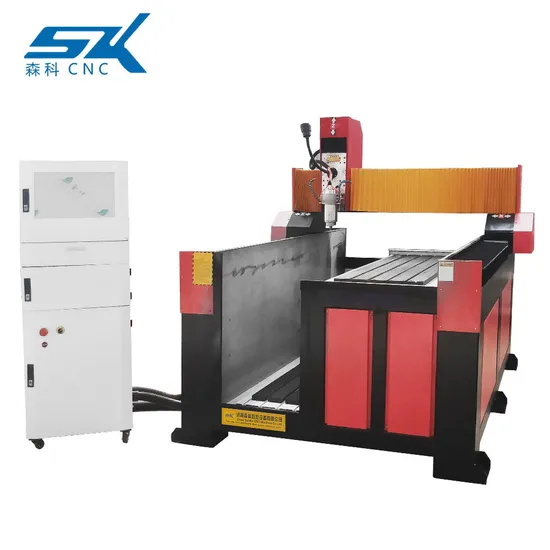

Automatic CNC Stone Engraving Quartz Granite Marble Slabs Cutting Edge Polishing CNC Router Machine Price for Stone Countertops Carving Engraver
Basic Info.
Model NO.
SKW-1325
Application Material
Marble Granite Stone
Automation
Automatic
Control
CNC
Motor Power
According to Machine
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, ISO, GOST, SONCAP, CCC, API, SGS
Current
AC
Application
Advertising, Stone Industry, Can Check Us
Customized
Customized
Name
Marble Engraving Machine
Item
OEM
Color
as Your Needs
Usage
Engraver Stone
Keys
Marble Stone
Spindle
Water Cooling Spindle
Spindle Power
Can Choose
Marketing Type
New Product 2020
Condition
New
Type
Marble Stone Cutter
Warranty Period
2 Years
Motor
Stepper Motor
Working Area
1300*2500mm
Weight
1400kgs
Terms
Can Choose
Transport Package
Standard Plywood
Specification
sks-1325single head
Trademark
SENKE
Origin
China
HS Code
8465990000
Production Capacity
200set/Month
Product Description
Automatic CNC Stone Engraving Quartz Granite Marble Slabs Cutting Edge Polishing CNC Router Machine Price for Stone Countertops Carving EngraverMachine Introduce
Machine parts
Optional Parts
Specification
| Model | SKS-9015 | SKS-1325 | Customized |
| Working area (X*Y*Z) | 900*1500*300mm | 1300*2500*300mm | According to Size |
| Body structure | Iron casted,strong enough for metals work | Iron casted,strong enough for metals work | Iron casted,strong enough for metals work |
| X, Y, Z Structure | Taiwan HIWIN square rails | Taiwan HIWIN square rails | Taiwan HIWIN square rails |
| X, Y Resolution | <0.03mm | <0.03mm | <0.03mm |
| Max Moving Speed | 18000mm/min | 18000mm/min | 18000mm/min |
| Max Engraving Speed | 10000mm/min | 10000mm/min | 10000mm/min |
| XYZ traveling positioning accuracy | ±0.01mm | ±0.01mm | ±0.01mm |
| XYZ repositioning accuracy | ±0.01mm | ±0.01mm | ±0.01mm |
| Spindle power | 3.0kw stone professional use spindle(optional) | 3.0kw stone professional use spindle(optinal) | 3.0kw stone professional use spindle(optinal) |
| Spindle Speed | 0-24,000rpm | 0-24,000rpm | 0-24,000rpm |
| Voltage | 110V/220v/380v(choice) | 110V/220v/380v(choice) | 110V/220v/380v(choice) |
| Drive type | Leadshine stepper/ servo motors and drivers | Leadshine stepper/ servo motors and drivers | Leadshine stepper/ servo motors and drivers |
| Working Dictate | G Code | G Code | G Code |
| Operating system | NC -Studio/DSP A11/MAch3,etc | NC -Studio/DSP A11/Mach3,etc | NC -Studio/DSP A11/Mach3,etc |
| Interface | USB | USB | USB |
| Table | T-slot table with clamps | T-slot table with clamps | T-slot table with clamps |
| Package size | 3.4*2.05*1.89M | 3.7*2.16*1.89M | According to size |
| G.W | 900KGS | 1400KGS | According to size |
Samples
Production processing
Packaging&Delivery
Certification Showing
Our Services
Our Factory
Important Tips
FAQ.
Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.
Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
Q6. What's your date of delivery?
For standard machine, about 15 working days; For customized machine, about 20 working day.
Q7.MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
