P3.91 Chinese Sexi Film Full Color SMD Foldable and Portable Outdoor Indoor Wholesale Advertising LED Display Screen Video Wall for Stage

Product Description

1. Features: 1> Stable cabinet size: the material of the cabinet frame is die cast aluminum, and the size is stable to 960mm*960mm.
2> One installation, easy to use forever. It is fixed installation type LED screen, safe and stable. 3> Equipped with professional controller from NovaStar or ColorLight. Also an option video processor can be provided. 4> Support 256-level brightness adjustment and white balance custom adjustment. 5> Good waterproof effect, with IP65 or IP67 protection level, suitable for outdoor fixed use. Equipped with various specifications of the plywood box, which is convenient for transportation, and has a good protective effect on the LED display. · 6> Support high refresh rate, it can meet the shooting needs of different occasions and effectively avoid the flickering phenomenon during shooting.
2. Unique advantage: the high configuration type can reach 10000 nit brightness. And it is ultra thin design, thin to 97mm.
Normally the thickness of outdoor fixed installation LED screen is up to 120mm.
3.. Model: outdoor P5, P6.6, P4, P8, P10
4. Cabinet Photo
4. Specfications

No.		FS05-QE	FS6.6-QE	FS08-QE	FS10-QE
	Application	outdoor	outdoor	outdoor	outdoor
Module	Pixel Pitch(mm)	5.71	6.66	8	10
	Module Size(mm)	480*320*19.5	480*320*19.5	480*320*19.5	480*320*19.5
	Module Resolution(pixel)	84*56	72*48	60*40	48*32
	LED Type	SMD2727 (high brightness type)	SMD2727 (high brightness type)	SMD2727 (high brightness type)	SMD2727 (high brightness type)
Cabinet	Cabinet Size(mm)	960*960*97	960*960*97	960*960*97	960*960*97
	Cabinet Resolution(pixel)	168*168	144*144	120*120	96*96
	Material	Aluminum profile+die cast aluminum	Aluminum profile+die cast aluminum	Aluminum profile+die cast aluminum	Aluminum profile+die cast aluminum
	Cabinet Weight(Kg)	29	29	29	29
Display	Pixel Density (Pixels/m2)	30625	22500	15625	10000
	Brightness (nit)	9500~10000	9500~10000	9500~10000	9500~10000
	Refresh Rate(Hz)	1920~3840
	Gray Level	12~14 bit
	Avg. Power Consumption	202 W/sqm	202 W/sqm	202 W/sqm	202 W/sqm
	Max. Power Consumption	600 W/sqm	600 W/sqm	600 W/sqm	600 W/sqm
	Viewing Angle (H/V)	±80°/±60°
	IP Grade	IP65
	Service Access	Front/back (optional)
	Operating Temp/Humidity	-20ºC~50ºC / 10%~90%RH
	Storage Temp/Humidity	-40ºC~85ºC / 10%~95%RH

5. Aging test in factory

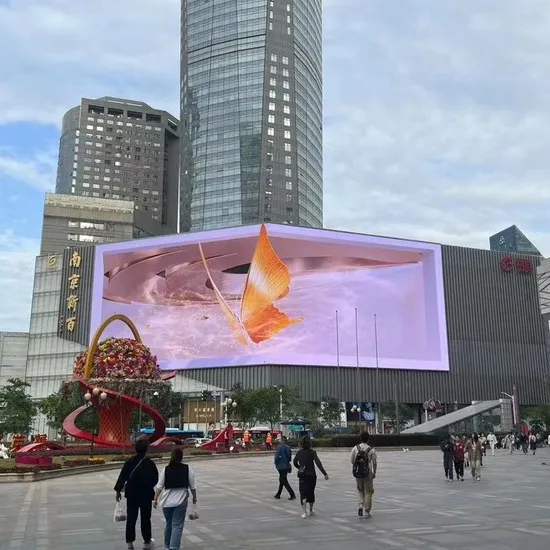

6. Our Case
After Service from LIGHTINGARTLED 1) Two to 5 years warranty depend on products
2) 24 hours online service, lifetime, free.
3) Depot repair service: during warranty, the Buyer only bear shipping cost back to factory. Out off warranty, the Buyer bear all shipping cost+raw material cost, free labor cost.
4) Experienced engineer service: during warranty, Buyer bear flight cost+accommodation. Out off warranty, Buyer bear flight cost+accommotation+engineer labor cost($200.00/day)+raw material cost. About Us We are an original factory in Shenzhen with 9 years experience. There are professional developed engineers, experienced sales engineers, and skillful workers. We can provide all the accessories and software for a whole project. Including, sending cards, video processor, software, flight case, power box, power cable, data cable, module mask, etc. We are professional in designing and manufacturing high-end LED display screen.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you. 3. If you are searching for alternative suppliers, please contact us. We are professional. Delivery And Payment 1. Production time for 1-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: EXW, FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case for fixed LED screen.
Our certificates
