Sc APC- Sc Upc 50/100/200m FTTH Fiber Optic Drop Patch Cord

Product Description

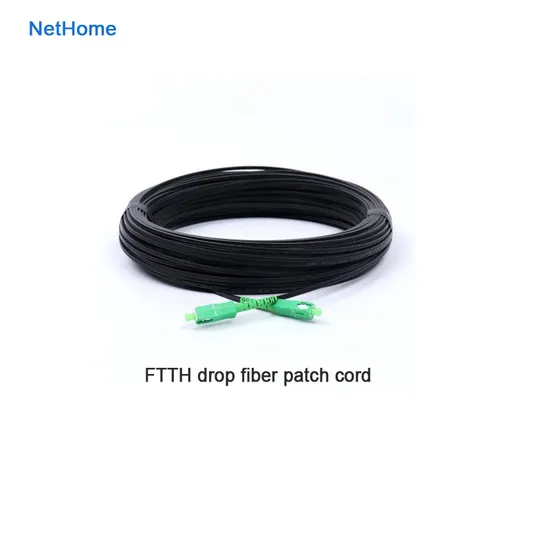

SC APC- SC UPC 50/100/200M FTTH fiber optic drop patch cord
Product Description
(1) FTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building. (2) FTTH drop cable patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling.(3) FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. (4) FTTH drop cable patch cord can be made with LC, SC, FC, ST, LC/APC, SC/APC, FC/APC and other types of connectors.

Product Features
1.Price-Competitive2.Low Insertion Loss & PDL3.Factory-terminated and Tested4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP6.Polishing Options: PC/UPC/APC7.Feature Connector with Ceramic Ferrules

Product Application 1; Telecom networks;
2; CATV, LAN&WAN.
3; Broadband;
4; Outdoor FTTP, FTTA

Detailed Photos


Technical Specifications Optical Characteristics:

	G.652	G.657	50/125um	62.5 / 125 μm
Attenuation (+20ºC)	@850nm			≤3.0dB/km	≤3.0dB / km
	@1300nm			≤1.0dB/km	≤1.0dB / km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.22dB/km
Bandwidth	@850			≥500MHZ.km	≥ 500MHZ · km
(Class A)	@ 1300			≥1000MHZ · km	≥600MHZ · km
Numerical aperture				0.200 ± 0.015NA	0.275 ± 0.015 NA
Cable cut-off wavelength		≤1260nm	≤1480nm

Mechanical parameters: Wavelengths: 1310 and 1550nm Color Code: Yellow Bend Radius: Minimum / 5cm Cable Jacket: 3.0mm LSZH Operating Temperature: -4° to 158° F (-20° to +70° C) Fiber Core: OS1 9/125 Jacket: Standard Zip Cord Duplex Length in Meters: 1 Length in Feets: 3.28084 Termination: Connector A (LC) / Connector B (SC) Polarity: A(Tx) to B(Rx) Insertion Loss: ≤0.3dB Return Loss: ≥50dB Polish: UPC to UPC Fiber Grade: G.652D Specification

FTTH drop cable fiber optic patch cord Performance Parameter
Name	FTTH drop cable fiber optic patch cord
Ferrule type	zirconia ceramics ferrule
IL	≤0.3dB	RL	≥55dB
Fiber core	1,2,4 to 12	Durability	≥1000 times
Jacket	3.1*2.0 or 5.0*2.0mm PVC or LSZH	Wavelength	1310 1550nm
Length	1~1000 meter	Working temperature	-40ºC~+80ºC

Packaging & Shipping
Customer Feedbacks
FAQ Q1.What is your delivery time?
A: Generally,it will take 3 to 15 days after receiving your deposit.The specific
delivery time depends on the items and quantity of your order.
Q2.Can you produce according to the samples or drawing?
A: Yes,we can produce by your samples or technical drawings.We also can
design and build the molds for you.
Q3.What is your sample policy?
A: We can supply free sample of common fiber optics, but customers have to
pay courier cost and in massive order, we return the sample cost.
Q4. Do you test all your goods before delivery?
A: Yes, all goods are 100% test before delivery.
Q5.How do you assure long term business and keep good relationship?
A:1.We keep persistent improvement to make nice quality and unique products
with competitive price to ensure our customers' benefit.
2.We keep mutual benefit for customers who have supported our company!
