Durable Tensile Strength Testing Machine Test Equipment for Strapping Band Wire

Product Description

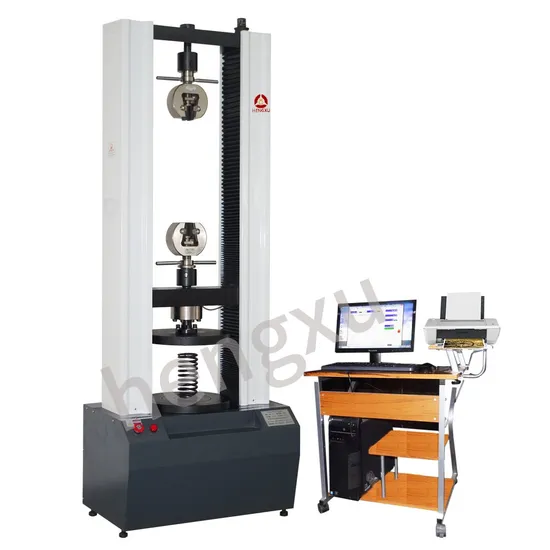

Product DescriptionHDW Series Microcomputer Control Universal Testing Machine
Main Application
Engineered with precision, this series of tensile testing machines are meticulously designed and manufactured in compliance with ASTM, ISO, DIN, GB, and various other prestigious international standards. They areaptly suitable for assessing the mechanical properties of a wide array of materials spanning from metals to non-metals and composites, including but not limited to rubber, plastics, textiles, waterproof materials, wires and cables, net ropes, metal wires, etc. This equipment enables an extensive range of tests: seamlessly transitioning from tensile to compression, bending, shearing, tearing, peeling, puncture, and more through adaptable accessories. Attaining precision in material testing is crucial to guarantee the utmost quality and top-notch performance. The microcomputer-controlled universal testing machine is designed precisely for this purpose. Outfitted with an efficient AC stepper motor and a state-of-the-art digital servo speed control system, these electronic universal testing machines ensure steadfast force application throughout mechanical tests. It features an arc synchronous belt coupled with a precision ball screw assembly for smooth and uninterrupted operation. While it is a quintessential tool for tensile testing, this versatile testing system excels in adapting to a myriad of other tests like compression, bending, shearing, tearing, peeling, and puncture, just by switching fixtures.
Product Parameters

Name	Computer control universal Testing machine specification
Model	HDW-5	HDW-10	HDW-20	HDW-50		HDW-100	HDW-300
Structure	2 columns
Max. Load(KN)	5	10	20	50		100	300
Load Range	2%~100% full Scale or 0.4%-100% Full Scale
Load Accuracy	±1% or ±0.5%
Resolution of load	1/300000 of full scale
Measuring Range Of Deformation	2%~100%
Resolution of Displacement	0.001mm
Accuracy measure Of Deformation	±1% o r±0.5%
Control Speed	0.1-500(mm/min)						0.1-200(mm/min)
Relative Error of Speed:	≤±1%
Tensile Test Space	650mm
Compression Test Space	650mm
Load Cell Configuration	One(Max Load), more load cells can be added according to customer requirement.
Extend Configuration	Large deformation extensometer, high or low temperature test chamber, high temperature oven.
Protection function	The test machine has the function of overload and limit protection
Test machine size(mm)	730*360*1750			740*500*1820	800*480*1870		1130×650×2650
Power Supply	AC110V / 220V / 380V±10%, 50Hz-60Hz
Weight(KG)	300			350	400		1500

Application Industry
Our Advantages
Company ProfileJinan HengXu Testing Machine Technology Co., Ltd., founded in 2007, has emerged as a distinguished high-tech enterprise with a specialization in the research, development, and production of testing machines. With a focus on friction wear testing and mechanical testing for advanced materials, the company has ascended to the forefront of China's testing industry. HengXu distinguishes itself through its cutting-edge testing technologies and the unwavering trust of its customers, achieving remarkable sales of over 100 million RMB in 2023.
