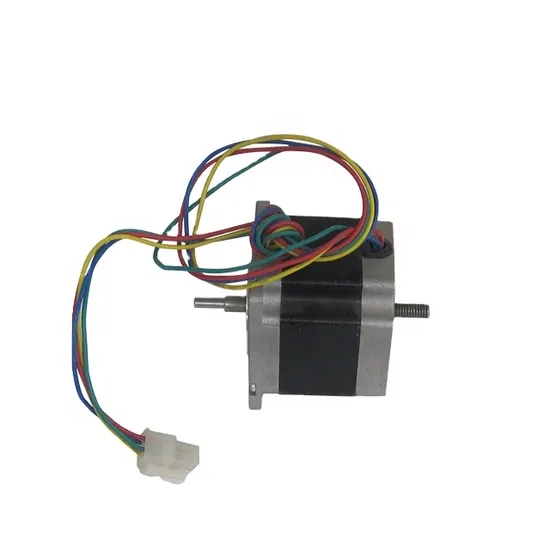

High Precision Dual Axis 57mm Stepping Motor for Robotics
| US$5.00 | 1 pieces (MOQ) |
Basic Info.
Model NO.
FHB368 Dual-axis
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control, Driving
Number of Poles
6
Operate Mode
The Three Single Phase
Type
Permanent Magnet
Certification
ISO9001, CE
Brand
Mige
Usage
Universal
Protect Feature
Waterproof
Phase
Three Phase
Warranty
3months-1year
Shape
Square
Current / Phase
5.8A
Structure
Synchronous Motor
Power
DC
Transport Package
Packed in Plywood Case or Carton
Specification
57mm
Trademark
MiGe
Origin
Zhejiang, China
HS Code
85013100
Production Capacity
50000 Piece/Pieces Per Month
Packaging & Delivery
Package Size
16.00cm * 14.00cm * 12.00cm
Package Gross Weight
1.200kg
Product Description
Dual-axis stepping motor has such advantage as high efficiency,energy-saving,low noise, low vibration, "high start torque","low start current" and reliable performance.They are easy for installation and maintenance368 Dual-axis Stepping Motor Specifications:
| Model | FHB368 |
| Step Angle(°) | 1.2 |
| Length L(mm) | 76.4 |
| Holding torque(N.m) | 1.5 |
| Current (A) | 5.8 |
| Rotor inertia (g.c) | 380 |
| Weight (kg) | 1.1 |
| Shaft diametermm | 8.0 |
| Shaft extensionmm | feather key 3x15 |
| Step accuracy | 5% |
| Temperature | 80 Max |
| Environmental temperature | -20 ~ +50 |
| Insulation resistance | 100M Ω Min 500 V DC |
| Withstand voltage | 500V AC 1 minute |
| Shaft Radial Play | 0.02 Max (450g-load) |
| Shaft Axial Play | 0.08 Max (450g-load) |
