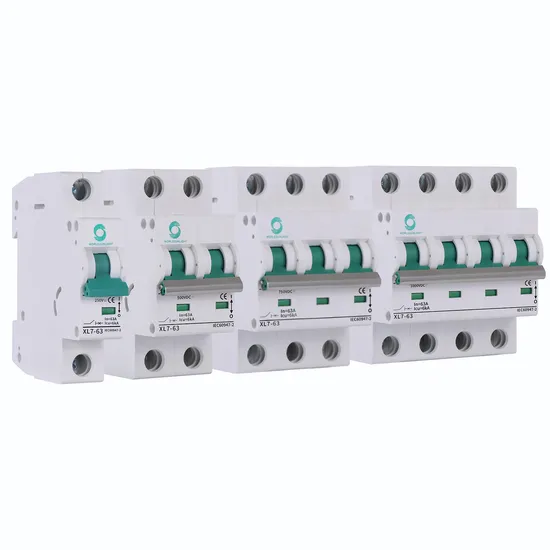

TUV IEC CE XL7 6ka 250V 500V 600V 800V 1000V 1p 2p 3p 4p 10A 16A 20A 25A 32A 40A 50A 63A Solar PV DC MCB Mini Circuit Breaker

Product Description

DC MCB Application: XL7-63 Solar system DC MCB,apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
DC MCB Features:1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
Dc MCB Tech Parameter:

SN7-63 PV Series Circuit Breaker		SN7-63 PV
Frame Degree Rated Current(A)		63
Pole		1P	2P	3P	4P	2P( CUSTOMIZED)
Rated Operating Voltage (v Dc)		250	550	750	1000	600V/800V
Rated Ilnsulation Voltage Ui (v DC)		1200V
Rated Current In(A)		3,6,10,16,20,25,32,40,50,63A
Rated lmpact Voltage Uimp(kV)		4
Ultimate Breaking Capacity lcu(kA)		6
Run Breaking Capacity lcs (%olcu)		75%
Curve Type		C
Trip Type		Thermal-magnetic
Mechanical	Actual average value	9700
	Standard value	9700
Electric	Actual average value	300
	Standard value	300(accord to TUV standard)

Shunt release (SHT)	Option
Undervoltage release (UNT)
Auxiliary contact (AX)
Alarm contact(AL)

Wiring capacity (mm2)		In<32A,1-6,l≥40A,10~16
Ambient temperature (°C)		-35~+70
Altitude		<2000
Relative humidity		<9 5%
Pollution Level		3
lnstallation Environment		No obvious shock and vibration
Installation category		Class Ill
lnstallation		DIN Standard rail
Dimensions(W)x(H)x(Deep)	w	18	36	54	72
	H	80	80	80	80
	Deep	71	71	71	71
Weight (kg)		0.12	0.24	0.36	0.48

Our Service Quick reply Quick delivery Photography serviceAverage response time 2.75 hours 1000 PCS<7 Day Free photos and videos of your products
Production visualization Barrier-free communication After-sales service Synchronize the progress of your product English major level 8 to improve Two-year warranty and timely communication production for you communication efficiency Certifications
Company Profile
Yueqing Xianglang Electric Co., Ltd., with over a decade of experience in the solar accessories industry, has been dedicated tothe manufacturing and R&D of solar products. With a factory spanning 10,700 square meters, the company's annual output exceeds US$20 million. Specializing in miniature circuit breakers, SPDs, fuses, solar connectors, distribution boxes, and combiner boxes,the company boasts CE, TUV, IEC, and ISO9001 certifications. Each product undergoes stringent quality control and testing. With over 10,000 project experiences, Yueqing Xianglang Electric Co., Ltd. has earned a reputation for high-quality products,competitive pricing, prompt delivery, and exceptional after-sales service. We look forward to a long-term partnership and mutual growth with you.
Packaging & Shipping
DC MCB Packing Details: 2P DC MCB: 120 pcs per carton/47*25*19 14.1KG 4P DC MCB: 60 pcs per carton/47*25*19 14.1KG DC MCB Delivery Time: 3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
DC MCB Shipping: 1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods! FAQ Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 3-5 days. More than 1000 pcs order cost 7-15 days.

Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.

Q:Your DC MCB seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: Our products have CE IEC certificate,Our DC MCB is special for Solar system all the parts in the MCB are high quality customized.Not all the DC MCB are Solar MCB!

Q What's thedifference between DC MCB and AC MCB?
A: DC MCB function is the same as AC MCB. It's difficult to interrupt and extinguish the arc in the DC circuit, so the configuration of the accessories of the same product is much higher than that of the AC model type.

Q:How's the warranty period for your DC MCB?A:We offer two year warranty for our customer.How controls quality?1.All our maingoods are certified by TUV lab and the manufactur-ing procedures are according to lEC standards.We have 3 links to control the quality during the whole pro-cess:1. Raw material testing 2.Production process process supervision records 3. Finished product performance testing 4. Finished product factory testing"

Q : What's your DC MCB rated current range?
A: We offer DC MCB from 1A to 125A, the XL7-63 DC MCB is 1A~63A, the XNC-125 DC MCB is 80A~125A.

Q: Which countries you have exported to?
A: We have shipped to two hundred countries around the world, and we are happy to see that through our professional services and solutions, our customers get more business and the end users are satisfied.

Q: Can you help me to select suitable DC MCB?
A: Sure, please send us inquiry and tell us your demand, we have professional team to support you in model selection.

Q: Do you provide OEM & ODM service?
A: Yes, we support OEM & ODM. For some items we have MOQ.For more questions, feel free to send us inquiry.

Q: ls there any discount?
A: Yes, for larger quantity, we always supportwith better price. For special discount, please contact us.

Q: May l know the standard of package?
A: Normally are cartons, we also follow thethe special requests of our customers.

Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
