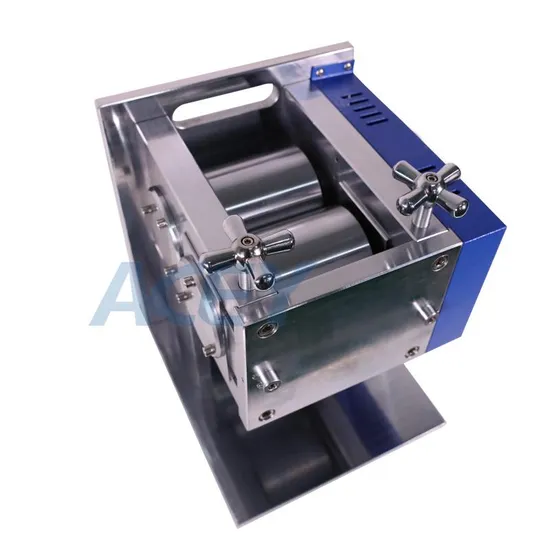

Lab Manual Roller Press Calender Machine Electrode Calendering Machine for 18650 Lihtium Battery Electrode Making

Product Description

Lab Manual Roller Press Calender Machine Electrode Calendering Machine For 18650 Lihtium Battery Electrode Making
Product Description
It is mainly suitable for manual rolling of battery materials in the laboratory. It is especially suitable for thinning and increasing the density of lithium battery pole plates of clean energy materials . This machine adopts gear transmission to realize the roll pressing, the rolling thickness can be adjusted, and it is easy to use.
Features
*The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.
*Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
*High rolling precision, roller cylindricity≤±2um.
*Vertical design, convenient for feeding and rolling of strip material.
*Adopt gear meshing rotation to realize the roller pressing.
*The thickness and speed of the tablet can be adjusted, and the appearance is exquisite and beautiful.
*Small size, easy operation, flexible and quick to use.
Product Parameters

Product Name	Manual Horizontal Roller Machine
Model No.	ACEY-MRP100W
Roller cylindricity	±2um
Roller hardness	HRC62
Roller finish	Above 0.4
Roll placement	Horizontal placement
Rolling thickness	0~2mm, the gap can be adjusted
Operation method	manual
Feeding speed	0~40mm/s, depends on the speed of hand crank
Dimensions	L405mm*W305mm*H355mm
Roller size	diameter 96mmX100mm
Equipment weight	50KG

Q1:How to order?
A: Please send us your purchase order by email or call us sales, or we can make the proforma invoice under your request.We need to know the following information for your order before sending your Pl. Payment methods? T/T, L/C, D/P and so on.
1)Product information-quantity, specification(size, material, technological if needed and packing requirements etc.)
2)Shipping information-company name, street address, phone number,destination sea port.
Q2: How to control quality?
A,All the raw materials by IQC(Incoming Quality Control) before launch whole process into the process after the screening,
B, Process each ink in the process of IPQC(Input Process Quality Control)patrol inspection.
C, After finished by QC full inspection before packing into the next process packing.
D, OQC before shipment for each slipper to do full inspection.
Q3:How do I install and operate the machine myself?
A: Our system development is based on the integrated development view, when you get the machine, just connect it to the power supply and the machine is ready to work, as the English software is already installed on the machine, all you need to do is to learn how to use the software, a complete English user manual will be sent to you with the machine.
Q4: How do I get technical support after purchase?
A: Our factory provides online technical support in English, you can get to know us easily online through Skype, Wechat, WhatsApp or E-mail. If you need any remote assistant support, we will support you through Team viewer software.
Q5:What's the warranty for the items?
A: We are very confident in our products and we package them very well so you will usually receive your order in perfect condition. The warranty on the equipment is one year (12 months) and if any part of the equipment is damaged within one year due to non-human factors, we will provide a replacement part free of charge.
Q6:Can I customize products?
A: Yes, OEM&ODM is available! we can provide not only standard machines but also customized machines according to your requirements. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
