CE &ISO High Quality Used Auto Car Body Spray Paint Booths Price

Product Description

Ce &ISO Certification Hot Sell High Quality Used Auto Car Body Spray Paint Booths Price
Product Description

LX-2 Parameters
Outside size	7000×5350×3400mm(L×W×H)
Inside size	6900×3900×2650mm(L×W×H)
Entrance door	3 folds,3000x2600 mm(W×H), bending steel without covered frame
Emergency door	650*1800mm(W*H),equipped with handle lock

Main System
Cabin system	Wall panel	-Sandwich style EPS 50mm, 0.376mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel.
	Basement	-Galvanized steel assemble, 300mm high, quadrate steel support, 2 rows of grills,3 rows of indented plates. -2 ramps, external setting,620*2000mm(W*L)/pc
Ventilation system	Inlet fan	2*4kw double-intake centrifugal fans, model: YDW4.5M1, air capacity:12500m³/h for each set
	Outlet fan	Optional
	Cabinet setting type	-Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful. -Cabinet for the fan*1unit ,air duct*2m long*1unit, -Elbow:90°*1 unit
	Airflow speed	0.35m/s, ventilation rate:280time/h
Heating system	Burner	Italy RIELLO G20 oil burner, heating capacity: 200000Kcal/h, with BELIMO 10N electric damper
	Heat Exchanger	1.2mm thickness SUS304 stainless steel
	Cabinet	Rock-wool insulation*1 unit
Lighting system	Ceiling lights	24pcs*36w LED lamp with electronic ballast.
	Side lights	Optional
Filtering system	Primary filter	Grade G2 plate type , filtering rate>83%
	Ceiling filter	EU5 grade high efficient filter, filtering rate>98%
	Floor filter	Multi-layer fiberglass filter, filtering rate>70%
Control system	Control panel	Intelligent control system
	Function	Lighting, temperature time setting, painting, constant temperature painting, baking, emergency stop, failure indication, time accumulate, etc
Total power	8.9KW
Voltage/Frequency	380V,50HZ,3 phase

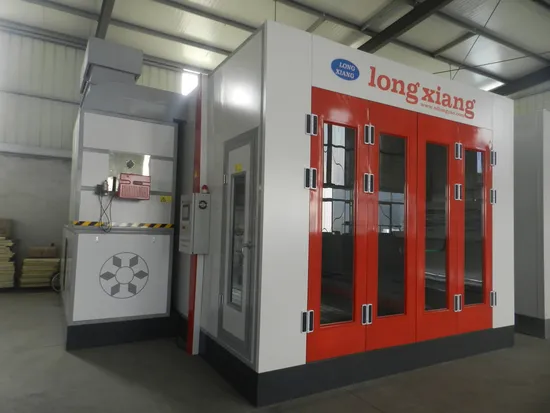

Detailed Photos

Company Profile


OUR SERVICES
1. LONGXIANG supports 24 hours online service , perfect after sales service system.
2.LONGXIANG provides short delivery time within 1 week.
3.Engineers available to serve machinery overseas.
4.LONGXIANG support 12-month warranty and will help to maintain it all life long.

Product process

Process
A) Non-welded CNC machining process is applied in more than 90% of spare parts to ensure the elegant appearance and excellence performance.

B) More than 10 years of intact use can be reached by strength of materials, perfect surface treatments and strict applicance of raw materials.

C) PU-perfusion technology is applied in main door for high strength and smooth surface.

D) Work process control by integrated circuit ensures more stable function.



Product Introduction
Vehicles spray booth provides a closed environment for vehicles painting with pressure controlling. As we know that dust free, appropriate temperature and wind speed are necessary for painting.
Then this spray booth can provide a relatively ideal painting environment; this can be controlled by several groups of ventilation, heating system and filtering system etc. Heated air produced by the burner can help the spray booth to hold a suitable temperature, air flow and illumination.
In order to promote dust free, appropriate temperature and wind speed for customers, LONGXIANG spray booth has follow advantages:

Ventilation of the spray booth
LONGXIANG spray booth has several ventilation systems which provide better painting conditions. All the filter systems and air exhaust systems underneath create a efficiently vertical air flow; and this air flow distribute inside of the booth evenly; then this air flow make overspray removing away from the vehicle immediately and completely.

Air recirculation on baking model
100% of the air produced by the fan is transported into LONGXIANG spray booth during the baking model; and only 15%-20% is expelled outside which means the balance 85%-80% is recovered and filled up with fresh air by means of the changeover damper.
The inner temperature of the LONGXIANG spray booth raises rapidly; Then the heating system will power off at once when it reaches at baking temperature, this will save more energy.

Lighting
The lighting system is provided by four*36W light fixed in the ceiling panels and side walls. They are sealed with 5mm tempered safety glass. LONGXIANG spray booth lighting system is able to supply enough lighting with lower energy consume safely.

Filters
The filtering system is made up by high-efficiency filters. The filers hold higher dust retention capacity and lower resistance to the air passage. The long life designing reduces frequency of replacement, which is contributing to reductions in running costs.

Warranty
Our equipments except quick-wear-parts are guaranteed for 12 months from the date of receipt, and the filters and lamps are quick-wear-parts.

FAQ
1. Q: What is your delivery date?
A: Normally we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.
2. Q: Can you design the spray booth according to our request?
A: Of course. All product can be customized with your own designs.
3.Q: Are you a factory or a trading company?
A: We are a factory and have the own design&production&competitive price advantages.
4. Q: Can I order special color which I like?
A: Yes, we can produce machines with blue, white, red and grey to meet your requirement.
5. Q: Where is your factory located? How can I get there?
A: Our factory is located in Longyao Industrial park, Shandong province, china. About an hour from Jinan international airport. Welcome to our factory from all over the world.
6. Q: How about your service?
All product have one year warranty and life-long technology support.
