Plastic PP Film PVC Recycling Grinding Granulating Granulation Granulator Pelletizing Machine

Product Description

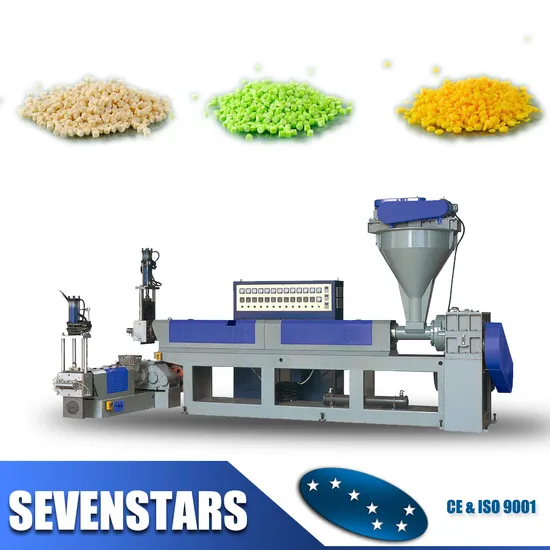

Single stage PE PP plastic pelletizing machines
Specifications
1. Client reference
2. Capacity: 100-1000kgh
3. Pellet size: Diameter: 2.5to3mm
The process flow of PE PP pelletizing line as following:
Screw feeder →Side force feeder→ Extruding system→High speed screen exchanging →water cooling bath→ air dryer→ pelletizer machine→ Silo
The machine can reduce less loss of the viscosity of the raw material. Compared to water-ring cutting, it is not easy to break the article or adhesion. The granules that the Braces particle cutting machine produce are much more uniform and beautiful.
1. Extruder
This machine is used to extrude plastic cleaned by high temperature. The extrusion line can be consisted by such accessory machine: Main motor, the gear box, the distribution box, the barrel and screw, the dies,
Water tank. Main Motor is mainly to supply the power. The Gear box transfers the motor to power. The distribution box enlarges the strength of the power and realizes uniformity.
2. Mould
We use plug board type to change nets and keep machine working. The mould is made by 40Cr nitridation. The pressure sensor prompts to change the nets. There also can install a hydraulic equipment to change the nets more quickly.
3. Water cooling bath
The water tank is 4 meters long. Make out article of cooling.
4. Air dryer
Through the double channels strong wind dryer, force drying and cooling article material reach the fast speed effect of shaping up.
5. Pelletizer machine
It adopts grain design, accracy is high and can guarantee the rotatory precision and stationery of power, movements of cylinder are controlled by the solenoid valve, the automatic degree is highand the noise is low.
Main parameter SJ series Single-stage/Double-stage PEPP plastic film pelletizing line/granulating machine:

SJ series single screw PE PP plastic film granulator machine
Model	SJ-65		SJ-80		SJ-100	SJ-120		SJ-150		SJ-200
Screw Dia.	65		80		100	120		150		200
L/D	28-30		28-30		28-30	28-30		28-30		28-30
Capacity	60-80kg/h		80-100kg/h		150kg/h	300kg/h		400kg/h		500kg/h
SJ series double-stage PE PP plasic film granulator machine
Model		SJ-100/100		SJ-120/120			SJ-150/150		SJ-200/200
Screw Dia.		100		120			150		200
L/D		28-30 10-15		28-30 10-15			28-30 10-15		28-30 10-15
Capacity		120-180kg/h		220-300kg/h			300-400kg/h		500-600kg/h
