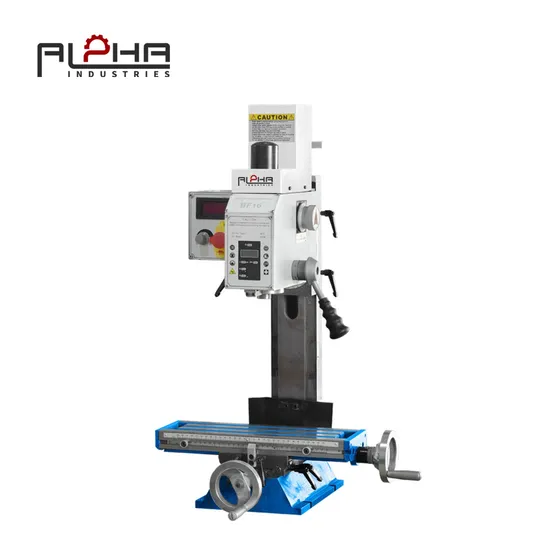

Hot Selling Bf16 High Precision Lathe Drilling Milling Machine

Product Description

Product Description
Solid grey cast-iron machine base reduces vibrations
Direct current motor ensures optimal torque at low speed range
Adjustable dovetail guiding in x-, y- and z-axis
Steplessly adjustable speed range (50-1125/100-2250 rpm)
Mill head tilts to both sides (-90°to +90°)
Polished gear wheels ensure smooth running
Handwheel allows precise spindle feed when milling
Wide range of applications, such as tapping, slot and end milling
Product Parameters

Model NO.	Bf16	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	610x500x820mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Model No.	Unit	BF16
Drilling capacity in steel	mm	16
Face mill capacity max	mm	50
End mill capacity max	mm	16
Distance spindle to column	mm	170
Distance spindle to table max	mm	275
Spindle stroke	mm	50
Spindle speed, stepless	rpm	50-1125 / 100-2250
Spindle taper		MT2
Table size	mm	500x140
Travel (x/y)	mm	365/140
Mill head tiltable	°	-90° to + 90°
Height adjustment of mill head	mm	200
T-slot size	mm	10
Motor power output S1 100%	kW/V	0.5/230
Motor power input S6 40%	kW/V	0.8/230
Machine dimension (W x D x H)*	mm	610x500x820
Weight approx	kg	60kg
Standard Accessories
Drawbar M10	Digital display of spindle stroke	Digital speed indication
Height adjustable protective cover	EMC filter according to CE standard	Drill chuck arbor MT2/B16
Tools

Optional Accessories
Keyless drill chuck 1 -13 mm / B16	Mill chuck set ER 25, MT 2,4 -16 mm, 8 pcs
12 pcs. HSS TiN-coated end mills, 3-12 mm	Mill chuck set ER 16, MT 2,3-10 mm, 7 pcs.
Precision machine vise PS 75	Horizontal & vertical rotary table RT 4 L
Deluxe clamping kit set 58pcs.,10mm, M8	7 pcs.HSS roughing end mill set, 6-20mm
2 flute HSS end mill set, 4-16mm,7 pcs.	Aut.reversible tapping chuck set SUPER M2-M7
Boring head combo package diam.50 mm, incl. boring bars	Stand BF 1 with chip tray

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
