Hydraulic 250mm Working Width Soil Ploughing Machine Disc Harrow for Agricultural Plowing to Canada by Factory Direct Selling

Product Description

Product Description

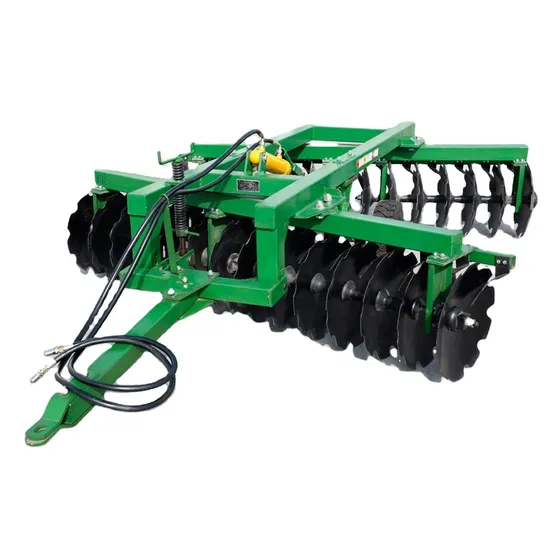

1BZ series hydraulic pressure offset heavy disc harrow/plough: there are high working efficiency, strong capability into the soil, after plough loosen soil.
And can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds.
Those harrow/plough are made by square tubes welded together which ensures simple structure and good rigidity.
The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.

1BZ- disc plough
Model		ZY-1BZ-2.2		ZY-1BZ-2.5		ZY-1BZ-3.0
Diameter of disc		660 mm *5 mm
Weight (kg)		1250		1350		1430
Working width (m)		2.2		2.5		3
Working depth (mm)		180-200		180-200		180-200
Ground clearance (mm)		>160		>160		>160
Maximum working angle		23		23		23
Nos of disc blade		20		24		28
Matched power (hp)		80		80		100
Linkage		Trailed

1BZ- disc plough
Model		ZY-1BZ-3.4		ZY-1BZ-4.0		ZY-1BZ-5.3
Diameter of disc		660 mm *5 mm
Weight (kg)		1550		1650		1780
Working width (m)		3.4		4		5.3
Working depth (mm)		180-200		180-200		180-200
Ground clearance (mm)		>160		>160		>160
Maximum working angle		23		23		23
Nos of disc blade		32		36		48
Matched power (hp)		120		120		140
Linkage		Trailed

FEATURES OF ZEYI 1BZ HEAVY DISC HARROW

Feature 1: Reinforced Heavy Harrow.1.2-1.3 times heavier than Normal other factory heavy harrow,with compact structure, 120×120mm rectangle square tube steel,connection part of harrow frame is stranthened.Most powerful ability of breaking up soil.

Feature 2: Sealed Bearing Combination.8 sealed bearing combinations,effectively prevent soil and dirty damage to the bearing.

Feature 3: More big hydraulic pressure transport rubber tire and rim,type:400-16.

Feature 4: Surface treatment-Baking finish or power coating,well resist ability in collision of coating surface.
