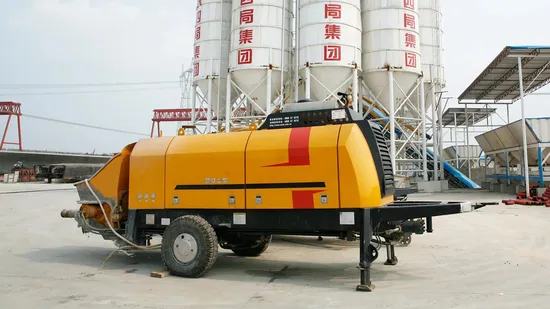

Concrete Machinery 7.3ton Weight 85m3/H Trailer Pump Hbt8018c-5s 180kw Diesel Trailer Concrete Pump
Basic Info.
Model NO.
HBT8018C-5S
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Productivity
85/50 M3/H
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Engine Rated Power
180kw
Max. Output Pressure
10/18 MPa
Gross Weight
7300kg
Type.
S-Valve
Transport Package
Container
Specification
7350*2125*2685mm
Trademark
Famous Brand
Origin
Hunan
HS Code
8705909100
Production Capacity
500 Units/Month
Product Description
CompanyProduct Description
Advanced Hydraulic System
Differential pressure controlled, bi-directional hydraulic system
High flow, high efficiency valve system
Automatically retracted pistons
Intelligent Control System
Fault self-diagnosis technology
Dedicated motion controller
Emergency override available
Efficient Pumping System
High-efficiency pump technology
Large bore reversing cylinder
High power mixing motor
New-type hopper
Advanced Energy-saving Technology
New generation energy-saving technology automatically adjusts engine power output to match the load which results in fuel savings of up to 25%.
Wear-resisting Technology
Sino-Germany high-tech materials and advanced technology are adopted to greatly improve the product performance. Product Parameters
| Item | Parameter |
| Main Specification | |
| Delivery Cylinder Bore*Stroke | Φ200×1800 mm |
| Dimension (L*W*H) | 7350×2125×2685 mm |
| Gross Weight | 7300 kg |
| Technology Specification | |
| Engine Rated Power | 180 kW |
| Generator/Engine | Diesel |
| Max. Output Pressure | 10/18 MPa |
| Max. Output Quantity | 85/50 m³/h |
| Type | S-Valve |
Detailed Photos
