Budget-Friendly 600 Kg Glass Vacuum Lifter Robots with Suction Cups From China

Product Description

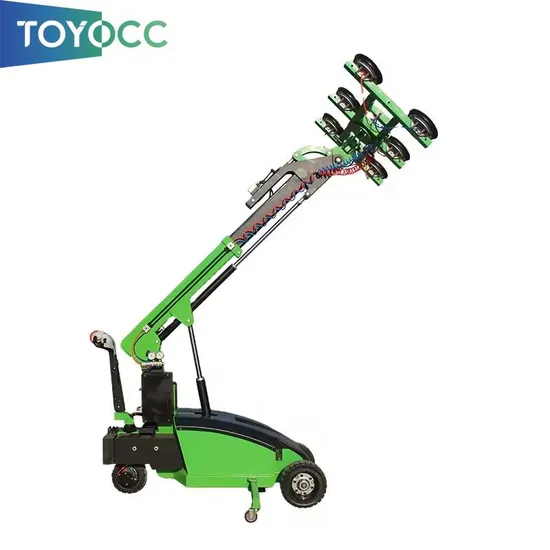

Battery-Operated Glass Glazing Robot - CE Approved
This machine is ideal for transport the delicate glass within company premises and on construction sites. Technical Specifications for Glass Manipulator Maximum Load Capacity: 600kg while the second ram back to end, 300kg while the second ram full extended
Maximum Lifting Height: 3500 mm from ground to center of suction frame
Movement: Automatic movement with speed control via manual roller
Lifting Control: Hydraulic ram controlled by a manual valve
Extension Control: Hydraulic ram with manual valve control, Maximum extension distance: 650 mm, Maximum extension from front wheel to suction pads: 1350 mm (ram parallel to the ground)
Tilting Control: Hydraulic ram with manual valve control, Maximum tilt angle: approximately 130 degrees
Rotation Control: Manual control with spring lock positioning, Maximum rotation: 270 degrees
Side Movement: Hydraulic ram controlled manually, Total side movement: 150 mm (75 mm in each direction)
Side Turning: Manual control with spring lock positioning,Maximum rotation: 180 degrees (90 degrees in each direction)
Power Supply: DC 24V
Driven Unit: Rear wheels driven by a DC motor for movement and turning
Wheels: Front: 2 solid tires (400 mm x 150 mm), Rear: Single wheel (300 mm)
Driven Unit Power: DC 24V brushless motor, 1.2 kW
Hydraulic Station Power: 1.2 kW
Battery: 12V, 120A (2 batteries)
Maximum Working Period: Approximately 20 hours
Charging: Charging power: 220V, Charging time: about 8 hours
Vacuum System: Dual system
Suction Frame Dimensions: 1800 mm (L) x 800 mm (W)
Detailed Pics:
Dimension Drawing:
Who are we?
Founded by two metal equipment manufacturing industry-leading companies in 2017, Qingdao TOYOCC Industry Co., Ltd is specialized in glass making machines, systems, and tools for a wide variety of glass production, storage, and installation needs. With over 20 years' experience, not only can we manufacture the core products, but we also maintain long-term and trusty business partnerships with well-known suppliers both domestic and overseas.
We are able to provide one-stop sourcing services and solutions with high efficiency for global clients. We aim to assist you to save communication & negotiation cost with different factories in China, thus, further reducing the total procurement cost.
TOYOCC top-rated products include but not limited to glass grinding machine, glass cutting machine, glass handling & storage systems, laminating furnace, and accessories.
