Wide Operation Qjc-110 ODM OEM Custom 65mn Blade Beach Sand Cleaner

Product Description

Product Description

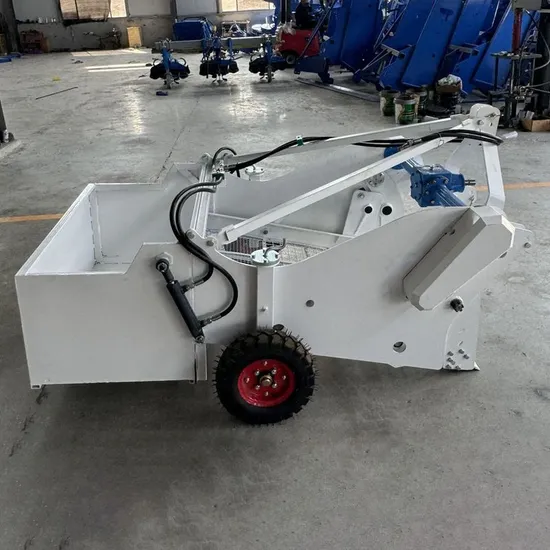

Beach Cleaner
Beach cleaning machine is a kind of mechanical equipment specially used for cleaning garbage and debris on the beach. It can efficiently remove garbage on the surface and deep layers of the beach, and loosen and level the beach at the same time. It separates garbage from sand through mechanical devices and collects garbage into the garbage bucket, and has certain environmental protection functions.
Beach cleaning machine is widely used in garbage cleaning on soft ground near water such as beaches, mudflats, wetlands, etc. It is not only suitable for dry and wet beaches, but also can clean floating objects in shallow sea water. This equipment can effectively remove various types of garbage such as bottles, plastic bags, seaweed, stones, etc., and level the beach at the same time to improve the hygiene and beauty of the beach.
Beach cleaning machines have many significant features. First, they adopt crawler or wheeled designs, which allow them to move flexibly on soft sand and adapt to different terrains. Secondly, the equipment is usually equipped with efficient screening devices, which can clean deep beach garbage with high cleaning efficiency and can clean large areas of garbage per hour.
Product Parameters

QJC-110 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	PROJECT
1	Structure type	three-point suspension	12	Set the speed of the power output shaft	540r/min
2	Walking mode(wheel, track Type)	wheel	13	Matching suspension width	600mm
3	Tire/track model	Tire4.00-8	14	Type of excavation device	Moving Blade
4	Number of tires/tracks	2	15	Blade material	65Mn
5	Tire/track spacing(center)	1360mm	16	Digging depth adjustment range	0-250mm
6	Working size (L*W*H)	2400*1400*1150mm	17	Depth limiting mechanism type(depth limiting wheel,others)	Central link
7	Shipping size(L*W*H)	2400*1400*850mm	18	Type of cleaning separation device (vibration Jane,others)	Vibrating screen
8	Total weight	420kg	19	Collection me thods	Collection box centralized collection
9	Working width	1100mm	20	Volume of collection box	0.15m³
10	Working per formance	0.14ha/h	21	Discharge method	Fluid pressure type
11	Matching power/machine horsepower	≥70HP	22	Screen diameter	22mm (Screen diame ter can be customized)
Note:The values in the specification table are theoretical values,please refer to actual values.

QJC-160 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	PROJECT
1	Structure type	three-point suspension	12	Set the speed of the power output shaft	540r/min
2	Walking mode(wheel, track Type)	wheel	13	Matching suspension width	880mm
3	Tire/track model	Tire4.00-8	14	Blade material	Moving Blade
4	Number of tires/tracks	2	15	Digging depth adjustment range	65Mn
5	Tire/track spacing (center)	1860mm	16	Depth limiting mechanism type (depth limiting wheel,others)	0-250mm
6	Working size(L*W* H)	2400*2000*1150mm	17	Type of cleaning separation device (vibration Jane,others)	Central link
7	Shipping size(L*W*H)	2400*2000*850mm	18	Collection methods	Vibrating screen
8	Total weight	420kg(unweighed)	19	Volume of collection box	Collection box centralized collection
9	Working width	1600mm	20	Discharge method	0.3m³
10	Working performance	0.2ha/h	21	Screen diameter	Fluid pressure type
11	Matching power/machine horsepower	≥70HP	22	Blade material	22mm(Screen diameter can be customized)
Note:The values in the specification table are theoretical values,please refer to actual values.

Detailed Photos
EFFICIENT CLEANING ABILITY
The beach cleaner can quickly clean up garbage and debris on the surface and deep layers of the beach, and can clean up an area of thousands of square meters per hour, greatly improving the cleaning efficiency. Compared with traditional manual cleaning methods, it saves a lot of time and manpower.
DEEP CLEANING AND SCREENING FUNCTION
The equipment is equipped with an efficient screening device, which can go about 20 cm deep into the beach to separate the garbage from the sand. At the same time, the screened sand can be directly backfilled without additional treatment to maintain the natural state of the beach.
STRONG ADAPTABILITY
The beach cleaner adopts a crawler or wheeled design, which can move flexibly on soft beaches, wetlands, or shallow water areas, adapt to a variety of terrains and environments, and can operate efficiently on both dry beaches and wet tidal flats.
ENVIRONMENTAL PROTECTION AND SUSTAINABILITY
While cleaning garbage, the equipment will not damage the beach, and can also loosen and level the beach to improve the texture of the beach. In addition, its low noise and low energy consumption design also meets environmental protection requirements.
VERSATILITY
In addition to the basic garbage cleaning function, the beach cleaning machine can also be equipped with other functional modules as needed, such as wetland cleaning, shallow water area cleaning, etc., so that one machine can be used for multiple purposes to meet the cleaning needs of different scenarios.

FAQ
Q1. What are your terms of payment?
A1:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What are your terms of delivery?
A2:EXW, FOB, CFR, CIF. Which delivery terms depend on your choice?

Q3. How about your delivery time?
A3: Generally, it will take 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Most time we have some in stock.

Q4. Are you interested in a dealership with a local company?
A4: Of course, we are quite interested in this business. We'd like to cooperate with some local partners to sell more HONGYOU machines in the local market and supply better service.


Q5. Do you test all your goods before delivery?
A5: Yes, we have 100% test before delivery and we can email you the test video if you need it.

Q6.Can you customize the machine for me?
A6: Yes, we can customize it according to the customer's requirements.
