Hualong Stone Machinery Hknc-650 Italian System 5 Axis CNC Stone Cutting Bridge Saw Machine for Granite Marble Quartzite Countertops Tombstone

Product Description

Product Description

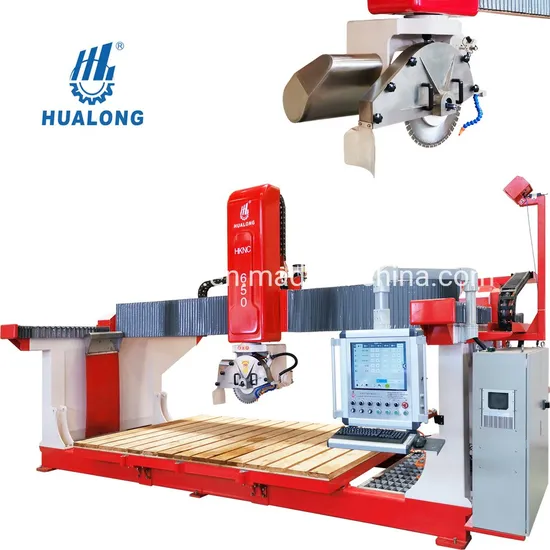

CNC Bridge Stone Cutting and Milling Machine HKNC-650
with 5 axis linkage control, can implement different complex curved surface processing, profiling, such as kitchen countertop, tombstone, art decoration slab & rock sculpture etc.
Detailed Photos
Specific Features

1. 0° to 360° any angle's automatic positioning cutting.

2. Linear guideway in "X, Y, Z" axis to guarantee accuracy and speed.
3. Electric components in international standards to be easily sourced
ITALY CPU ITALY MOTOR DRIVING SANCH FREQUENCY CONVERTER ITALY SERVO MOTOR
4. Italian imported original servo motors for 5 interpolated axes (X,Y,Z,C,A) to faciliate accurate positioning and faster cutting.
5. Italian imported original software and 15 inch industrial computer screen from Italy.
6. Italian control system in different languages for automatic cutting and easy operation, such as English, Italy, Spanish, Chinese.
7. Milling cutting
8. Engraving
9. Profiling and curved surface processing
10. Photoing
11. Safety door infrared induction (optional)

Technical data of the machine shown as below

Product Parameters

TECHNICAL DATA
Model No.		HKNC-560	HKNC-650
Diameter of saw blade	mm	ø350-ø560	ø350-ø650
Dimension of working platform	mm	3300×2000	3500×2100
Max. cutting length	mm	3300	3500
Max. cutting thickness	mm	140	190
Max. lifting stroke	mm	250	500
Power of main motor	kw	11	15
Power of cutter frame reciproctating motor	kw	1.15	1.15
Power of crossbeam shifting motor	kw	1.15	1.15
Power of hydraulic station motor	kw	2.2	2.2
Power of lifting motor	kw	0.85	0.85
Gross power	kw	16.35	20.35
Water consumption	m3/h	2	2
Gross weight	kg	5400	5800
Dimensions (L x W x H)	mm	5700×3260×2765	6300×3600×3100

Processed Products:
Company Profile
Certifications
FAQ
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
