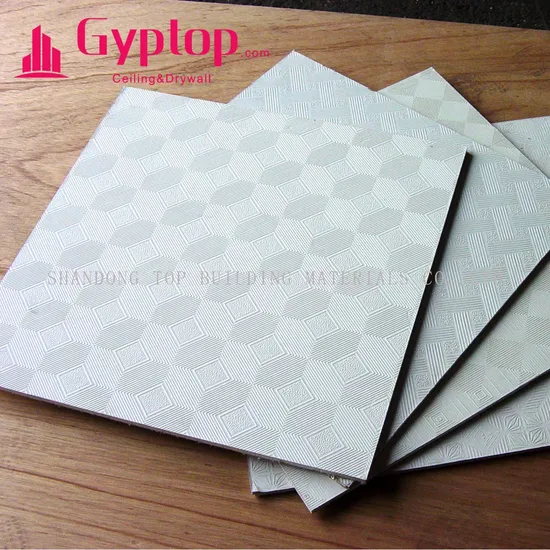

PVC Gypsum Ceiling Tile 603*603*7mm

Product Description

FAQ :
1.Who we are?
we are Shandong Top Building Materials CO.,LTD
2.What we do?
We are the professional and best manufacturer of Ceiling And Drywall System from china
3.What is our goal?
Create greater value for our customers.
4.Why choose Shandong Top Building Materials CO.,LTD?
We focus on the gypsum board industry 30 years.
We have 15 years of export business experience.
We are more professional and efficient.
5.What is our website?
top-gypsumboard.en.made-in-china.com top-gypsumboard.en.made-in-china.com
6.What is our brand?
Its Gyptop Brand
7.Why choose the Gyptop Brand?
Gyptop brand represents a more professional service and an efficient way of working, the most important thing is to create greater value for our customers.
8.What I can do for you?
Save your time, save your costs and create maximum benefits for you
9.What's certificate we can provide?
ISO9001-2008,CE,SONCAP,COC,TVOC…
10.What are the advantages of our products?
A Grade top quality, full size and more higher stability
11.What are our talent advantages?
We have 5-10 years experience in gypsum board export work.
We have more professional product knowledge.
We understand the target market better.
We are the best partner for you.
Gyptop Brand White PVC Laminated gypsum ceiling tile using new technology and raw material processing quality and become, mainly reflected in the strict quality control procedures, PVC leather material quality, level of gypsum board,environmental protective glue.
The materials of our PVC gypsum ceiling tiles:
White PVC film, Aluminium foil,Paper faced nature gypsum board.
Gyptop PVC gypsum ceiling Features:
1.Contemporary designs and patterns To suit your ambiance
2.High light reflection range 80%-91%, helps with room illumination
3.Thermal resistance R=O.41 m2 KW and thermal conductivity K value = 0.16 W/mk
4.Moisture resistance excellent performance in humid conditions
5.Fire protection made of Class 0 material for highest fire resistance performance
6.In structural. thermal or hygrometric changes, panels are less likely to wrap and crack than conventional gypsum panels
7.Good acoustic properties reduce noise In large areas
8.No need for additional painting
9.Factory made, smooth and uniform
10.Easy to clean hard washable surface that resists stains and abuse
11.Vinyl finish of panel, seals out moisture, bacteria, dirt and odors
12.Easy to install in T-Grid system
Application:
Indoor decoration of buildings such as hotels, restaurants, shopping malls theaters, danceries, cinemas, stations, auditoriums, offices, sitting rooms, business buildings, electronic workshops, precision apparatus rooms and industrial or residential buildings.
The specification and details of our PVC gypsum ceiling tiles.

Specification	Length x Width	595x595,595x1195,600x600,603x603, 605x605,603x1212,610x1220(2'x4')(mm)
	Thickness	7.0,7.5,8.0,8.5,9.0,9.5,12,12.5(mm)
Specification Tolerance	Length:±1.0MM, Width:±1.0MM, Thickness:±0.5MM
Packing	6/8/10 pieces per carton with shrink wrap bag and importer trade mark printed on the carton strip.
Technical Data	1..Weight/sqm:7.0MM:5.5KGS,7.5MM:5.7KGS,8.0MM:5.9KGS. 8.5MM:6.2KGS,9.0MM:6.8KGS,9.5MM:7.1KGS,12MM:9.2KGS, 12.5MM: 9.5KGS.
	2.Fire resistant property: No-flammable B1 in accordance with Chinese standard GB8624-1997
	3. Length ways & Lateral Ruptures Load:7.0MM>110N , 8.0MM>120N, 9.0MM>140N.
Installation	Math with Top quality T-32/38 grids with 0.30-0.45MM thickness.
Properties: The top quality pvc laminated gypsum ceiling tile with best aluminum foil backing is of thermal insulation, fire resistant, moisture resistant, no deviation, elegant, economic, environmental and easy installation as the suspend ceiling tile and dry wall partition. Environmental effective resisting dusts conform to the standard of GB6566-2001<>. Moisture resistant, slight deviation ,easy to clean, moisture rate ≤1%,conform to the national standard C/T997-2006 Decorative gypsum board with paper-facing C. Fire resistant A grade, conform to the Item 204 of BG50222-95 of Building material inter decoration design fireproof criterion D. Noise reduction Coefficient :0.1-0.3 E. Thermal conductivity:0.16W/MK. F. Light reflectance:0.75.

How to install the tiles:
1.Fixing the perimeter L-channel
2.Fixing the hangers to the main soffit
3.Installing the suspended grid
4.Placing the tiles in the grid frames.
