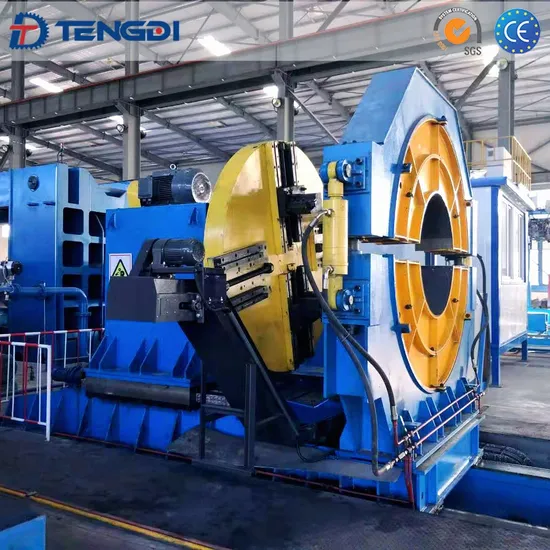

High Frequency Welding End Facing and Chamfering Machine Used on Pipe Factory

Product Description

Advantage:
1. The tool feed system is designed with a reinforced spindle box
2. The linear guide rail adopts Taiwan Shangyin, and the distance between the guide rails is increased.
3. The design structure of the cutter head can use the formed CNC cutter to reduce the number of tool changes and improve the operating rate.
4. The lateral movement adopts servo control, the idle stroke is accelerated, and the pipe is approached to the branch position to wait for the hooking and dropping of the pipe at a slow speed to prevent the pipe from moving in series.
5. The touch screen adopts the design of industrial control all-in-one machine, which can record the number of tool changes at any time, detect 4-6 fault points, and facilitate maintenance.
Quick Details

Key Selling Points:	Easy to Operate	Weight (KG):	300 KG
Certification:	CE	Type:	Double Heads Chamfering
After-sales Service Provided:	Field installation, commissioning and training, Field maintenance and re

Steel pipe outside diameter	Φ17.1~Φ60.3mm
Steel pipe length	6~12.5 m
Steel pipe wall thickness	2-12.7mm
Steel pipe straightness	0.1%L
Steel pipe ellipticity	1.0%D(max)
Steel pipe outside diameter deviation	±1mm
Condition of the end face of the steel pipe	The inner and outer circles are flat within 150mm of the pipe end, and the positive deviation is not more than 0.5mm
Pipe end bevel	Determined according to specific process parameters (30°)
blunt edge size	≥1.6±0.8 mm
Pipe end bevel	≤1.6mm
chamfering	Single
Executive standard	API 5L GB/T9711.1 GB/T9711.2
Productivity	60~100 pieces/hour

Product Description
The equipment is mainly used for the diameter range in Φ219~Φ406mm straight seam welded steel pipe within the tube end chamfering head.The end facer machine adopts mature and reliable international advanced technology. Product quality, production cost, various consumption indicators and labor productivity meet the requirements of product process and efficiency.

Ambient temperature (indoor)	5~ +40ºC
Environment humidity	≤90%
Supply voltage	380V ±10%(TN-C-S system)
Frequency	50 Hz ±1%
Control voltage	220 VAC / 24 VDC
Compressed air	0.4~0.6Mpa
Noise when the equipment is working	<85dB
Cooling water pressure	0.3-0.6MPa (T.O.P)
Compressed air	0.4~0.6Mpa
Noise when the equipment is working	<85dB
Cooling water pressure	0.3-0.6MPa (T.O.P)
Cooling water PH value	7-8
Cooling water suspension	50-100 mg/L
Cooling water hardness	7-110dH
Cooling water particle	Max. 0.06 mm
Cooling water sulfate content	<400 mg/L

Packaging & Shipping
Processing capacity
Exhibition photos
Certifications
FAQ
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
