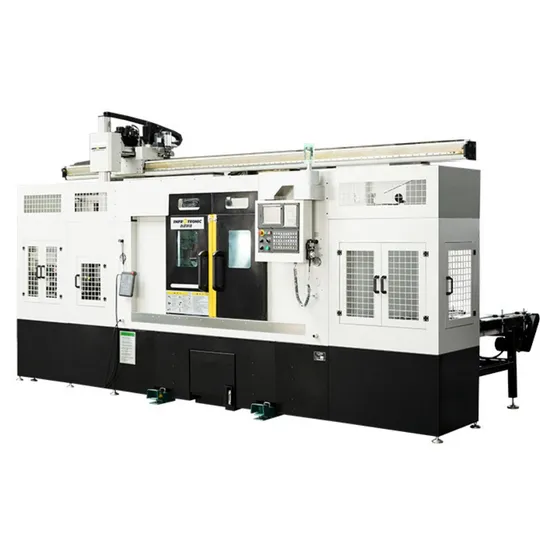

Parallel Double Spindle CNC Lathe Turning Center of Tt10

Product Description

Item		Unit	TT10
Range	Max Swing	mm	Φ180
	Max Machining Diameter	mm	Φ100
	Max Machining Length	mm	80
	The X/Z axis Range	mm	135/200
	X/Z axis Fast Feed	m/min	24/24
Main spindle	Spindle Size	-	JIS A2-4
	Max Spindle Speed	rpm	5000
	Main Motor Power	kW	5.5(x2)
	Main Spindle Through Hole	mm	Φ45
	Max Bar Machining Diameter	mm	Φ32
X/Z Rotation	X/Z Rotation	rpm	3000
Type of Tool Holder	Turret	-	12 Position Turret
	Tool Holder	mm	25x25
	Boring Bar	mm	Ø32
Coolant Tank Volume		L	160
Dimension(L x W x H)		mm	2420x1600x1750

Three Axes Gantry Robot
Item	Parameter
Z-axis Material(beam)	Structural Steel
Z-axis Drive Mode	Pinion and Rack
Maximum Z-axis Moving Speed	180(m/min)
Z-axis Drive Mode	Servo Drive
Y-axis Material(vertical Arm)	Aluminium
Y-axis Drive Mode	Pinion and Rack
Maximum Y-axis Moving Speed	150(m/min)
Y-axis Drive Mode	Servo Drive
X-axis Material	Aluminium/Structural Steel
X-axis Drive Mode	Pinion and Rack
Maximum X-axis Moving Speed	60(m/min)
X-axis Drive Mode	Servo Drive
Position Accuracy	±0.05(mm)
High speed servo window	Cylinder Drive
Note: Z Axis:Left and Right Movement; Y Axis:Up and Down Movement; X Axis:Forward and Backward Movement;
