China automatic PET small plastic bottle mold blowing molding making blower machine production line

Product Description

Product Description

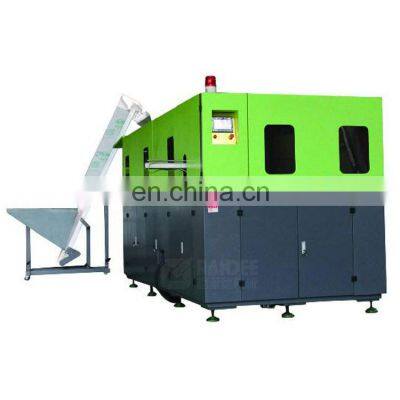

China automatic PET small plastic bottle mold blowing molding making blower machine production lineProduct Description GD-5L-A2 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.Features of main body:1). Stable performance with advanced PLC.2). Automatic preform conveyer to save human cost.3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.6). Introduce the FESTO air cylinder to avoid contamination and noise.7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.8). Strong clamping force with high pressure and double crank links to lock the mould.9). Two ways of operating: automatic and manual.10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.12). Ideal cooling system make the finished bottles without any flaws.13). Easy for you to install,test and start up.14). Low rejection rate: less than 0.2 percent.Operation:The standard operation of GD-5L-A2 stretch blow molding machine includes four steps as followStep 1. Put the preform into preform container and the conveyor will take the preform to orientation units automatically.Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking tunnel.Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and blow under low pressure and high pressure, exhaust, open the mold.Step 4. The finished bottle is taken off by automatic discharging system Main machine : PET Prefrom from preform loader into blowing machine Preform Loader Conveyor system Main technical parameter: Model GD-5L-A1GD-5L-A2CONTAINERNumber of cavityCavities12OutputBPH500-6001000-1200Max container volumeL12-3812-38Max neck diametermm12-3812-38Max container diametermm180180Max container heightmm350350ELECTRICAL SYSTEMNumber of lampPcs2448Max heating powerKw3662Installation powerKw3662Actual power consumingKw2032MACHINEMachine dimensionm3.25*1.65*1.84.2*1.8*1.9Machine weightT2.23.4Servo systemServo system optionClamping Servo with SEIMENS brand Transfer Preforms Servo Stretching Servo Feeding Performs Servo ConfigurationAutomatic blowing machine configurationItem Name of main spare partsBrand name1Touch Screen 2Computer PLC controller3Servo motor4Frequency Converters5Magnetic Valve6One-way valve7Muffler8Voltage regulator9Monolithic breaker 10Single Separator 11 Double Separator 12Air Cylinder 13Magnetic Switch Company information Workshop detail Our team Our exhibition FAQ Q1: How to find suitable plastic bottle blow moulding machine or complete water production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn Q2: What's the capacity of plastic bottle moulding machine?A2: We have full automatic and semi automatic unit with 800BPH to 2000BPH for 5000ml plastic bottle Q3: How to choose the capacity of blowing machine for water production line?A3: If you want 600-800BPH for 5000ml water production line, you can choose semiautomatic blowing machine or automatic one cavity blowing machine,if you want 1000-1200BPH, you can choose automatic 2 cavity blowing machine, if you want more bigger capacity, you can send me inquiry, we can give you more professional technical solutions. Q4: Are you a trading company or a manufactory?A4: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q4: Do you have technical support after we purchased your machines?A4: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
