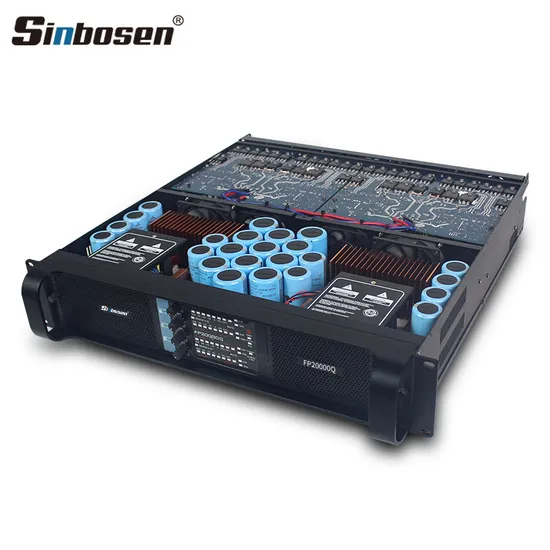

Sinbosen 4 Channel 4000W Fp20000q for 18 Inch Subwoofer Professional Audio Sound Power Amplifier Module
| US$600.00-738.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DS-20Q
Used For
Professional
Tube Type
Transistor Amplifier
Function
Post Amplifier, Amplifier Combined, Pre-amplifier
Sound Channel
4CH
Output Number
4
Voltage
110V & 220V
Element Number
Monoamplifier
Conductive Mode
D
Product Name
Fp20000q Power Amplifier
Class
Td Switching Power Amplifier
8 Ohm Stereo Power (RMS)
2200wx4CH
4 Ohm Stereo Power (RMS)
4000wx4CH
Frequency Response
20 Hz - 34 kHz
Signal-to-Noise Ratio
>112 Dba
Channel
4 Channel
Capacitor
3600UF 200V
Feature
New Cooling System/Big Power Amplifier
Application
Commercial, Professional Performance
Certificates
Ce, RoHS
Warranty
Three Years
Service
OEM ODM Support ;After-Sale Service
Transport Package
Strong Packing
Specification
65&60&15cm
Trademark
Sinbosen
Origin
Guangdong Province, China
HS Code
8518400090
Production Capacity
1000 Units/ Month
Packaging & Delivery
Package Size
52.00cm * 50.00cm * 10.00cm
Package Gross Weight
21.000kg
Product Description
Sinbosen 4 Channel 4000W Professional Audio Power Amplifier for 18 Inch Subwoofer Sinbosen Audio FP Series Amplifier Product Parameters| DS-7K | DS-9K | DS-14K | DS-6Q | DS-10Q | DS-20Q | DS-22Q | |
| 8 ohm Stereo Power (RMS) | 1500WX2 | 1800WX2 | 2400WX2 | 700WX4 | 1350WX4 | 2200WX4 | 2500WX4 |
| 4 ohm Stereo Power (RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1300WX4 | 2100WX4 | 4000WX4 | 4650WX4 |
| 8 ohm Bridged Power (RMS) | 5600W | 6000W | 8800W | 2500WX2 | 4200WX2 | 8000WX2 | 9300WX2 |
| 4 ohm Bridged Power (RMS) | 7000W | 9000W | 14000W | 3000WX2 | 5000WX2 | 9000WX2 | 15000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω): | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz : | >70 dB | ||||||
| Input Connectors (per channel): | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel): | Binding Posts 2-pole | ||||||
| Class: | TD | ||||||
| TourClass Protection: | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal: | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB): | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance: | 20 kOhm | ||||||
| Level adjustment (per ch.): | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
| Feature |
| 4 Channel Class TD Switching power amplifier 4 x 2200 Watts into 8 Ohms,4 x 4000 Watts into 4 Ohms Create SUPER sound quality,good for dual 18" subwoofer Separately controllable on Gain Scalable Voltage Peak Limiter (VPL) Bridge-mode operation for Touring Applications Comprehensive protection scheme Use high quality capacitor 12pcs 3600uf 200V +12pcs 2200uf 200V Use Original ONSEMI transistor Original Neutrik XLR*/Speakon connectors High efficient cooling.Totally 12pcs Fans built-in; Temperature protection;Over current protection;Short circuit protection built-in |
Product Detail
New heat sink
We upgrade cooling system, added 8 fans on the rear panel. Enhance the heat dissipation capability of the amplifier.
Capacitor Upgrade
√The 12 large capacitors are upgraded from 3300UF 200V to 3600UF 200V.
√The original 8 small capacitors 2200UF 200V were upgraded to 12 small capacitors 2200UF 200V.
The amplifier power supply board is better than before, it will make your subwoofer bass sound quality more loud and powerful.
Why choose us?
1.Three years warranty, free accessories. If there are quality problems,provide pictures or video, engineers judge the problem and provide after-sale support Products with CE ROHS certification.
2.We are 10 years manufature about professional audio speaker and power amplifier. Our engineers have 10 years work experience, very professional.
3.The product is light and suitable for performance and conferences.
4.There is no minimum order quantity limit ,you can choose to order 1pc or 1000000pcs.No limit about quality.
5.Products with CE ROHS certification.
If you are interested in our products, please contact us
