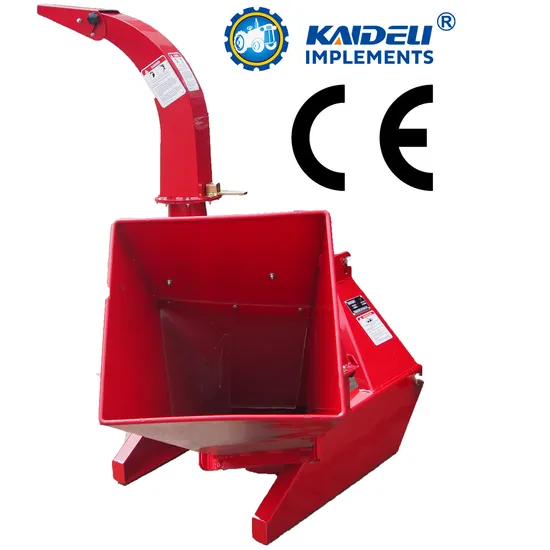

Normal Type Forest Machine Wood Chipper

Product Description

* The minimum order quantity is 5 units.
Indicates that an order requires a minimum order quantity (which can be different models or types), not a minimum order quantity of 5 units for that model
Product Description
1. Rotor
At the heart of the Kaideli BX Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 6" diameter tree trunks.
2. Blades
The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper.
3. Air Vents
Blowing force is maximized with air intake vents on the side of the chipper. Air enters through the vents and powers the chips out the chute up to 20 feet.
4. Twig Breaker Blower Paddles
Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.
5. Adjustable Chute
Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance.
6. Mounting Configurations
There are three different mounting configurations available for the BX Wood Chipper; A three point hitch, skidsteer mount and trailer.
7. Self-feeding Hopper
The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper.

Product Parameters

Model	BX42
Chipper Capacity	100mm/ 4''
Chipper Housing Opening	4''x10''
No. of Knives	4
Rotor Size	25''
Feeding System Feed	Self Feed
Hopper Folded	40''Lx42''Wx60''H
Hopper Opening	20''x20''
Mounting System	3 Point Hitch
Discharge Hood Rotation	360°
Discharge Hood Height	60''
Net Weight	175kg
Gross Weight	210kg
Tractor HP	25-45hp

Detailed Photos
