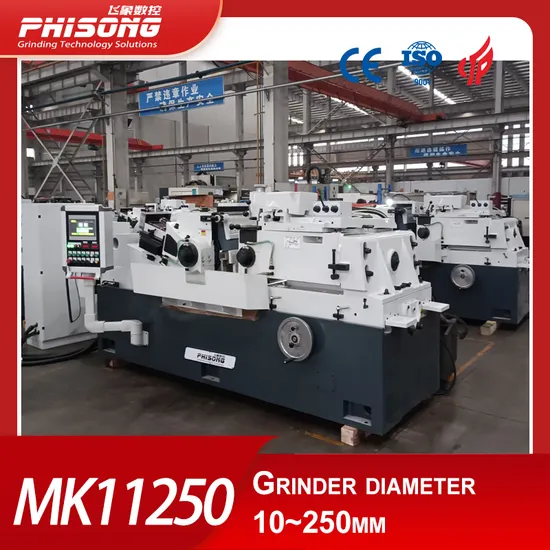

China Factory Reasonable Price Centerless Grinding Machine Cylindrical Grinder Mk11250

Product Description

Product Description
Casting, natural aging and artificial heat treatment for reasonable deformation and better durability.
1.2 GW and RW(Regulating wheel)
GW 600mm in diameter, 600mm wheel width for larger grinding amount and higher efficiency.
GW and RW movable, double supported structure, both double supported structure , with better reliability and stability.

1.3 Feeding Schneberg linear guide-rail for motion sensitivity, easy micron feed, vibration resistance.
Servo motor drives ball-screw through shaft coupling, min. feeding amount 0.001m
1.4 Dressing for GW and RW

GW dresser: Servo motors drive ball-screws for GW dresser feeding and reciprocating.
RW dresser:Hydraulic transimission for reciprocating,step-less speed adjusting, manual dial for RW dresser feeding
1.5.Cooling
Cooling tank with magnetic coolant separator.
1.6.Electric Converter for RW motor, step-less speed adjusting.
Operation panel with dials and touch screen for
grinding, dressing,feding, etc. Adjusting.
Mitsubishi PLC control system, Siemens for optional



1.7.Technical Data:

		3 Axes
In-feed Grinding	Dia.	10-250mm
	Length	590mm
Through grinding	Dia.	10-250mm
GW SPEC. (O.D.*width*I.D.)		600*600*305mm
RW SPEC.(O.D.*width*I.D.)		350*600*203mm
GW Speed		1110r/min
RW Speed (stepless)		10-200r/min
Swiveling Angle of RW	Vertical	-2°~ +4°
	Horizontal	0°~ +3°
GW min feeding amount		0.001mm
GW dresser min feeding amount		0.001mm
Height from center line of GW & RW to work rest		335mm
Cooling water flow		200L/min
GW Motor		45kw
RW Motor		3kw
Power Supply		3N 60HZ 440V
Dimension(L*W*H)		3700*1850*1820mm
Machine Weight		About 11 tons
Accuracy (standard bars)	Roundness	0.002mm
	Cylindricity	0.005mm
	Roughness	Ra.0.32μm

3.Main Accessories:

Name	SPEC.	QTY	Unit	Brand
Control system PLC	Q sery	1	set	Mitsubishi
Servo motor		3	set	Mitsubishi
Operation display screen	10'	1	set	Weilun
Ball screw		3	set	Nanjing
Converter for RW	3.7KW	1	pc	Mitsubishi
RW motor	2.2KW	1	pc	Wannan
GW motor	30KW	1	pc	Wannan
low-voltage apparatus		1	set	Schneider
