Heavy Duty Lifting Stage for Scissor Type Operations and Equipment Efficiency

Product Description

Product Description
1,1. Perfectly engineered for scenarios where the lifting platform must descend to its lowest height, accommodating extensive strokes and substantial loads with exceptional ease.
2. Achieves a remarkable maximum lifting speed of 0.3m/s, ensuring swift and efficient operations.
3. Ascends with an impeccably smooth and uniform speed, guaranteeing seamless operation throughout.
4. Delivers precise positioning and outstanding synchronization accuracy for optimal performance.
5. Driven by either electronic or hydraulic motors, this system boasts a maintenance-free lifespan, offering reliable service without the hassle.
6. Features a straightforward installation process and an easy model selection, promising low maintenance costs and user-friendly operation.
7. Designed with safety, eco-friendliness, and minimal noise in mind, ensuring a peaceful and clean working environment.

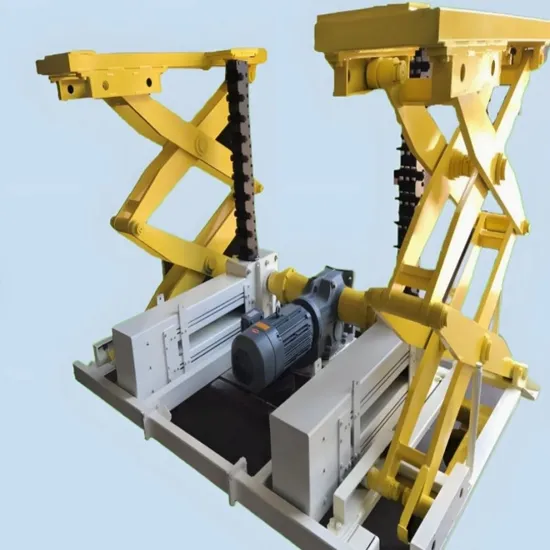

2,The ingenious Chain Link Transmission Lift operates by transforming the horizontally moving chain links within the storage box into vertical motion. These links then create vertical rigid columns capable of bearing substantial vertical loads, effectively achieving vertical lifting with precision.
Detailed Photos
Product Parameters

DYN Load-Pitch of Chain Link
model		07A	11A	15A	19A	23A	27A	31A		35A	39A	47A	53A	63A	71A	77A
trip (m)		DYN Load (kN)
0		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.30		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.50		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.80		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.00		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.20		4.3	12	25	39	57	78	98		134	173	222	280	360	450	650
1.40		3	9	25	39	57	78	98		134	173	222	280	360	450	650
1.60			7	25	39	57	78	98		134	173	222	280	360	450	650
2.00			4	17	39	57	78	98		134	173	222	280	360	450	650
2.50				11	26	57	78	98		134	173	222	280	360	450	650
3.00					18	55	78	98		134	173	222	280	360	450	650
3.50						40	78	98		134	173	222	280	360	450	650
4.00						30	78	98		134	173	222	280	360	450	650
4.50						23	63	98		134	173	222	280	360	450	650
5.00							50	82		134	173	222	280	360	450	650
5.50							40	67		134	173	222	280	360	450	650
6.00							33	55		118	173	222	280	360	450	650
6.50								46		99	159	222	280	360	450	650
7.00								38		84	136	202	280	360	450	650
7.50										72	117	173	280	360	450	650
8.00										62	101	150	280	360	450	650
8.50										53	88	131	258	360	450	650
9.00											76	115	226	360	450	650
9.50												99	200	360	450	650
10.00												80	178	330	450	650
10.50													159	295	450	650
11.00													142	265	450	650
11.50													127	240	450	650
12.00														220	450	620
12.50														195	420	580
13.00														180	390	540
13.50														165	360	500
14.00															330	460
14.50															300	420
15.00															280	380
16.00															260	345
	Please call us for confirmation when selecting model of this color parameters.								The color or above parameters can be selected according to the design.

Certifications
Packaging & Shipping
Company Profile
Project:SHANGHAI EAST CHINA NORMAL UNIVERSITY Marvel at the engineering marvel of our double-deck stage steel structure with its protective fence top. A powerhouse ensemble of 45 lifting booms and 9 synchronous receivers ensures unparalleled performance. Complementing this setup, a movable counter adds versatility, while four robust lifting stages stand ready for action.
Witness harmony with the lifting orchestra, alongside a dedicated set of lifting railings and a formidable steel fire curtain, accented by another impressive array of 45 lifting booms..
Project:Shanghai Wild Animal Park Experience the epitome of innovation with our double-deck stage steel structure featuring a secure fence top. The configuration includes 45 lifting booms and 9 synchronous receivers, along with a movable counter and four lifting stages, ready to elevate any event.
Delight in the symphony of our lifting orchestra, coupled with precision-engineered lifting railings and a steel fire curtain, all orchestrated with an impressive 45 additional lifting booms.
Project:Hengdian Film and Television Qinhuai Eight Beauties Theater Discover an architectural wonder with our stage steel structure fence top, 46 stage booms, and a front single-point stage configuration of five sets. This dynamic setup is protected by a vital steel fire curtain, enhanced by a lifting orchestra for an unforgettable show.
The arrangement includes an orchestra lifting railing, two versatile platforms, and a duo of platform compensation solutions for optimal performance.
1. Company Overview
Wanying Technology (Taizhou) Co., Ltd., since its inception in 2014 in the scenic city of Taizhou, has thrived as a medium-sized industrial force. Guided by a commitment to 'customer first, innovation, integrity, optimism, and resilience,' we relentlessly push boundaries and pioneer advancements in foreign trade and industrial manufacturing.
2. Core Business
2.1 Foreign Trade
At the heart of our operations, Wanying Technology excels in foreign trade, continuously expanding its global footprint. Through fostering enduring alliances with renowned international enterprises, we have carved a formidable reputation, with our products reaching shores worldwide. Our strategic focus on optimizing supply chain management and elevating service excellence ensures delivery of superior trade solutions, time after time.
2.2 Industrial Manufacturing
In the realm of industrial manufacturing, Wanying Technology boasts cutting-edge production resources and a skilled technical team, dedicated to crafting top-tier industrial products. By staying attuned to industry trends and advancing product innovation, we fulfill the dynamic and varied demands of the contemporary market.
3. Innovation and Technology
Emphasizing innovation, Wanying Technology invests significantly in technology research and development. Our collaborations with prestigious universities and research institutions are pivotal, propelling technological breakthroughs and driving industrial evolution, ensuring we remain at the forefront of the industry.
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working conditions are different, all our products are customized depending on detailed requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a exact quote!
2.What the information should I provide when inquirying?
Thanks for your question. The more information you provide, the accurater solution we can prepare for you! It will be more
appreciated if you give us the information such as the lift capacity, span, lift height, power source or other specials.
3.How many operation methods for my selection?
Thanks for your question. The standard operating methods is controller with push buttons. Meanwhile, we can also provide the group controller.You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane OK for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional engineer.
