Universal Horizontal Milling Machine with Rotary Worktable
Basic Info.
Model NO.
XL6136
Type
Knee-and-Column Milling Machine
Object
Tool
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Pallet
Specification
XL6136
Trademark
Allway
Origin
China
HS Code
84595900
Production Capacity
2000PCS/Year
Product Description
XL6136 Milling MachineFeatures:
1.X,Y,Z axes guideways are hardened and precision ground. Y,Z axes are extra-wide rectangle guideways.
2.X,Y,Z axes can be manual feed and covergent power feed.

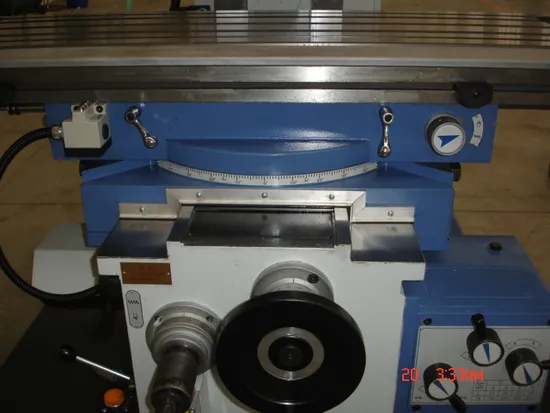

3.The worktable can rotale ±450.
Main Accessories
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| Middle sleeve(ISO50/MS4) | Digital readout system(DRO) |
| Lnner-hexagon spanners | Machine vice(200mm) |
| Dead head spanners | 58pcs/set clamping kits(M16) |
| Mill arbor(27mm,40mm) | Horizontal/vertical rotary table(TSL320) |
| Draw bar | Universal dividing head(F11 125A) |
| Cooling system | Vertical mill head |
| Lubricate system | Middle sleeve(MS4/MS3,MS4/MS2) |
| Work lamp | Reduction sleeve(ISO50/MS4,MS4/MS3,MS4/MS2) |
| Mill arbor(22mm,32mm) |
Main technical parameters
| Specification | Unit | Technical parameters | |||
| Spindle taper | 7:24 ISO50 | ||||
| Distance from spindle center Line to worktable | mm | 0-420 | |||
| Distance from spindle center Line to arm | mm | 175 | |||
| Spindle speed | rpm | (12steps )60-1800 | |||
| Worktable size | mm | 1250×360 | |||
| Worktable max.rotate angle | ±450 | ||||
| Worktable travel | Longitudinal | Manual | mm | 600 | |
| Power | mm | 600 | |||
| Cross | 250 | ||||
| Vertical | mm | 420 | |||
| Worktable Longitudinal/Cross power feed | 8steps 22-550mm/min Rapid:810mm/min | ||||
| Worktable elevating power feed | mm/min | 8steps 22-550mm/min Rapid:810mm/min | |||
| Worktable"T"slot | Number | 3 | |||
| Width | mm | 18 | |||
| Distance | mm | 80 | |||
| Ram travel | kg | 300 | |||
| Main motor | kw | 4 | |||
| Worktable power feed motor | kw | 0.75 | |||
| Coolant pump | kw | 0.09 | |||
| Coolant flow | L/min | 25 | |||
| Overall dimension(L×W×H) | mm | 1880×1700×1830 | |||
| Net weight | kg | 2000 | |||
