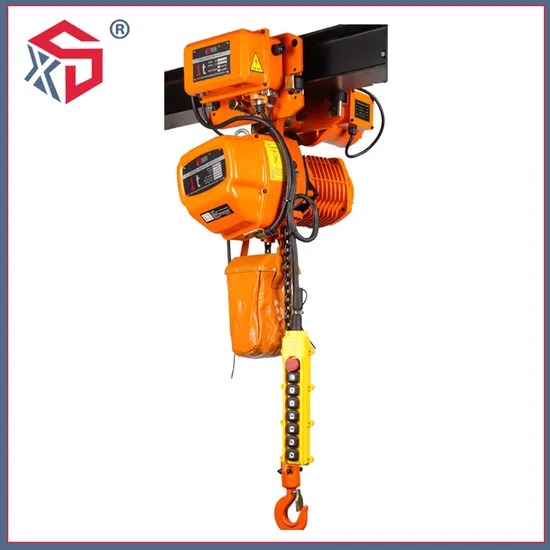

1ton Single/Double Speed Electric Chain Hoist with Electric Trolley

Product Description

Product Parameters

MODEL	ACTUAL LOAD	MOTOR POWER(KW)	NO.OF LOAD CHAIN	DIA/WEIGHT OF CHAIN(MM)/(KG)
0.5T	0.625	1.1	1	Φ6.3/0.6
1T	1.25	1.5	1	Φ7.1/1.1
1T	1.25	1.1	2	Φ6.3
2T	2.5	3.0	1	Φ10.0/2.2
2T	2.5	1.5	2	Φ7.1
3T	3.75	3.0	1	Φ11.2/2.68
3T	3.75	3.0	2	Φ10.0
3T	3.75	1.5	3	Φ7.1
5T	6.25	3.0	2	Φ11.2
7.5T	9.375	3.0	3	Φ11.2
10T	12.5	3.0*2	4	Φ11.2
15T	18.75	3.0*2	6	Φ11.2
20T	25	3.0*2	8	Φ11.2
25T	31.25	3.0*2	10	Φ11.2
32T	40	3.0*2	12	Φ11.2
50T	62.5	3.0*2	20	Φ11.2

Product Description
Xiongshi HHBB electric chain hoist include electric trolley type, hook type and low headroom type. Brake device can achieve instantaneous braking when the power is cut off. Chain bag is light, handsome and durable. Lifting chain is high-strength for high safety factor and long service life. Xiongshi HHBB electric chain hoists are industrial grade products which characterized by low noise, fast lifting speed, stable operation, simple control and easy installation. The limit switch makes the motor stop automatically, preventing the chain from exceeding and ensuring safety.
Detailed Photos
Certifications


Packaging & Shipping

Company Profile

FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized dependingon detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!

2. What's the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.

3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

4.The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

5. What's the information should I provide when inquiry?
a. What's the lifting material?
b. How much is the maximum lifting weight of the hoist?
c. Have you installed the rails? Do you need us supply the rails? How long is it?
d. Where are the working environment?
