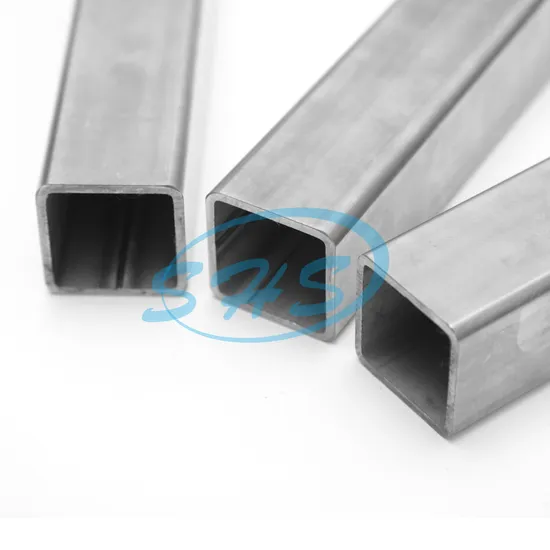

SUS304 ASTM A554 Stainless Steel Square Pipes with Polishing for Building Railing
| US$2,800.00 | 2 Tons (MOQ) |
Basic Info.
Model NO.
Welding Pipes
Type
Welded
Technique
ERW
Material
Stainless Steel
Surface Treatment
Polished
Usage
Construction & Decoration, Special Purpose
Section Shape
Square
Surface Finish
No.1, Hairline, Polishing, Plated, Mirror
Size
10 mm X10 mm - 200 mm X 200 mm
Length Per Pieces
500mm to 12000mm
Material Grade
300 Series
Transport Package
PVC Bag + Weaving Bag, Wooden or Steel Case, etc.
Specification
Normal
Trademark
SHS
Origin
Foshan, Guangdong
Production Capacity
100000 PCS / Month
Product Description
| Item Name: | Stainless Steel Welded or seamless Square Tubes for Handrail | ||||||||
| Standard: | ASTM A554 or A312 | ||||||||
| Grade of Material: | AISI 201, 202, 304, 304L, 316, 316L, etc. | ||||||||
| Certificate: | ISO 9001: 2008 | ||||||||
| Dimension: | 10 mm x 10 mm - 200 mm x 200 mm (See Range Below) | ||||||||
| Wall Thickness: | 0.3 mm - 5.0 mm | ||||||||
| Surface: | Polished 320 G, 400 G, 600 G; Hairline; Descaled. | ||||||||
| Length: | 10 mm - 10000 mm | ||||||||
| Packing: | Each or several tubes (pipes) would be sleeved in plastic bag individually, and then a bundle of them would be packed by a weaving bag which is seaworthy. | ||||||||
| Application: | Decoration, construction & building, such as handrail, railing, window, furniture, etc. | ||||||||
| Chemical Composition: | Grade of Material | C | Si | Mn | P | S | Ni | Cr | Mo |
| AISI 201 | ≤0.15 | ≤1.00 | 5.50~7.50 | ≤0.060 | ≤0.03 | 1.00 ~1.50 | 13.50~15.00 | \ | |
| AISI 202 | ≤0.15 | ≤1.00 | 7.50~10.00 | ≤0.060 | ≤0.03 | 4.00~6.00 | 17.00~19.00 | \ | |
| AISI 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~11.00 | 18.00~20.00 | \ | |
| AISI 304L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~13.00 | 18.00~20.00 | \ | |
| AISI 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | |
| AISI 316L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | |
| Mechanical Property: | Grade of Material | Elongation (%) | Tensile Strengh (Rm) N/m m³ | Yield Strength (Rp) 0.2%N/m m³ | Hardness (HV) | ||||
| AISI 201 | ≥35 | ≥520 | ≥210 | ≤253 | |||||
| AISI 202 | ≥35 | ≥590 | ≥210 | ≤218 | |||||
| AISI 304 | ≥35 | ≥520 | ≥210 | ≤200 | |||||
| AISI 304L | ≥35 | ≥480 | ≥180 | ≤200 | |||||
| AISI 316 | ≥35 | ≥520 | ≥210 | ≤200 | |||||
| AISI 316L | ≥35 | ≥480 | ≥180 | ≤200 | |||||
Our Advantages:
1. High-quality products as per certificate ISO 9001: 2008.
2. Good services to satisfy you.
3. Timely delivery for your orders.
4. Samples are available as per your request.
Stainless steel square tube normal sizes:
Packing items as follows:
