Customized Full Automatic Steel Structure Layer House Equipment Kxd-LC301

Product Description

Product Description

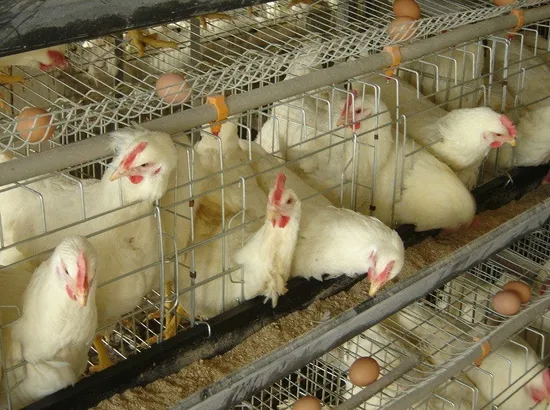

Layer Egg Chicken Cage--HLD-4192
Farming Qty(birds)	Qty/Unit	Layout Plan			House Dimension(m)
	(birds)	line	Unit/Line	Total Unit
10,000	192	2	27	54	59*8*4
20,000	192	3	35	105	74*12*4
30,000	192	3	53	159	107*12*4
40,000	192	4	53	212	107*14*4
50,000	192	5	53	265	107*17*4

Product Details
Our Automatic Poultry Farm Equipment Consists of:
1.Automatic Main Feed Delivery System2.Automatic Pan Feeding System3.Automatic Nipple Drinking System4.Ventilation System5.Environment Control System6.Cooling Pad System7.Spraying System8.Heating System 9.Curtain System Generally the height of poultry houses is between 2.5m-3.5m (at eaves).The width of the poultry houses is decided according to then layout of equipment inside and cannot be too large considering ventilation. Steel structure poultry houses are usually designed with the width of 8-15m. Length is better no larger than 140m. Our Advantages

More details

We supply the whole system for Automatic Chicken Raising

Steel Poultry House

Items		Specification
Main Steel Frame	Column	Q235, Q345 Welded H Section Steel
	Beam	Q235, Q345 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
	Knee brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system	Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
	Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
	Door	Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
	Rainspout	PVC
Live load on Roof		In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade		12 Grades
Earthquake-resistance		8 Grades
Structure Usage		Up to 20 years
Finishing Options		Vast array of colors and textures available
Paint Options		Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

1. Main Feed Delivery Line (1. )Main feeding system is a complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a feed level sensor. (2) Main Feed Line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding

Manpower hopper or silo	600/800kg hopper, 5/8/10/15/18/20mt silo
Motor	Taiwan brand
	Voltage: 380V, three-phase/220V, single-phase/others
Main feed line	Diameter of pipe: 75mm
Auger	Origin: South Africa
	Feeding ability: 1400Kg/h (maximum)
Sensor	Origin: Germany

Different specifications of silos are alternative to choose according to the daily consumption. Material of silo consist of galvanzied sheet and glass fiber reinforced plastic. *If you don't use silo, you can use manpower hopper. Usually, if you just build one or two chicken house ,we suggest you use hopper instead of silo.
2. Automatic Pan Feeding Line System

V-shape bin (with hopper)	Bin volume: 100L
Motor	Power: 0.75Kw/1.1Kw/1.5Kw
	Voltage: 380V, three-phase/220V, single-phase/others
Delivery pipe	Diameter of pipe: 45mm
	Material: hot-dip galvanized steel
Auger	Origin: South Africa
	Feeding ability: 450Kg/h (maximum)
Feed pan	Pan distance: 4 pans/3m, 3 pans/3m
	Raising ability: 45-55 birds/pc
	Material: pure engineering plastic
Sensor	Origin: Germany
Suspension &lifting device	We can adjust the feeding line by winch.
Anti-perching device	It prevents birds staying on the feeding line for too long.

*There is a sensor at each feeding line which controls motor on and off to achieve automatically feed delivery. The motor will start working and deliver feed when the feed pan (with sensor) lacks feed and will stop working when the feed pan (with sensor) is full of feed.
3. Automatic Nipple Drinking Line System This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

Waterline front system	filter
	pressure regulating valve
	water meter
	medicator(doser)
Water pipe with nipple drinker and drip cup	Nipple distance: 16 nipples/4m, 12 nipples/3m
	Raising ability: 8-12 birds/pc
	Nipple material: inside valve is made of stainless
	steel, shell is made of plastic
	Drip cup material: pure engineering plastic
Suspension lifting device	We can adjust the drinking line by winch.
Waterline end module	water display tube, etc

4. Automatic Ventilation Fan System

Specifications	50'' box fan	36'' box fan
Flow amount (m3/h)	41000	20800
Size (L*W*H) (mm)	1380*1380*450	1000*1000*450
Noise level	≤65DB	≤64DB
Power	1.1Kw	0.4Kw
Voltage	380V/220V/others	380V/220V/others
Current	2.8A	1.6A
Weight	88Kg	66Kg

*The system controls climate condition, can provide fresh air, proper humidity and temperature for birds, ensuring your chickens provide maximum production.*The system including ventilation fan (box fan or butterfly cone fan) and air inlets.*If your chicken farm is open, there is no need to use 36'' fan and air inlets, however, youmight need curtain system.
5.Cooling Pad System: Thickness:100mm; 150mm Width: 600mm Height(with frame):1660mm;1960mm;2160mm Frame: Galvanized sheet/Aluminium alloy *When the air goes through the pad, the heat will be took down by the evaporation of water, so the air will be cooled before going into the chicken farm. 6. Environment Control System *The system saves labor and resources under the condition of assuring the optimum growth environment of chickens. *It is imported from Israel can set an optimum working mode according to the local climate and raising environment. 7. Spraying and Disinfecting System *It's effective tool for cooling, damping, dedusting and disinfecting the house.(the tem-Perature is quickly reduced by 3-8 degrees centigrade within a few minutes) 8.Heating System(Heater): *Proper temperature is critical to chickens, especially day-old chicks, we have different kinds, they fire coal, diesel, gas or use electricity, 4 kinds for your option. 9.Curtain System: *In some tropical zone, the farmers are inclined to use curtain instead of real walls(open farm), they will use big fan accordingly. *Our curtain have two kinds for your choice, manual operated one and motorized one. 10.Plastic Floor Covering System: *Plastic floor covering system is the best cooperation of auto manure cleaning system. *Our floor is 100% raw material can guarantee a long using life.
Packaging & Shipping

FAQ
Q1: What are your main products?
A: Our main products are divided into 2 parts, Steel Structure Building and Poultry Equipment.
Steel Structure Building: Workshop, Warehouse, Factory, Exhibition Hall, Profabricated Poultry House, Steel Structure Frame and Container House, etc.
Poultry Equipment for Chicken(Layer, Broiler, Breeder, Pullet), Duck, Pig, Goat, Rabbit, Quail, Pigeon, Cattle, etc.
All products can be customized as your demand.
Q2: What information should I provide before quotation?
A:
1 Location (Where the poultry house will be built?) _____country, area
Or Local Climate: Extreme Temperature _____Lowest_____Highest
2 House Size(for equipment arrangement): Length*Width*Height _____mm*_____mm*_____mm
Or Breeding Quantity: _____Chicken & Breeding density _____unit/m2
3 Voltage_____V, Power: single-phase or three-phase, _____Herz
4 Any other special requests.

Q3: What kind drawing will you provide?
A: Plan Drawing, Elevation Drawing, Sectional Drawing, Foundation Drawing and Installation Drawing.

If you are interested in us, please kindly find the dimensions needed for poultry equipment(Q2) for your reference. Our team will provide the best layout as your demand. Thnaks
