Product Description

Product Description
The automobile tailgate of Sumel Co., Ltd. spans multiple industries such as logistics, express delivery, transportation, and warehousing, demonstrating its excellent adaptability. Whether your vehicle is a large truck, a container truck or a small truck, our tailgate can handle it easily, bringing you an efficient and convenient cargo loading and unloading experience, and significantly improving the overall operational efficiency of the logistics industry.
We are committed to meeting the diverse needs of our customers, so we have a wide range of tailgate products.
..The cantilever tailgate is popular among users for its unique design and stability.
..The foldable tailgate is a great helper in the logistics field with its convenient storage and deployment functions.
a dual-cylinder, parallel-arm design which utilizes a pair of hydraulic cylinders to lower and raise the lift by applying direct power to both sides of the platform.
Product Parameters
Our material is Q700, which is an ideal choice for carrying heavy objects and long-term use due to its high strength and wear resistance.

Load capacityin kg	Hoist hydraulics	Dead weightfrom kg	Load distancein mm	MountingHead coupling	PermittedTotal weight in t
750	1x lifting cylinder / 1x lock cylinder	168	600	possible	3.5/5.5/7.5
750	1x lifting cylinder / 1x lock cylinder	167	600	possible	3.5/5.5/7.5
750	1x lifting cylinder / 1x lock cylinder	160	600	possible	3.5/5.5/7.5
750	1x lifting cylinder / 1x lock cylinder	168	600	possible	3.5/5.5/7.5

DIMENSIONS

Platform heightin mm (special dimensionspossible)	Lifting armlengths in mm	Maximum loadingheight unloaded in mm	Minimum loadingheight loaded in mm	Offset dimensionof the platform in mm
1450 / 1600	575 / 650	1100	700	580
1450 / 1600	575 / 650	1100	700	580
1450 / 1600	575 / 650	1100	700	580
1450 / 1600	575 / 650	1100	700	580

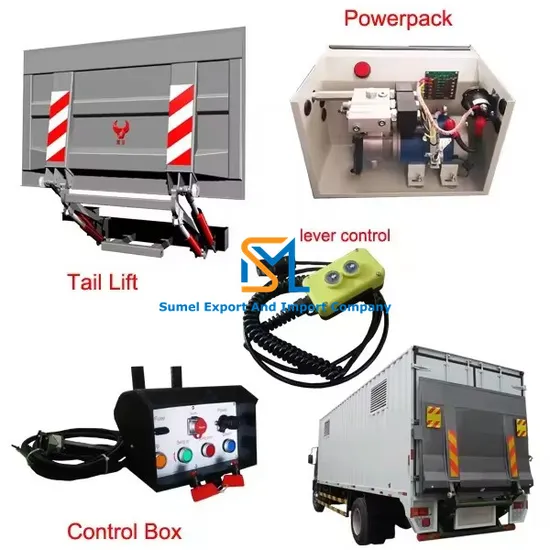

Our packs Our power packs are completely tested,adjusted and filled with oil and equipped with electrical controls.this helps to reduce installation time and keeps it to a mininum.use truck's power,no need extra power. Two of the most important parts,in a power pack,is the motor and pump .We focus more attention on these parts as they are most vulnerable parts. Oil Cylinder We use good hallite seals to ensure excellent sealing performance of the oil cylinder. The piston rod has undergone high-frequency quenching and hard chrome plating treatment, greatly improving its wear resistance and service life.
Truck Body Fabrication Equipments: Heavy Duty Steel /Aluminum liftgate
Truck Body Fabrication Equipments: Heavy Duty Steel /Aluminum liftgate Sumel Import and Export Co., Ltd. presents a robust steel dump body specifically crafted for Heavy Duty Steel /Aluminum liftgate. This fabrication equipment comes with a 3-year warranty, automatic transmission, and a readily available supply of spare parts, ensuring unmatched reliability and strength.
