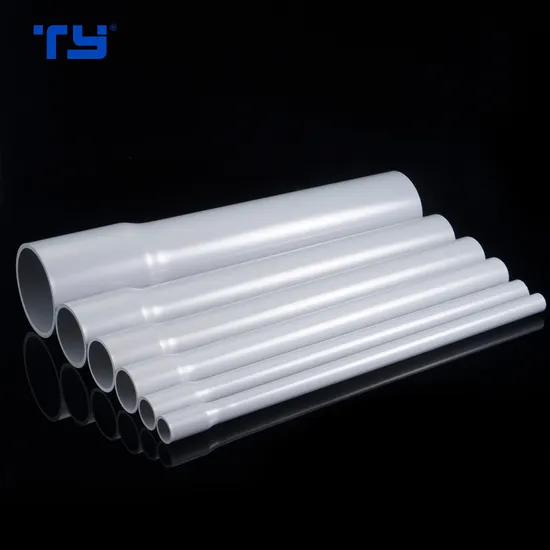

UL 1/2′′-8 Inch PVC Rigid Sch 40 Sch80 Electrical Conduit PVC Pipe UL651 CSA Electrical Tube

Product Description

Trade Size	Outside Diameters ( inch - mm )		Minimum Wall Thickness ( inch - mm )
inch - mm	Maximum	Minimum	Schedule 40	Schedule 80
1/2 - 16	0.848 - 21.54	0.832 - 21.13	0.109 - 2.77	0.147 - 3.73
3/4 -21	1.060 - 26.92	1.040 - 26.42	0.113 - 2.87	0.154 - 3.91
1 - 27	1.325 - 33.66	1.305 - 33.15	0.133 - 3.38	0.179 - 4.55
1-1/4 - 35	1.672 - 42.47	1.648 - 41.86	0.140 - 3.56	0.191 - 4.85
1-1/2 - 41	1.912 - 48.56	1.888 - 47.96	0.145 - 3.68	0.200 - 5.08
2 - 53	2.387 - 60.63	2.363 - 60.02	0.154 - 3.91	0.218 - 5.54
2-1/2 - 62	2.890 - 73.41	2.860 - 72.64	0.203 - 5.16	0.276 - 7.01
3 - 78	3.515 - 89.28	3.485 - 88.52	0.216 - 5.49	0.300 - 7.62
3-1/2 - 91	4.050 - 102.87	3.950 - 100.33	0.226 - 5.74	0.318 - 8.08
4 - 103	4.550 - 115.57	4.450 - 113.03	0.237 - 6.03	0.337 - 8.56
5 - 129	5.613 - 142.57	5.513 - 140.03	0.258 - 6.55	0.375 - 9.52
6 - 155	6.675 - 169.54	6.575 - 167.00	0.280 - 7.11	0.432 - 10.97

INTRODUCTION
The main raw material of PVC-U piping network is PVC resin, which is added moderate stabilizer, lubricant, fillers, and toner. After the process of mixing, extrusion, sizing, cooling, and cutting, the PVC-U pipe can be made. The PVC-U fittings are made by injection. The PVC-U material doesn't readily conduct electricity, which can undertake more than 25KV voltage. The PVC-U material has very good chemical properties, physical property and insulating property, which can suit for most of the normal insulation protection application. This series of PVC-U insulting electrical pipes and fittings are suit for CSA & UL & ETL standard. FEATURES OF PRODUCT
High Insulating Property: PVC-U material resists the electricity, which can undertake more than 25KV voltage. High Impact Resistance: This material of pipes and fittings can suit to be laid in the concrete. Non - flammable: PVC-U material has high limiting oxygen index, which is very difficult to burn, and has died out by itself, when it is away from the fire. Corrosion Resistant: PVC-U material has strong resistance to most of acid and alkali. No rust, no antiseptic treatment. The service life is 4 times than that of cast iron. Light Weight and Easy Installation: Weight is very light. The density of PVC-U is only 1/5 to 1/6 of that of cast iron. The method of connection is very simple, and the process of installation is very quickly. High Tensile Strength: PVC-U has high tensile strength, and high shock strength. The piping network of PVC-U is not easy to break, and it works safety. Long Service Life: The piping network with normal material can be used around 20 to 30 years, but the PVC-U piping network can be used longer than 50 years. Cheaper Prices: The price of PVC-U piping network are cheaper than that of cast iron. FIELDS OF APPLICATION
Piping networks for power or lighting in building. Piping networks for being laid in the concrete or wall. Piping networks for post, telecommunications, and network cabling.
SERVICE
1. We are a manufacturer of plastic tubes and fittings. We accept OEM business.
2. We supply stop valve,pipe end cap,equal/reduceing tee,cold hot water ball valve,union ball valve,threaded elbow(plastic or with metal) and so on.
3. We also supply the connectors Accordingly.
4. We can offer you very competitive prices for some pipes.
5. We welcome you to visit our web and our factory. Your visiting will be highly appreciated.
6. It is my pleasure to help you.
7.If you need more customized services and offers,Please Contact Us.


MORE PRODUCT
OUR ADVANTAGE
1.high quality&industrial leading price
2.quick order processing & on-time delivery
3.extremely long usage life for at least 5 years
4.innovative & customer-oriented
5.rich experience in exportation
6.best quality & best service with competitive price
7.easy and fast installation, making cost minimized
8.healthy and non-toxic, free of stain,recycable, enviromentally friendly
9.Modern technical equipment in combination with proficient manual work.
10.Lightweight, convenient to transport and handle, good for labor-saving.
ABOUT TIANYAN
(1) Tianyan Factory
It is a well-known solution provider for plastic piping system in the world,whose customers come from more than 60 countries and regions.Building piping system application,industrial piping system application,agricultural piping system application,and their professional solutions are the mainly business
(2) Customization
(3) Social Responsibility
(4) 6S Management
(5) Certificate
(6) Process Quality Control
(7) Each Process is CareFully Made
(8) Packing & Delivery
FAQ
1. Are you a manufacture or trading company?
We are a well-known solution provider for plastic piping system in the world with 26 years professional experience. Welcome to visit and investigate us, you would find the difference with others.
2. Do you offer OEM service?
Yes. We have our famous brand name. But we can offer OEM service also, with same quality. We can review and accept customer design, or design based on customer requirements, by our professional R&D team.
3.Why Choose Us?
Trust in our experience.
We supply many different standards professional products for more than 60 countries and areas in the world.
Trust in our authority.
We had many professional inspections and certificates. We had passed inspections of CE, SGS, and get the certificates of ISO 9001, ISO 14001, OHSAS 18001, and WRAS, and so on.
Trust in our solutions.
We have professional R&D team, QA&QC team, marketing team. We have many patents and awards, can supply highest quality OEM products, and help you and do with you to settle any kind of logistical problems.
Trust in our production capacity.
We have more than 30 pipe extruding machines, and 200 injection molding machines. And those figures still increase each year.
Trust in our financial management capacity.
We obtain the "Zhejiang Top Export Brand" by government. We have the ability to make each your US cent efficient. Each cent, which you pay us, would be worth.
4.How to Get a Sample?
Please apply sample.
We can apply free sample for inspection, after the prices confirmed.
Sample is free.
We would supply you sample for free, and freight is collected, if you need a sample to confirm. You also can pay freight to us in advance, and let us prepaid freight, if you thought the prepaid freight is lower than collected freight.
Freight is free.
We will undertake the freight, and pay the money into your deposit, if you give the order to us finally.
