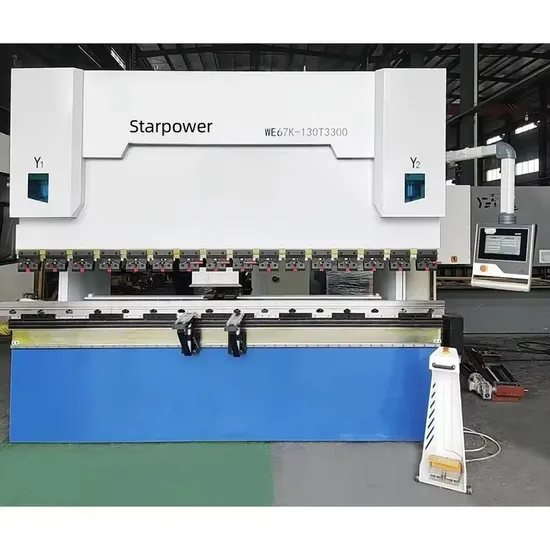

Efficient Operation Method of Sheet Metal CNC Bending Machine

Efficient Operation Method of Sheet Metal CNC Bending Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
SP-0955
Warranty
1 Year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Semi-Automatic
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Hydraulic Bending Machine
Nominal Pressur
630kN
Slide Stroke
120mm
Openingheight
800mm
Power
5.5kw
Transport Package
Film
Specification
30T
Trademark
Star Power
Origin
China
HS Code
8462299000
Production Capacity
50units/Month

Product Description

Product Description metal sheet bending machine for process the base of handmade sink.We can provide supporting molds 1. Hydraulic Valve: Haimen Xinli-XINLI 2. Oil cylinder: seal Japan NOK, using rolling technology, the thinnest surface coating can also reach 0.12 , with high wear resistance.
3. Each component of the frame adopts steel plate welded structure, after tempering treatment and vibration aging treatment, eliminate the deformation caused by welding stress and processing stress, and ensure the accuracy and durability of the machine tool.
4. The fuselage adopts an integral welded structure for easy transportation. The whole processing of large floor boring machine can ensure the accuracy of the machine tool.
5. The fuselage, slider and other important components are analyzed by ANSYS finite element analysis software to ensure the reliability of the machine tool.
6. The cylinders at both ends are placed on both columns to drive the slide directly; so the machine is simple and rigid.
The slider is synchronized by torsion shaft force, and can withstand certain partial load; the slider adopts frame structure, strong rigidity,
High strength and small deformation.
7. The upper mold is equipped with the upper mold inclined iron accuracy compensation mechanism, which can make the workpiece achieve high bending accuracy
8. Rear gear and slider travel values are displayed on the display screen
9. This hydraulic system can realize the rapid decline of the slide, slow decline, advance speed bending, rapid return and emergency stop of the slide in the upward and downward process.
10. Electrical control is centralized and reliable, specifically as follows:
The power facilities are located in the fuselage, which are controlled and realized through the touch screen of the control panel.
Equipped with a foot switch, which can be operated through its direct bending action, convenient and quick.
Overload and short circuit of the motor are protected by the air switch.
11. Die material: 42 CrMo
Detailed Photos

Product Parameters
Name Parametervalues Unit
NominalPressure 630 KN
FoldableBoard Width 2500 mm
Slide Stroke 120 mm
Adjusting the distanceoftheslider 100 mm
Die-set Height 600 mm
Column Spacing 1975 mm
ThroatDepth 260 mm
Workbench Width 160 mm
WorkbenchHeight 800 mm
Approaching Speed 50 mm/S
Working Speed 30 mm/S
Return Speed 50 mm/S
Fuel Tank Capacity 300 L
Power 5.5 KW
Our Advantages Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,We focus on providing kitchen supplies production solutions, including providing production machines, plant layout, production technology output, for you to save worry, labor and money, we wholeheartedly escort your career success.

After Sales Service Sufficient spare parts inventory: provide users with complete parts inventory of parts, any parts, vulnerable parts can be replaced in time, to escort the daily production of users.
Provide 7*24 hours of after-sales online service, maximize the guarantee of users' daily production plan, after-sales problems worry worry.
Lifetime service: establish the unique coded user file of the equipment, track and record the applicable details of the equipment, and provide lifelong maintenance service for cooperative users.
