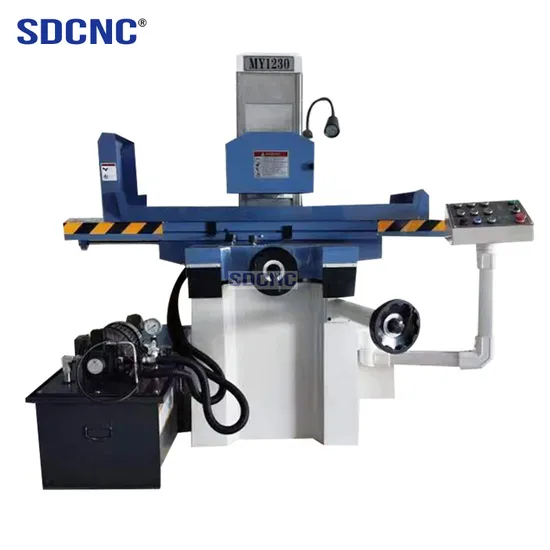

Sdcnc Digital Display Surface Grinding Machine My1230 Mini Surface Grinding Machine
| US$5,500.00-5,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MY1230
Type
Surface Grinding Machine
Processing Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Distance Spindle Center Line to Working
520mm
Hydraulic Motor
2.2kw
Spindle Motor
2.2kw
Worktable Size
750*300mm
Max. Travel of Table
780*320mm
Transport Package
Wood Packing
Specification
1960*1480*1850
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
1960.00cm * 1480.00cm * 1850.00cm
Package Gross Weight
1530.000kg
Product Description
SPECIFICATIONS
Product main technical parameters:
| Specifications | Units | MY1230 | ||
| workbench | Worktable size (L * W) | mm | 750×300 | |
| Max. travel of table | mm | 780×320 | ||
| Table T slot (slot number x slot width) | mm | 1×14 | ||
| Grinding head | The grinding wheel size (o. d * w * i. d.) | mm | Φ300×30×Φ76.2 | |
| Distance spindle center line to working table | mm | 520 | ||
| Grinding wheel speed | 50HZ | r/min | 1450 | |
| 60HZ | r/min | 1680 | ||
| The amount of feed | Table longitudinal (left and right) speed | m/min | 3-20 | |
| Transverse (front and rear) feed handwheel feed | Continuous (stepless) | mm/min | 600 | |
| Intermittent (stepless) | mm/times | 0-6 | ||
| Handwheel per turn | mm | 4.0 | ||
| Handwheel per lattice | mm | 0.02 | ||
| The vertical (up and down) feed handwheel feed | Handwheel per turn | mm | 2.0 | |
| Handwheel per lattice | mm | 0.01 | ||
| Grinding head up and down is fast lifting speed (approximate value) | mm/min | 360 | ||
| Hydraulic system | Hydraulic motor | kw | 2.2 | |
| working pressure | Mpa | 4 | ||
| Fuel tank capacity | L | 100 | ||
| Maximum flow rate | L/min | 20 | ||
| Motor power | Spindle motor | kw | 2.2 | |
| Cooling motor | W | 40 | ||
| Elevator motor | W | 120 | ||
| working accuracy | The process surface of the base level of the parallel degree | mm | 300:0.005 | |
| | Surface roughness | μm | Ra0.32 | |
| Machine weight | Net weight | kg | 1400 | |
| Gross weight | kg | 1530 | ||
| External size (L * w * h) | mm | 1960×1480×1850 | ||
| Packing size (L * w * h) | mm | 2000×1640×2020 | ||
