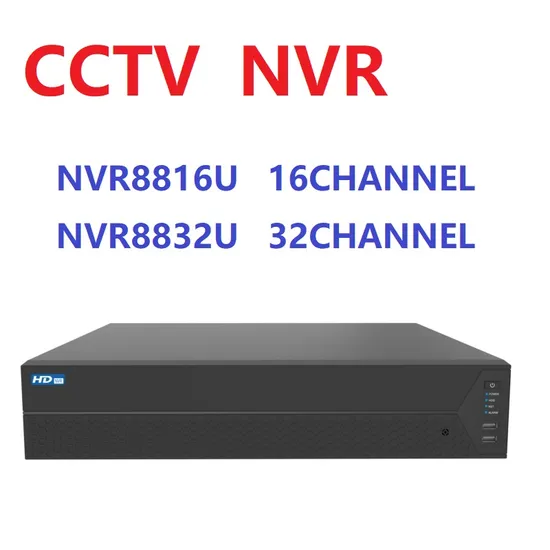

8HDD NVR Ultra 16CH/32CH DVR CCTV Camera Video Recorder Same Dahua Factory

Product Description

Product Description 8HDD NVR Ultra 16CH/32CH DVR CCTV Camera Video Recorder Same Dahua factory
NVR8816U = Dahua NVR4816-4KS2/I / NVR5816-4KS2 Max. 200 Mbps incoming; Max 16 Channel 8MP IPC input;Support ONVIF;
16-channel 1080P decoding capability;Supports adaptive decoding
Support 4K HDMI output;Up to 16 channels for playback;
Support P2P, APP Alarm Push;
AI by camera: Face Detection , Perimeter Protection, Object Detection,and SMD
Support AI search;

System	OS	Embedded Linux
	OS Operation Interface	Web/operating in local GUI
Perimeter Protection by Camera	Performance	16 channels
Face Detection by Camera	Performance	16 channels
Object Detection by Camera	Performance	16 channels
SMD by Camera	Performance	16 channels
Video&Audio Input	Incoming bandwidth	200Mbps
	Output bandwidth	200Mbps
	IPC Input	16CH
Video&Audio Output	VGA	1920×1080,1280×1024,1280×720
	HDMI	3840×2160,1920×1080,1280×1024,1280×720
	Audio Output	1CH,RCA(Line out,2Vp-p,300ohms)
Audio Encoding	Audio Compression	G.711A
	Audio Bit Rate	64Kbps
Video&Audio Decoding	IP channel Resolution	Up to 3840×2160
	Video decoding	H.265(Main Profile@L5.0 High-tie)/H.264 Up to High Profile@Level5.0)
	Audio decoding	G.711A,G711U,G726
	Synchronous Playback	16CH
	Decoding Ability	16CH 1080P@30FPS/4CH 4K@30FPS
Preview	Synchronous Preview	16
	Multi-screen Display	1, 4, 8, 9, 16 views
Playback	Record Mode	Manual; Schedule (general; MD; alarm; intelligent)
	AI Search	Search by target classification (human, vehicle,non-motor vehicle)
	Backup	USB device
	Playback Function	1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
Network	Network Protocol	HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register
	Mobile Phone Access	Android; iOS
	Interoperability	ONVIF; SDK
	Browser	IE8 or later
HDD	SATA	8
	ESATA	1
	Max Capacity	14 TB
External Interface	PoE Ports	0
	Network Interface	2 RJ45 1000M
	VGA	1
	HDMI	2
	CVBS	0
	USB	3 USB(2 USB 2.0 on front panel,1 USB3.0 on back panel)
	RCA Input	1
	RCA Output	1
	Alarm Input	16
	Alarm Output	4
	RS-232	1
	RS-485	1
Other Function	IPC Access	Support One-Click add IPC function
	Two-way Talk	Yes
	Alarm Linkage	Record; Snapshot; Buzzer; Log; Preset; Email
	Picture Capture	Support JPEG Capture
General Parameter	Front Panel	U
	Packing	520x520x215mm
	Dimensions	2U 441x448x88mm
	Weight	7Kg(No HDD)
	Installation	Rack Installation,Desktop Installation
	Power Supply	AC110V~220V±10% 47Hz~63Hz
	Working Temperature	-10ºC--+55ºC
	Working Humidity	10%--90%
	Consumption	20W(without HDD)
Certifications	Certifications	CE/FCC

NVR8832U = Dahua NVR4832-4KS2/I / NVR5832-4KS2 Max. 200 Mbps incoming; Max 32 Channel 8MP IPC input;Support ONVIF;
16-channel 1080P decoding capability;Supports adaptive decoding
Support 4K HDMI output;Up to 16 channels for playback;
Support P2P, APP Alarm Push;
AI by camera: Face Detection , Perimeter Protection, Object Detection,and SMD
Support AI search;

System	OS	Embedded Linux
	OS Operation Interface	Web/operating in local GUI
Perimeter Protection by Camera	32	32 channels
Face Detection by Camera	Performance	32 channels
Object Detection by Camera	Performance	32 channels
SMD by Camera	Performance	32 channels
Video&Audio Input	Incoming bandwidth	200Mbps
	Output bandwidth	200Mbps
	IPC Input	32CH
Video&Audio Output	VGA	1920×1080,1280×1024,1280×720
	HDMI	3840×2160,1920×1080,1280×1024,1280×720
	Audio Output	1CH,RCA(Line out,2Vp-p,300ohms)
Audio Encoding	Audio Compression	G.711A
	Audio Bit Rate	64Kbps
Video&Audio Decoding	IP channel Resolution	Up to 3840×2160
	Video decoding	H.265(Main Profile@L5.0 High-tie)/H.264 Up to High Profile@Level5.0)
	Audio decoding	G.711A,G711U,G726
	Synchronous Playback	16CH
	Decoding Ability	32CH 720P@30FPS/16CH 1080P@30FPS/4CH 4K@30FPS
Preview	Synchronous Preview	32
	Multi-screen Display	1, 4, 8, 9, 16, 25, 32 views
Playback	Record Mode	Manual; Schedule (general; MD; alarm; intelligent)
	AI Search	Search by target classification (human, vehicle,non-motor vehicle)
	Backup	USB device
	Playback Function	1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
Network	Network Protocol	HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register
	Mobile Phone Access	Android; iOS
	Interoperability	ONVIF; SDK
	Browser	IE8 or later
HDD	SATA	8
	ESATA	1
	Max Capacity	14 TB
External Interface	PoE Ports	0
	Network Interface	2 RJ45 1000M
	VGA	1
	HDMI	2
	CVBS	0
	USB	3 USB(2 USB 2.0 on front panel,1 USB3.0 on back panel)
	RCA Input	1
	RCA Output	1
	Alarm Input	16
	Alarm Output	4
	RS-232	1
	RS-485	1
Other Function	IPC Access	Support One-Click add IPC function
	Two-way Talk	Yes
	Alarm Linkage	Record; Snapshot; Buzzer; Log; Preset; Email
	Picture Capture	Support JPEG Capture
General Parameter	Front Panel	U
	Packing	520x520x215mm
	Dimensions	2U 441x448x88mm
	Weight	7Kg(No HDD)
	Installation	Rack Installation,Desktop Installation
	Power Supply	AC110V~220V±10% 47Hz~63Hz
	Working Temperature	-10ºC--+55ºC
	Working Humidity	10%--90%
	Consumption	20W(without HDD)
Certifications	Certifications	CE/FCC
