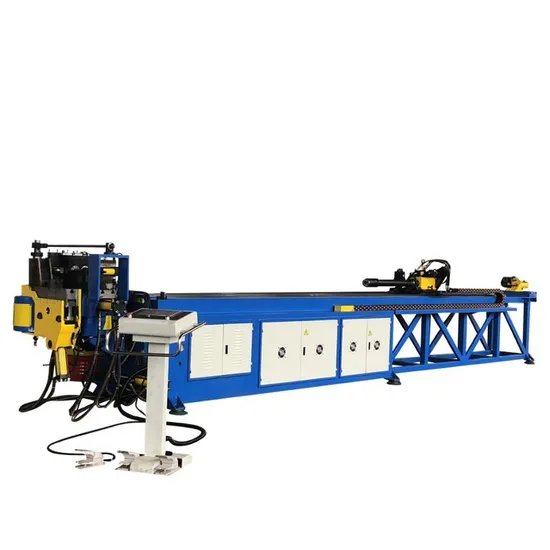

Dw-115CNC Stainless Steel Fully Automatic Pipe Bending Machine CNC

Product Description

new

Item	Name		Unit	Data	Remark
1	Max bending capacity		mm	Φ115×10t
2	Max bending radius		mm	R500	Can according to customer's requirement
3.	Min bending radius		mm	Depend on the pipe diameter
4	Max feeding length		mm	4000	Can according to customer's requirement
5	Max bending degree		Degree	190
6	Control Panel			PLC+ flat computer
7	Bending unit		unit	16
9	Accuracy	feeding	mm	±0.15
		rotary	Degree	±0.1
		bending	Degree	±0.1
10	Data input		1. coordinate ( X, Y, Z ) 2. Working value ( Y, B, C )
11	Rotary servo motor power		KW	2	Japan Mitsubishi
12	Feeding servo motor power		Kw	3.5	Japan Mitsubishi
13	Oil motor power		Kw	28
14	Max storage units		group	2000000	Can enlarge according to requirement
15	Max pressure		MPa	14	Adjustable
16	Machine weight		Kg	8000
17	Machine size		mm	6120×1460×1400
18	Working height		kg	7000
19	Delivery time		days	30-45 days
20	Warranty time		month	14

Accessories
1. 1 sets of tooling
2. mandrel rod : 1 pcs
3. tool box : 1 pcs
4. Operation manual : I sets in English or Persia

After sales service
1. Our guarantee time is one year, if any component is damaged during guarantee time,
we can send the component to the customer by DHL, TNT freely.

2. Our factory can send our engineer to the customer's factory install, commission and training freely.
The customer provide the double trip tickets, food and accommodation for our engineer.
The customer also can send the engineer to our factory to learn the operation and maintains freely.

3. Our factory provide the service for the customer forever, if the customer need operation help,
can contact us by whatsapp, Skype, Email and Telephone at any time, we provide 24 hours on-line service.
Our factory also will make DVD to show the operation steps for the customer.
