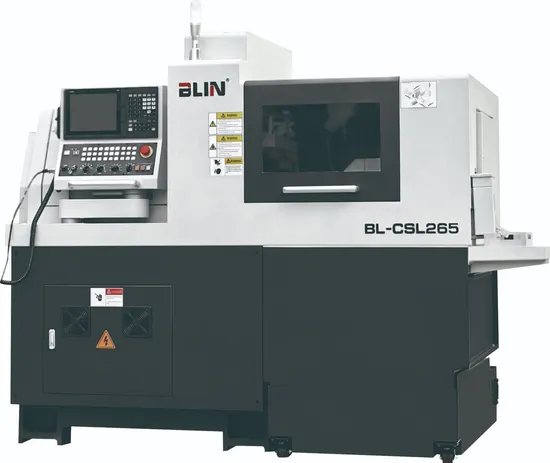

Plywood Case Horizontal Guide Rail Metal Machine Swiss Automatic Lathe
| US$41,000.00 | 39,000 Sets (MOQ) |
Basic Info.
Model NO.
BL-CSL265
Type
Swiss Type
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Gang Too
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Machineable Bar Dia.
25mm
Main Spindle Bore
27mm
Max. Face Drilling Dia.
10mm
Max. Face Tapping Dia.
M8
Main Spindle Max Speed
8000rpm
Main Spindle Motor
4.2kw
Main Spindle Index
C Axes(Continuation)
Back Spindle Max Speed
8000rpm
Back Spindle Motor
3.1kw
Back Spindle Index
C Axes(Continuation)
Radial Type Live Tool Max Speed
5000rpm
Rapid Moving Speed(X1/Y1/Z1/X2/Z2)
20/24/24/24/24
Repeat Popsitioning Accuracy
0.003
O.D. Tool
6 Position
Transport Package
Plywood Case
Specification
2300*1300*1750
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Double spindle Swiss Automatic machine lathe- Dual spindle,total 5 axes
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
-Adopt high precision built-in electro-spindle,NSK super high precise angle contact ball bearing, achieve spindle's high rigidity
and good precision retention,spindle flop≤2μm
- Adopt JAPAN THK brand high precision ball screw and linear guideway
- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized,precise,slender axles workpiece machining
Details:
| Item | Unit | BL-CSL205 | BL-CSL265 | |
| Max. machineable bar dia. | mm | Φ20 | Φ25 | |
| Main spindle bore | mm | Φ25 | Φ27 | |
| Max. machineable length | Fixed guide bushing | mm | 200 | |
| Rotary guide bushing | mm | 180(one time feed) | ||
| Guide bushless | mm | 50 | ||
| Max. face drilling dia. | mm | Φ10 | ||
| Max. face tapping dia. | mm | M8 | ||
| Main spindle max speed | rpm | 8000 | ||
| Main spindle motor | kw | 4.2 | ||
| Main spindle index | / | C axes(continuation) | ||
| Back spindle max speed | rpm | 8000 | ||
| Back spindle motor | kw | 3.1 | ||
| Back spindle index | / | C axes(continuation) | ||
| Radial type live tool max speed | rpm | 5000 | ||
| Rapid moving speed(X1/Y1/Z1/X2/Z2) | m/min | 20/24/24/24/24 | ||
| Repeat positioning accuracy | mm | ≤0.003 | ||
| O.D. tool | mm | 6 position 12*12 | ||
| Main spindle side axial drilling tool(fixed type) | mm | 4 position ER16 | ||
| Main spindle side radial type live tool | mm | 2 position ER11+2 position ER16 | ||
| Back spindle side back drilling tool(fixed type) | mm | 4 position ER16 | ||
| Coolant pump | kw | 0.46 | ||
| Overall size | mm | 2300×1300×1750 | ||
| N.W. | kg | 2500 | 2600 | |
Main parts list:
| Item | Brand |
| CNC controller | TAIWAN-SYNTEC |
| Servo electro-spindle | TAIWAN |
| Servo motor&driver | TAIWAN-SYNTEC |
| Spindle encoder | TAIWAN-SYNTEC |
| Spindle bearing | JAPAN-NSK/NTN P4 class |
| Ball screw bearing | JAPAN-NSK/NACHI |
| Ball screw | TAIWAN HIWIN/JAPAN-THK |
| Linear guideway | TAIWAN HIWIN/JAPAN-THK |
| Lubrication system | JAPAN-HERG |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAWAN-AIRTAC |
| Lock nuts | TAIWAN-YINSH |
| Shaft coupling | GERMANY-KTR |
Standard configuration: - SYNTEC 220TB CNC controller - Rotary guide bushing - Dual spindle - Parts catcher& convey belt Optional configuration: - High pressure coolant system - Oil mist collection system - Angular live tool - Automatic chip conveyor - Automatic bar feeder Other models choice:
