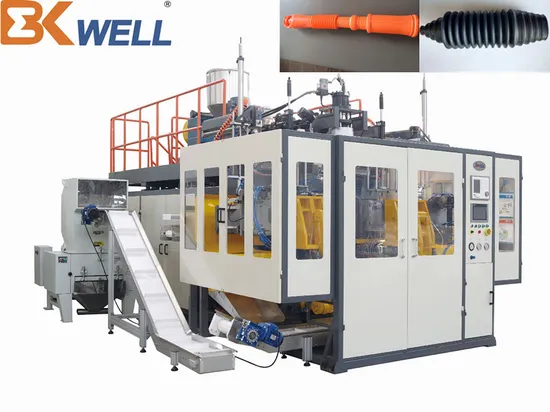

Bekwell 30L HDPE Drum/Playpen Intake Pipe Blow Molding Machine

Product Description

DESCRIPTION OF BLOW MOLDING MACHINE(FOSHAN BEKWELL INTELLIGENT EQ CO/SHANGHAI JWELL MACHINERY)
BEKWELL PE plastic Washing machine water inlet pipe/plastic hose/expansion pipe/extension tube/Telescopic drainage pipe blow molding machine (We can offer complete solutions:Mould with auto deflashing,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical).
Technical parameters of machine

Model	Unit	BM05D	BM12D
Max product volume	L	5	12
Dry cycle	Pc/h	700*2	600*2
Die head structure	Continuous type
Main screw diameter	mm	75	90
Max plasticizing capacity (PE)	kg/h	90	160
Driving motor	Kw	30	45
Oil pump motor power	Kw	11	15
Clamping force	KN	70	120
Space between platen	Mm	150-510	240-640
Platen size W*H	Mm	350*400	450*500
Max. mold size	Mm	360*400	500*520
Platen moving stroke	Mm	450/520	600/650
Heating power of die head	Kw	7.5	10
Machine dimension L*W*H	m	3.7*3.1*2.7	4.2*3.2*3.0
Machine weight	T	8.5	12
Total power	Kw	60	90

Product Overview:

Performance and advantages
·Suitable for producing 1-5L different size of gear oil bottle, lubrication
oil bottle, cooling water tank etc.
·Optional multi-layer co-extrusion.
·Optional view strip line system.
·According to the product size,select different cavity of die head.
·According to the different material,optional JW-DB single station
hydraulic screen-exchanger system.
·According to customer's requirement,optional auto-deflashing
on line,scrap conveying on line,finished product conveying on
line.
Blow moulding machine/extrusion blow molding machine samples:
Extrusion Blow molding machine running in our customer workshop
Different kind of Control system of machine

parts name	country	Brand
PLC and touch screen	Germany/Austria	SIEMENS/B&R
Contactor	France	Schneider
Inverter	China/Germany	JWELL/Rexroth
Parison control system	Japan/Austria	MOOG100/B&R 300
Pneumatic valve	China	Air TAC
Hydraulic Control System	China	Famous brand
hydraulic valve	China	Taiwai Yuken
Take out robot	China	JWELL
Accumulate type Die head	China	JWELL
Driving motor	Germany	SIEMENS-Beide MADE IN CHINA
Gearbox	China	Famous brand
Screw and Barrel	China

Blowpin system
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy
Open&Closing system
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
