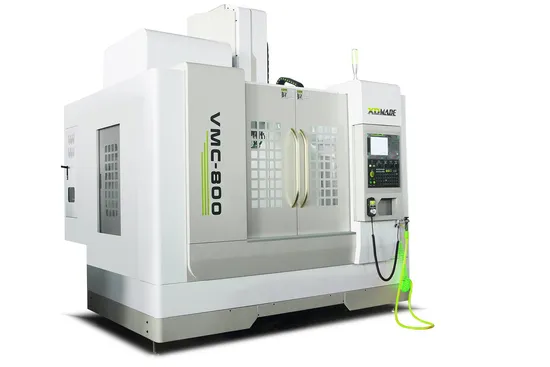

Numerical Control Machine Tool Vmc Machining Center

Product Description

The machine tool spindle adopts spindle assembly, belt type milling head, and the spindle is driven by servo motor. X, Y, Z three-axis servo control, direct connection structure, with automatic lubrication system, to achieve high-speed movement of the machine; X, Y, Z three direction feed ball screw, feed speed is high, drive motor through the elastic shaft and screw directly connected, feed servo motor directly to the ball screw, no back backlash, to ensure the positioning accuracy of the machine tool.
♦ The main shaft adopts Taiwan spindle unit, strong axial and radial bearing capacity, speed up to 6000rpm, the main shaft adopts central blowing structure, and the central high pressure gas is used to clean the inner pile of the main shaft quickly after the main shaft is loosened to ensure the accuracy of the tool clamping.
♦X, Y, Z three-axis servo control, using Taiwan ball screw directly connected structure, screw installation for pre-stretching, connection rigidity, high feed speed; The feed servo motor directly transmits the power to the ball screw without back backlash to ensure the positioning accuracy of the machine tool. The Z axis is equipped with a hydraulic balancing device to ensure the same driving force for up and down movement.
♦X, Y, Z three direction guide, screw are closed protection, to ensure the lead screw and guide clean, to ensure the transmission and movement accuracy of the machine tool.
♦ The outer protection of the machine tool is designed with a ring closed structure.
♦ Machining center configuration: The use of Taiwan 24 knife umbrella tool library, the shortest path tool change, tool change accurate, short time, high efficiency, after running test, in line with the reliability requirements.
♦ Using centralized automatic lubrication device, regular, quantitative automatic intermittent lubrication, stable and reliable work.
♦ The electrical system of the machine tool is neatly wired, the structure is reasonable, the electric box is well sealed, and the heat exchange system is equipped to ensure a good use environment.
♦ Numerical control system (Fanuc, Mitsubishi, Siemens, Guangzhou, new generation) is optional, the system has interlocking, safety protection and fault diagnosis alarm functions, equipped with RS232 standard communication interface.
♦ This machine tool is used for CNC milling, boring, drilling, tapping, processing rigid parts, steel casting, cast iron parts, etc. The attachment head of the machine tool can realize the drilling, milling, boring of various complex parts such as plates, plates, shells and molds in a single clamping.
Expansion, reaming, tapping and other processes can be used for small and medium-sized batch parts processing and manufacturing, processing of complex parts can also be composed of automatic production lines for mass production, to ensure the quality and production of parts.
Built-in spindle motor: The high torque motor is directly integrated with the spindle to minimize power loss, so the processing efficiency is excellent. The cooling method of the coolant direct injection bearing, the motor and the bed are also cooled at the same time to minimize the thermal deformation, and ensure the processing of vertical disc cutter: barrel CAM segmentation machinery, high segmentation accuracy, low failure rate, simple structure, easy maintenance, long service life. All imported engineering plastic cutter sleeve, light weight, high strength, not easy to damage. Double bearing separate cutter arm, high concentricity, low noise. The whole series of electronic switches adopts imported originals.
