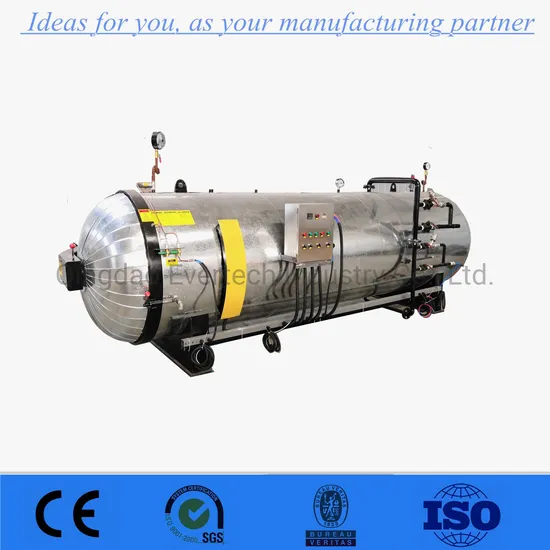

Rubber Autoclave Rubber Vulcanization Autoclave

Product Description

Product Description
High Temperature Electric Heat Convey Belt Hot Vulcanizing Autoclave Machine
Heating Type: Steam direct or steam indirect heat
Opening door type: Manual quick opening, single man can easily complete all the steps. This design is the most advanced way and idea of opening the door. Open and close the door normally when it is power failure.
Sealing Method:The door uses inflatable silicone sealing ring, which is simple and convenient to maintain and the sealing effect is obviously better than other methods with more than 2 years of service life.
Safety chain type: 3 sets of safety interlock devices are designed at the tank door. It solves the safety problems caused by mistaken operation completely.
(2) Pressure automatic safety chain (2) Manual safety chain (3) Sealing ring safety chain
Control Type: PLC Computer Full-automatic Control, Computer Semi-automatic Control and Manual Control
Insulation Type: It uses double layer external insulation, saving thirty percent of energy consumption than ordinary insulation.
Loading mode: There are two 36# steel rail with the national standard in the tank. A filtering net is covered in the discharge hole which is easy to clean the sundries without clogging the outlet. Product Application Widely used in vulcanization of rubber products, SBR thermoplastic as well as the carbonization and degreasing of bamboo, such as, rubber, cable, printing and dyeing, chemical, building materials and other industries. Mainly used in rubber products, rubber hose, rubber roller etc.
Used in tire, rubber sleeve cable, rubber shoes, rubber hose, rubber roller, rubber belt, belt, conveyor belt, rubber ball, rubber lining, rubber cloth, rubber head, gloves, red flag, etc.
Wood drying, wood preservative, wood fire prevention, wood impregnation, wood color, wood cooking, bamboo carbonization, wood modification, wood optimization, wood fire retardant
Also used for Yarn thread, mane, socks heat setting, high pressure modification and degreasing of horn and bone, feather hydrolysis, oxidation treatment of aluminum products, steaming and cooking of carbon materials, asbestos friction materials, gypsum and its products.

Model NO.	Diameter	Length	Capacity	Thickness	Design Temp	Design Pre
EDL1.2-3A.2	1200mm	3000mm	3.4CBM	8mm	190C	0.85MPa
EDL1.5-4A.2	1500mm	4000mm	7.06CBM	8mm	190C	0.85MPa
EDL1.5-6A.2	1500mm	6000mm	10.6cbm	8mm	190C	0.85MPa

Manufacturing Technique Main Features Automatic control: From heating, preserving heat to vulcanizing and so on all the processes is completed by control system.
Safety: The heating tube uses nickel chromium material of heating wire, which is welded with external line terminal in case of fire.
Uniform temperature and pressure: High temperature air cycles in the tank through the special air duct plate, spreading the heat from front to back, to ensure uniform temperature in the tank without dead ends. This solves the problem of product quality.
Simple and convenient operation: Use of advanced and convenient design concept and manufacturing process, the operators can learn all the operating process in 15 minutes.
Temperature, pressure and curing time is controlled automatically. The steam inlet is controlled by angle seat valve and is arranged at the bottom of the tank. Steam diffusion tube is arranged at the bottom inside the tank vertically, of which the steam mouth (4mm, 5mm) is arranged densely according to certain rules and angles to ensure the temperature spread around evenly. After setting working procedures, it can carry out air intake, exhaust, temperature rising, heat preservation and vulcanization automatically. When it ends, it will shut down and send out the sound and the light to alarm. Recommend Products
