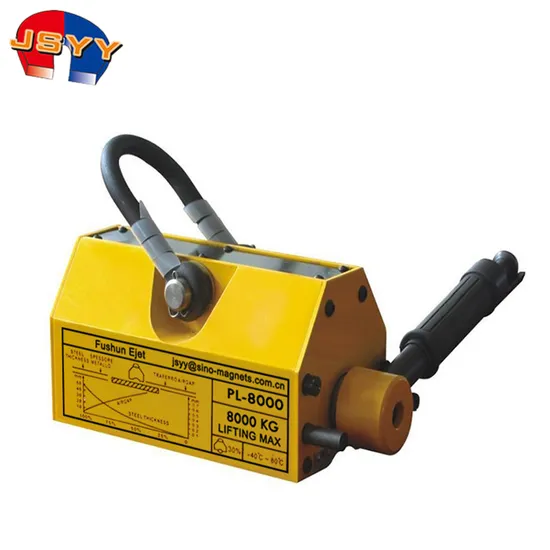

Hot Sale 100kg - 8000kg Permanent Magnetic Lifter NdFeB Magnetic Plate Lifter

Product Description

Why choose us Over 12 Years Experience of Magnet Lifter
The Application Of 200kg Lifting Magnet For Lifting Steel Scrap
The manual permanent magnetic chuck is suitable for lifting and transporting flat machine parts and steel products, so it is applicable in mould and machine processing industries. For example, it is commonly seen in machining cnters,ship building plants,machine manufacturing factiries,etc.

Types	Rated Lifting Capacity	Length	Width	High	Weight
	kg	mm	mm	mm	kg
PL-300	300	205	90	90	11
PL-600	600	276	115	106	19
PL-1000	1000	310	150	135	43
PL-1500	1500	380	172	152	68
PL-2000	2000	425	180	160	95
PL-5000	5000	530	260	255	145
CUSTOM	50~8600	custom	-	-	-

The Structure
The TX series manual permanent magnetic chuck adopts high performance permanent magnetic material (NdFeB magnet) as its core component, thus realizin smaller size,higher lifting capacity and longer life span.
For safety considerations,this permanent magnetic lifting device has a safety factor of 3.5,indicating that its lifting capacity is 1/3.5 of the maximum holding power.
With "U" grooves on the under surface, the manual lifting magnet is capable of lifting both round steels and steel plats. So it is also referred to as a dual-purpose lifting chuck.
Since a permanent magnet is used, so electricity is required. As a result, all risks associated with power failure and wiring breakage are eliminated.
Our permanent magnetic chuck has an optimized magnetic circuit, thus reducing the remanence to almost zero.
Thank to the paint spraying treatment, our steel hoisting magnet has an aesthetic appearance that could bring extra joy to operators.
Features
1.Supply to USA,Europe,and Austrilia
2.Matrial:Rare earth magnet, carbon steel
3.Professiona permanent magnetic lifter supplier
4.Safety rate: 2.5, 3 & 3.5 times

Packing & Shipping
1.Packing:Export packing
2.Shipping time: 30 days after receive the deposit

Pls kindly feel free to contact with us if you have any enquiries.
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Credit first
FAQ
1. What is the MOQ of your machine?
A: Our MOQ is 1 set

2. How long is the machine warranty period?
A: the product warranty period is 18 months

In order to give you the responsible quotation, pls kindly inform us the following details:
1. What kind of material you are going to deal with?
2.What's the size of the materials?
3. What's the producing capacity you are going to achieve?

Most suitable machine would be recomended to you according to your informations.
