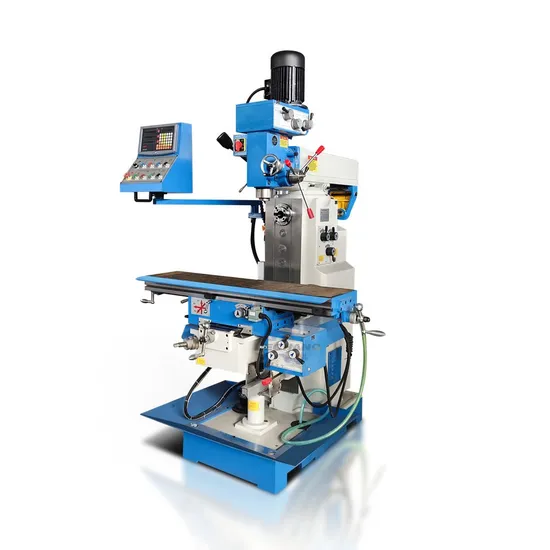

Knee Type Drilling and Milling Machine Zx6350A Precision Vertical Drilling Milling Machine

Product Description

Knee Type Drilling and Milling Machine ZX6350A Precision Vertical Drilling Milling Machine
Product Description
Main performance characteristics:
1.Milling head can be micro feed and achieve the drilling
2.Milling and tapping function
3.Worktable can be equipped with the gear transmission power feed,
4.Full-featured and flexible
5.X.Y.Z. three direction with automatic feeding .Easy to operate
6.Can be add plug and swivel table
7.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
8.Work Table Made by HT200-250 High Strength Cast Iron
9.Dovetail Table Guide ways Withstand Larger Overturning Moment
10.Gear Drive Milling Head
11.Head stock Swivels ±45
Product main technical specifications:

Specifications(mm)	ZX6350A
Max. drilling dia.(mm)	50
Max. end milling width(mm)	100
Max. vertical milling dia.(mm)	25
Max.boring dia.(mm)	120
Max. tapping dia.(mm)	M16
Distance from spindle nose to table surface(mm)	80-460
Spindle taper	MT4
Horizontal Spindle taper	ISO40
Spindle speed range(r.p.m)	115-1750(V) 40-1300(H)
Spindle travel(mm)	120
Table size(mm)	1200×280 ,Optional: 1500x280
Table travel(mm)	600×280 ,Optional: 1000x280
Table feed speed(mm/min)	X/Y:22-555 ,Z:300
Overall dimensions (mm)	1500×1600×2200
Spindle motor power (kw)	1.5/2.2(V) 3(H)
Machine weight (kg)	1400/1500

Detailed Photos
