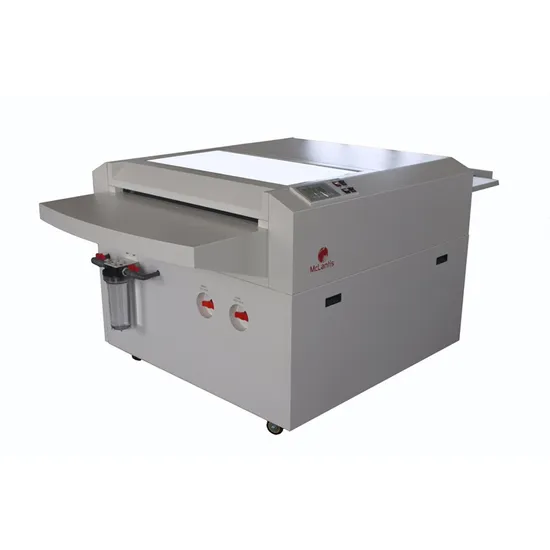

CTP Plate Processor for CTP Plate Machine
| US$5,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PROCEMAC
Type
CTP Plate Making Machine
Material / Metal Processed
Stainless Steel
Classification
Outside of Drum
Light Source
Semiconductor Laser
Certification
CE, ISO
Model
Procemac Thermal CTP Plate Processor
Material
Thermal CTP Plate and Ctcp Plate
Capacity
12-90 M/Hr
Plate Width (Mm)
900
Min. Plate Length(Mm)
300
Plate Thickness(Mm)
0.15-0.4
Tank Content, Developer(L)
45
Tank Content, Wash(L)
35
Adjustable Temperature, Dev
0 to 40 Degree C. Adjustable
Adjustable Temperature, Dry
Normal Temperature to 70 Degree C.
Transport Package
Wood Box
Specification
CE
Trademark
McLantis
Origin
China
HS Code
8442
Production Capacity
500 Units/Year
Product Description
1. Exquisite Design and Enduring Duralumin MaterialBuilt with highly acid-resistant duralumin materials and PVC tank inside, McLantis thermal CTP plate processor is designed with long operation life.
2. Precise Electronic Controls
Equipped with Precise Siemens PLC control, McLantis thermal CTP plate processor operates the develop-wash-gum-dry process smoothly without any letup.
3. Easy Operation and Maintenance
McLantis thermal CTP plate processor can be connected to most thermal CTP brands and operates online or offline. Suitable for most brands 0.15 mm - 0.4 mm thermal plates. Convenient access to all serviceable components.
4. Superior Plate Developing Performance
Developing processing roller assures no damage to the plate surface and two sets of brushes assures sufficient development to the plate in McLantis thermal CTP plate processor. Equipped with automatic anti-oxidation detecting and replenishing system, McLantis processors accurately control developer concentration.
5. Independent Cooling System
Independent cooling system on McLantis thermal CTP plate processor keeps the developing temperature fluctuation within 0.5 degree Celsius.
6. Environmental Friendly
Gumming process with automatic cleaning and recycling function. Energy saving and environmental friendly.
| Model | PROCEMAC thermal CTP plate processor | ||||
| 90PT | 125PT | 150PT | 165PT | ||
| Material | thermal CTP plate and CTCP plate | ||||
| Capacity | 12-90 m/hr | ||||
| Plate width (mm) | 900 | 1250 | 1500 | 1650 | |
| Min. Plate length(mm) | 300 | 400 | 400 | 400 | |
| Plate thickness(mm) | 0.15-0.4 | ||||
| Tank content, developer(L) | 45 | 60 | 75 | 100 | |
| Tank content, wash(L) | 35 | 45 | 60 | 80 | |
| Adjustable temperature, dev | 0 to 40 degree C. adjustable | ||||
| Adjustable temperature, dry | normal temperature to 70 degree C. | ||||
| Water consumption, max | 8 L/min | 12 L/min | 15 L/min | 20 L/min | |
| Diameter of wash brush (mm) | 50 | ||||
| Rotary speed of wash brush | 80 rpm | ||||
| Filter(um) | 75 | ||||
| Water supply | tap water (min. pressure 1 bar) | ||||
| Gumming | Roller pressing gumming | ||||
| Diameter of roller | 60mm | ||||
| Dev. replenishment | 0-1L per plate | ||||
| Dev. heating-up rate | 0.5 degree C. per minute | ||||
| Horizontal adjustment | Adjustable | ||||
| Power supply | 220V single phase 50-60Hz | ||||
| Power consumption (kwh) | 3.5 | 4.5 | 5 | 6 | |
| Voltage fluctuation | within 10% | ||||
| Gross weight(kg) | 500 | 650 | 780 | 900 | |
| Net weight(kg) | 400 | 550 | 650 | 770 | |
| optional | water wash recycle pump automatic plate stacker plate conveyor | ||||
