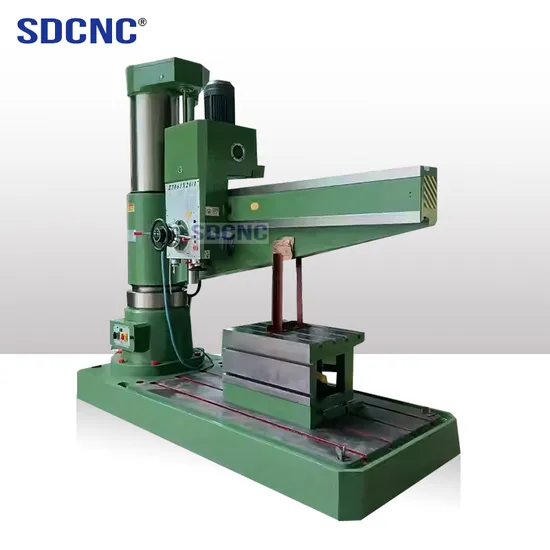

Powerful Drilling Deep Hole Rocker Arm Radial Drilling Machine Z3063 Price

Product Description

SPECIFICATIONS

The main performance characteristics:
1.The use of hydraulic selection of transmission mechanism, can save the auxiliary time.
2. Spindle positive, parking (brake), transmission, free action, controlled by a handle, convenient operation.
3. The spindle box, rocker arm, internal and external column using the hydraulic driven diamond block clamping mechanism,
clamping reliable.
4. The rocker rail, cylindrical surface, spindle, spindle sleeve and internal and external cylindrical rotary roller, and other places were
carried out quenching treatment, can be long-term stability of machine tool accuracy, extended service life.
5. Has the perfect safety protection device and the external column protection.
6. In the structural design and manufacturing process, also adopted a series of effective measures, so that the accuracy of machine
tools and the life of the whole machine are extended.

Specifications	Z3063*20A
Max. drilling diameter	Φ63
Distance from spindle nose to table surface	220-1300
Distance between spindle axis and column surface	430-1900
Spindle travel	400
Spindle taper	Morse No. 5
Spindle speeds range	16-1600(16 steps)
Spindle feeding range	0.04-3.2(16 steps)
Rocker rotary angle	+/-90°
Main motor power	5.5
Movements motor power	1.5
N/W	6500
Overall dimension (L*W*H))	3080×1250×3205

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
