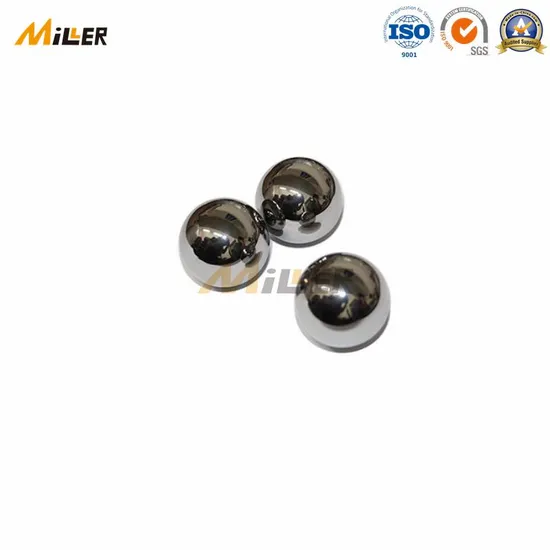

Tungsten Carbide Sizing Balls for 0.3440" Guides with Good Durability and High Precision

Product Description

Product Description
Tungsten Carbide Ball is commonly known as tungsten carbide bead, tungsten carbide sphere, hard alloy ball, refers to a ball made from WC powder with binders like colbalt, nickel, etc... The main characteristic is the very high hardness with consequent remarkable resistance to abrasion, tungsten carbide balls are normally used in special applications such as
Ball Sizing: where precision tungsten carbide balls provide fast, economical and accurate hole finishing method when used in ball sizing of any industry. Tungsten carbide balls may provide improved hole finishes and tolerances. The carbide sizing balls are precision machined to exact specifications and finished to 0.000005" perfect roundness. Each Carbide ball is in the 90 Rockwell range. Won't get flat spots like other materials.With its infinitive number of diameters or measuring points, tungsten carbide balls provide economical, true and most indefinitely useful gauge.
Product Specification
Miller is an ISO certified professional manufacturer for tungsten carbide balls since 2008, and uniquely positioned to help you identify and source the correct carbide sizing balls for your application. The smoothness of sizing ball we produced can reach mirror R0.4. We keep stock of 0.4mm to 20mm in metric, 1/16″to 1-1/4″in inch sizing balls for your on time delivery and sizes could be customized, as we have a group of experienced technical personnel, advanced mould production equipments to realize your customization by drawing and sample.

Name	Tungsten carbide sizing ball
Material	Tungsten carbide, hard metal, hard alloy, tungsten steel
Features	Wear resistant, corrosion resistant, impact resistant
Size Ranges	0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm,4.0mm, 5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm,9.5mm, 10.0mm, 10.5mm, 11mm, 11.5mm, 12mm, 12.5mm, 13mm, 13.5mm,14mm, 14.5mm, 15mm, 15.5mm, 16mm, 16.5mm, 17mm, 17.5mm, 18mm, 18.5mm, 19mm, 19.5mm, 20mm

Grade	Sphericity in inches	Sphericity in mm	Basic Diameter Tolerance in inches	Basic Diameter 2 in mm	Maximun Surface Roughness
G3	0.000003"	0.0000762mm	+/-0.00003"	+/-0.000762mm	0.5
G5	0.000005"	0.000127mm	+/-0.00005"	+/-0.00127mm	0.8
G10	0.000010"	0.000254mm	+/-0.0001"	+/-0.00254mm	1
G25	0.000025"	0.000635mm	+/-0.0001"	+/-0.00254mm	2
G50	0.000050"	0.00127mm	+/-0.0002"	+/-0.00508mm	3
G100	0.0001"	0.00254mm	+/-0.0005"	+/-0.0127mm	5
G200	0.0002"	0.00508mm	+/-0.001"	+/-0.0254mm	8
G500	0.0005"	0.0127mm	+/-0.002"	+/-0.0508mm
G1000	0.001"	0.0254mm	+/-0.005"	+/-0.127mm

Grade: Miller manufactured 4 main grade ( chemical composition) of carbide balls
1. WC92% + 8% Co (In request of more wear-resistance, we suggest to use WC-Co grades. )
2. WC92% + 8% Ni (In most corrosion-wear situations, an optimum choice is the WC-Ni grades, which are resistant down to pH 2 to 3.)
3. W85%-97%+Ni+Fe Tungsten balls (Density 15.5-18.5g/cm3, mostly are used in the field of shots and counterweight. such as the fish pendant, Oil drilling balance,Ball valves and bearings, Shotgun bullet, Armor-piercing bullet…)
4. W99.95% Pure tungsten balls (Density 19.0-19.2g/cm3, mostly are used in Aerospace, aviation, electrical Instrumentation, laboratory…)
Packaging
Reviews From Customers
Company Profile
Miller Carbide is an experienced manufacturer of tungsten carbide customized parts started from 2008. Our products cover carbide grinding jars & bowls & mortars, carbide grinding balls, carbide pegs, carbide static & dynamic rings, bead mill disks, carbide stirring rods, carbide static & dynamic jaws, carbide crusher plates, carbide grinding discs, carbide rotors, carbide roll rings, carbide guide rolls, carbide burrs, carbide sleeves & bushings, and other customized wear-resistant components for valve and pumps ect. With years of tungsten carbide engineering and manufacturing experience, we can concentrate our skills to the development of customized products for a wide spread of wear applications in milling & crushing industry.
Unlike other suppliers, Miller operates with three disciplines: Engineering, manufacturing and after sale service support. This means we are able to improve the efficiency of your machine and tools with customized products and direct access to the manufacturer. Miller Carbide works closely with its customers to ensure their requirements are designed efficiently and suitable for application. We can design the components needed from drawings or delivered samples. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. We are sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Company Advantage
We Offer You These

Direct Sales Integrating R&D, production sales and technology

Mold customization Rich molds OEM customization accepted

Adequate equipment grinding/pressing sintering/deep processing

Technical strength 15 years of experience in technical team, research & innovation

FAQ
1. How long is your delivery time?
We can arrange the shipment within 3-5 working days upon receipt of your payment for any sintered blanks stocked items. As for the mass production order or the customized products, we will need 10-30 days production leadtime and indicate the delivery time on the Proforma lnvoice. 2. Can l get a sample from you for Quality checking? Is it free of charge or need pay ? Yes, we can offer the sample for free of charge with freight collected if we have in stock. If the sample is special or non-standard shaped, we will charge you only the basic production costs accordingly. 3. What's grade should I choose for the product? If you have no idea about the grade, please kind to provide the information of the usage of the product, our technical team will suggest the most suitable grade for you.
4. Do you use recycle materials? We insist on quality come first, all the products are made of virgin raw materials. 5. Can you make the goods according to my sample or drawing ? What's your (MOQ) minimum order quantity? Yes, We have a group of experienced technical personnel, advanced mould production equipments. Our R&D teams were graduated from
University, and our technical R&D team lead by Doctors of Powder Metallurgy and Professors. For the customized item we quote the MOQ individual; For the standard items in stock, we have no limitation on the MOQ . 6. Can I negotiate the Prices? Yes, we can consider the discount for bulk orders. 7. Can you give warranty of your products? Yes, we can give you 100% satisfaction guarantee on all items. We have the independent inspection department with the complete advanced product quality testing instrumentation to carry out IQC, PQC, FOC, and the detailed inspection pictures and testing report will be available and sent to you for confirmation before delivery. In case there was any quality problem, just please kindly to provide the pictures to show the problem by email. We should be 100%
responsible for our problems and provide you the replacements at our costs. Contact us now! Get your free quote!
