Hkds0302s Japan Wire Rope Hoist Good Quality for Crane and Elevator

Product Description

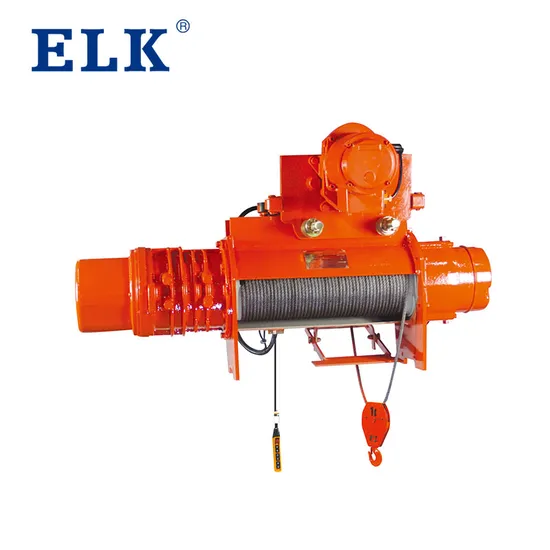

ELK Electric Wire Rope Hoist with Single/Double Rail Trolley :
Specialized In Customized Design Manufacture
1.. We are Manufacturer of ELK Electric Wire Rope Hoist : -- High Quality / High Safety :

Our Company :Zhejiang Kaidao Hoisting Machinery Co.,Ltd is Original Manufacturer Factory .
★★★★★:

2..Basic Description of ELK Electric Wire Rope Hoist : -- High Quality / High Safety :

ELK® Electric Wire Rope Hoist Basic Description:
(1).	Products Name :	Electric Wire Rope Hoist
	Type:	HKDS0202
	Capacity:	2T
	Lift Height:	6m
(2).	Material :	Steel ;
(3).	Application :	Overhead Crane,Lift Equipment,Cargo Lift,Wind Power Projects, Etc.;
(4).	Certificates :	CE--ISO--SGS ;
(5).	Brand Logo :	ELK or Customized your logo;
(6).	Packing Kinds :	Plywood cases (No Need Fumigation)
(7).	Packing Size:L*W*H cm :	Pls Ref. Below Technical Table;
(8).	Packing Weights :	Pls Ref. Below Technical Table;
(9).	Delivery Time :	Within 10 Days----20 Days;
(10).	Work Class :	M5=H4=2M ;
(11).	Rating :	30min ;
(12).	Quality Warranty :	2 Years ;

3..ELK Electric Wire Rope Hoists Advantages: -- High Quality / High Safety :

ELK® Electric Wire Rope Hoist (New Type)Advantages :
Strict Inspection	Hoists all parts are Auto-Tested by world First-class Test Machine ;
Safety&Reliability	Sensitive Steady Double Brakings Device-- With Thermal Protector
	Protecting Device--Double Limit Switches are manufactured by Best Processing Technic in China; Lowest Repair Rate;
Wire Ropes	Strong Durable Scientific Designing Wire Ropes are Never to be Intertwined ;
Best Electrics	All Electrics System(Schneider/Shihlin/Delixi brands) we use Such as Cables ,AC Contactors, Transformers,Push Button Switch are produced professionally by Best Famous Electrics Factory in China with ISO or CE International Certificates;
Compact Shape	Sturdy,Compact ,Dustproof Structure;More than 3 times Polishing Procedures to Keep Smooth & Shining Surface ;
Unique Motor Technic	With Thermal Protector;Motors Coils are special manufactured by hand in our own factory by Unique Processing Technic ;Keep Super Quiet Voice and Long Service Life;Easy Heat Dissipation ;
Highest Precision	Grinding Gears through Heat-treating;Gear Box & Rotors are Professionally Processed ;With Grease Lubricating System ;Specially Processed Forging Sturdy Hooks .
Perfect Painting	Hoists Surface is 3 Layers of Stoving Varnish Painting by Best Painting Technic to keep Shining and Durable .
Nut,Screw,Bolt	ELK Hoists all Nuts ,Screws and Bolts are processed by most advanced technic:Sturdy/Durable/Neat.
Cost Performance	Insist on the Most Favorable Price and Highest Quality Guarantee to every our customers .

4..ELK Electric Wire Rope Hoist with Single/Double Rail Trolley-- Specification Parameters Table :

(1).1: HKDS -- Single Rail Type : Part 1
Model			HKDS0102	HKDS0202	HKDS0302	HKDS0204	HKDS0304
Capacity(T)			1T	2T	3T	2T	3T
Lift Height(m)			6m|12m	6m|12m	6m|12m	6m|12m	6m|12m
Hoist	Speed (m/min)	50Hz	11	6 or 8.4	7.5	6 or 8.4	7.5
		60Hz	13	7 or 10	9	7 or 10	9
	Motor Power(Kw)	50Hz	3	3	5.5	3	5.5
		60Hz	3	3	5.5	3	5.5
	Rotation Speed		(1)50Hz:1380 r/min ; (2)60Hz :1656 r/min ;
	Motor	Current	6.44	6.44	12.8	6.44	12.8
	Motor	Poles	4	4	4	4	4
Single Rail Trolley	Speed (m/min)	50Hz	14|21	14|21	14|21	14|21	14|21
		60Hz	16|25	16|25	16|25	16|25	16|25
	Motor Power(Kw)	50Hz	0.4	0.4	0.4	0.4	0.4
		60Hz	0.4	0.4	0.4	0.4	0.4
	Rotation Speed		(1)50Hz:1380 r/min ; (2)60Hz :1656 r/min ;
	Motor	Current	1.5	1.5	1.5	1.5	1.5
	Motor	Poles	4	4	4	4	4
	Min. Curve Radius(m)		1.5	1.8	2	1.8	2
Wire Rope	Rope Fall No.(Pcs.)		1/2	1/2	1/2	2/4	2/4
	Composition		6x(19)+FC	6x(37)+FC	6x(37)+FC	6x(19)+FC	6x(37)+FC
	Dia.(mm)		Ø8	Ø12	Ø14	Ø8	Ø10
Voltage/Phase/Frequency			200V--600V/3Phase/50Hz or 60Hz ;Control Voltage:36V/48V/110V;
Work Class			M4
(1).2: HKDS -- Single Rail Type : Part 2
Model			HKDS0504	HKDS07504	HKDS1004	HKDS1504	HKDS2004
Capacity(T)			5T	7.5T	10T	15T	20T
Lift Height(m)			9m|12m	9m|12m	9m|12m	9m|12m	9m|12m
Hoist	Speed (m/min)	50Hz	6.7	6.7	5	2.5	2.5
		60Hz	8	8	6	3	3
	Motor Power(Kw)	50Hz	7.5	9	11	13	15
		60Hz	7.5	9	11	13	15
	Rotation Speed		(1)50Hz:1380 r/min ; (2)60Hz :1656 r/min ;
	Motor	Current	15.6	19	22	27.5	30.5
	Motor	Poles	4	4	4	4	4
Single Rail Trolley	Speed (m/min)	50Hz	14|21	14|21	14|21	14|21	14|21
		60Hz	16|25	16|25	16|25	16|25	16|25
	Motor Power(Kw)	50Hz	0.75	0.75*2	0.75*2	0.75*2	0.75*2
		60Hz	0.75	0.75*2	0.75*2	0.75*2	0.75*2
	Rotation Speed		(1)50Hz:1380 r/min ; (2)60Hz :1656 r/min ;
	Motor	Current	2.2	2.2	2.2	2.2	2.2
	Motor	Poles	4	4	4	4	4
	Min. Curve Radius(m)		3	3	Straight Line	Straight Line	Straight Line
Wire Rope	Rope Fall No.(Pcs.)		2/4	2/4	2/4	1/4	1/4
	Composition		6x(37)+FC	6x(37)+FC	6x(37)+FC	6x(37)+FC	6x(37)+FC
	Dia.(mm)		Ø12	Ø14	Ø16	Ø18	Ø20
Voltage/Phase/Frequency		200V--600V/3Phase/50Hz or 60Hz ;Control Voltage:36V/48V/110V;
Work Class		M4

------------------------------------------------------------------------------------------------------------------------------------

(2).1: HKDD -- Double Rail Type : Part 1
Model			HKDD0202	HKDD0302	HKDD0204	HKDD0304	HKDD0504	HKDD07504
Capacity(T)			2T	3T	2T	3T	5T	7.5T
Lift Height(m)			6m|12m	6m|12m	6m|12m	6m|12m	9m|12m	9m|12m
Hoist	Speed (m/min)	50Hz	6 or 8.4	7.5	6 or 8.4	7.5	6.7	6.7
		60Hz	7 or 10	9	7 or 10	9	8	8
	Motor Power(Kw)	50Hz	3	5.5	3	5.5	7.5	9
		60Hz	3	5.5	3	5.5	7.5	9
	Rotation Speed		(1)50Hz:1380 r/min ; (2)60Hz :1656 r/min ;
	Motor	Current	6.44	12.8	6.44	12.8	15.6	19
	Motor	Poles	4	4	4	4	4	4
Double Rail Trolley	Speed (m/min)	50Hz	14|21	14|21	14|21	14|21	14|21	14|21
		60Hz	16|25	16|25	16|25	16|25	16|25	16|25
	Motor Power(Kw)	50Hz	0.4	0.4	0.4	0.4	0.75	0.75*2
		60Hz	0.4	0.4	0.4	0.4	0.75	0.75*2
	Rotation Speed		(1)50Hz:1380 r/min ; (2)60Hz :1656 r/min ;
	Motor	Current	1.5	1.5	1.5	1.5	2.2	2.2
	Motor	Poles	4	4	4	4	4	4
Wire Rope	Rope Fall No.(Pcs.)		1/2	1/2	2/4	2/4	2/4	2/4
	Composition		6x(37)+FC	6x(37)+FC	6x(19)+FC	6x(37)+FC	6x(37)+FC	6x(37)+FC
	Dia.(mm)		Ø12	Ø14	Ø8	Ø10	Ø12	Ø14
Voltage/Phase/Frequency			200V--600V/3Phase/50Hz or 60Hz ;Hand Control Voltage:36V/48V/110V;
Work Class			M4
(2).2: HKDD -- Double Rail Type : Part 2
Model			HKDD1004	HKDD1504	HKDD2004
Capacity(T)			10T	15T	20T
Lift Height(m)			9m|12m	9m|12m	9m|12m
Hoist	Speed (m/min)	50Hz	5	2.5	2.5
		60Hz	6	3	3
	Motor Power(Kw)	50Hz	11	13	15
		60Hz	11	13	15
	Rotation Speed		(1)50Hz:1380 r/min ; (2)60Hz :1656 r/min ;
	Motor	Current	22	27.5	30.5
	Motor	Poles	4	4	4
Double Rail Trolley	Speed (m/min)	50Hz	14|21	14|21	14|21
		60Hz	16|25	16|25	16|25
	Motor Power(Kw)	50Hz	0.75*2	1.1*2	1.1*2
		60Hz	0.75*2	1.1*2	1.1*2
	Rotation Speed		(1)50Hz:1380 r/min ; (2)60Hz :1656 r/min ;
	Motor	Current	2.2	2	3
	Motor	Poles	4	4	4
Wire Rope	Rope Fall No.(Pcs.)		2/4	1/4	1/4
	Composition		6x(37)+FC	6x(37)+FC	6x(37)+FC
	Dia.(mm)		Ø16	Ø18	Ø20
Voltage/Phase/Frequency		200V--600V/3Phase/50Hz or 60Hz ;Hand Control Voltage:36V/48V/110V;
Work Class		M4

Notes **: More Complete Technical Parameters & Size Specification Catalogue , pls Contact us ,we will send to you our newest Completely Technical Datas by E-mail .

5..ELK Electric Wire Rope Hoists -- Factory Views & Certificates :

6..ELK Electric Wire Rope Hoists -- Packaging :

7..For Related Products Range :

1	ODM: Kaidao Company is the Professional Source Manufacturer ;
2	International Certificates: CE -- ISO -- SGS Approved;
3	Brand : ELK®
4	Factory : 5 Senior Professional Engineers with more than 20 years experiences ;
5	Factory Area : Total 6 Workshops ; 12000 M2
6	Annual Output Value:1290 0000 USD----2000 0000 USD ;
7	Monthly Output:3000--5000 Sets ;
8	Market Percentage: 70% for Export--World Market / 30% for Sale--Home Market;
9	Production Scope :
(1)	Electric Chain Hoist with (Slipping Clutch)	0.5T---------60T
(2)	Electric Wire Rope Hoist	0.5T---------32T
(3)	Crane Geared Motor with Buffer	0.25Kw-----3.75Kw
(4)	End Truck	0.5T----------50T
(5)	Crane Wheel Block	GWPW95--GWPW545
(6)	Electric/Manual Trolley	0.5T----------30T
(7)	Hoist Spare Parts:Remote Control-Overload Protector Etc.	0.5T----------60T
(8)	Crane Spare Parts:Power Rail-C Track-Cable Etc.	0.5T----------50T
(9)	Single/Double Girder Crane	0.5T----------50T
(10)	Chain Block	0.5T----------20T
(11)	Lever Block	0.5T----------9T

8..ELK Electric Wire Rope Hoists -- After-sale Services-- within 24 Hours:

(1)....Before--Sale Service :
01..Quality Control: Strictly Production Request base on signed contract ;
02..Delivery Time: Guarantee within contracted delivery time ;
03..Photos: Send photos to our customer after finish production and packing ;
04..Packing Details:Give complete packing size table to our customer;
05..Brand: Respect our customers' advice to use our customers' own brand & logo ;
06..Documents:Provide high efficiency service to post you all required customs clearance documents by DHL or TNT .

(2)....After--Sale Service :
01..Reply : Fast reply all your questions on line or by email or by telephone ;
02..Quality Problems:Our factory is responsible for any problems if it is resulted by our reasons (Such as give you free new parts to repair it or give enough some compensation cost to you) ;
03..Safe Operating: Pls remind your customers to respect our Operating Manual to operate our machine rightly, to guarantee Safe when operate our machine ;

9..ELK Electric Wire Rope Hoists --Factory Info & FAQ:
01.Are you manufacturer or trade Company?
--We are a factory founded in 2010 Year .
02.How about sample & MOQ policy?
--Welcome sample order. MOQ can be 1 set.
03.What is your lead time for your goods?
--Normally 15 days after confirmed order. 10 days could be available for some items in sufficient stock and standard requirements, and 30 days during new year and hot season ( Jan to March).
04.What should I provide when inquiry?
--The more information you provide, the accurate solution we can prepare for you!
A- Lifting capacity: Ton?
B- Lifting height:: m?
C- What is your: working environment?
D- What is Voltage--Phase--Frequency -- Hand Control Voltage : ?.
05.How about the allocations of ELK hoists?
--Except basic hoist, we also provide hoist with continuously variable transmission, overload limiter, thermal protector, slipping clutch and remote control as you required.
--------------------------------------------------------------------------------------------------------------------------------
